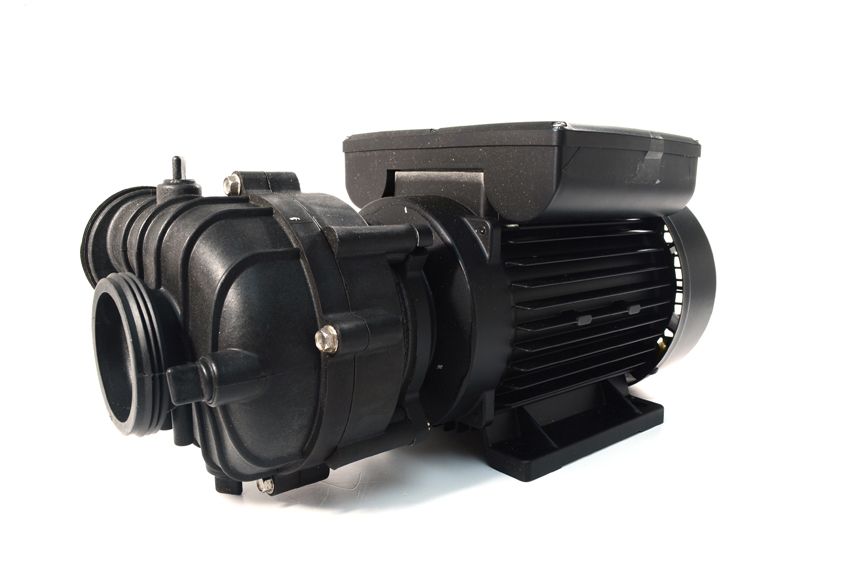

This is a common pump but must not be confused with the Vico ultrajet (see below)  which looks remarkably similiar, this type of pump has been used extensively in Dimension One Spas, all the options have a 2 inch (inlet) x 2 inch (outlet).

We have been replacing it for the Vico Ultrajet,which was mainly used in Hydropool spas. The  old Vico ultrajet pump was discontinued around 18 months ago.

There are 2 choices available dependant on the speed and the wet end dimensions you have.

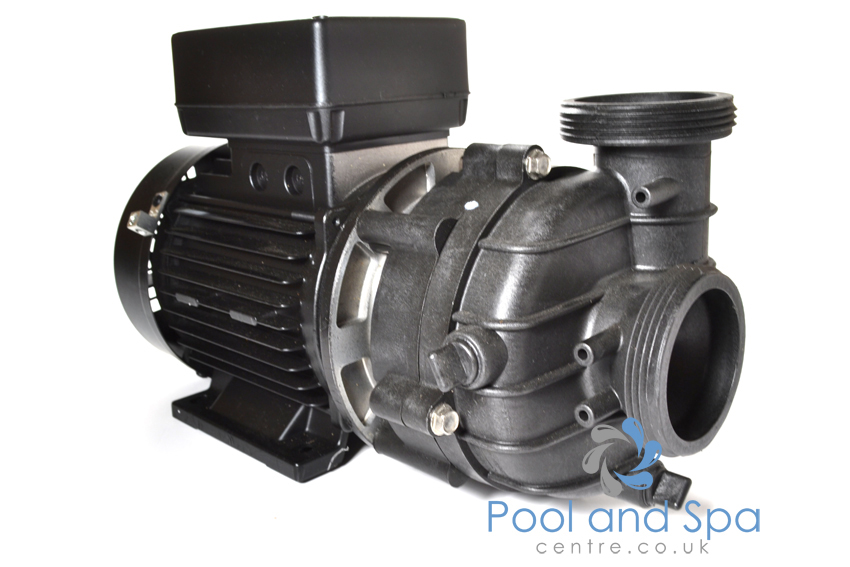

This is choice 1 - choice 2 is Vico Ultramax Pumps, you need to view the photo galley and measure up to ensure you get the best centre-to-centre for  the pipe couplings in the hot tub. This pump is shown on the right.

Please be aware the wet end comes in factory set position, however it can be rotated to whichever 90 degree position you need.

Common number found on these pumps are 1025002

In most cases you will find that the wet end  is the same but the motor may be made by a different company. This is its direct replacement.

	3.6 HP Single Speed Pump	3.6 HP Dual Speed Pump
Length:	370 mm	mm
Height:	228 mm	mm
Width:	165 mm (widest part)	mm

	3.6HP - Single Speed	3.6HP - Two Speed
Amps:	8.7	(low) /  (high)
Volts:	230	230
Hz:	50	50
HP:	2	(low) / (high)
Fittings:	2 x 2 inch	2 x 2 inch

This is the most common pump in the UK & Europe for Dimension One Spas / Vico/Ultrajet - Dual speed - 3hp pump. Used in Hydropool spas amongst many others including: Cal Spas, Sundance, Hawkeye, Some Leisure Bay Spas. PEUL2H or PUUL5C2.
