The smooth red bodied pump below is the USA Specification and has a high failure rate, particularly in Europe due to overheating problems.

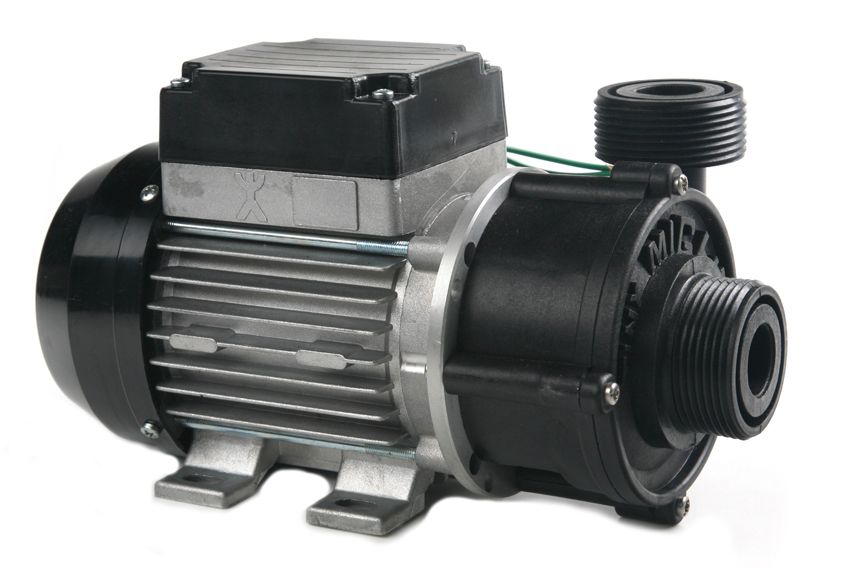

The new motor design above has a rear fan & a finned body to cool the pump whilst in operation. We and the manufacturer Waterway highly recommend it as the replacement to your existing pump.
It has exactly the same fittings as the red US pump, so is easily replaced in a couple of minutes, keep your old lead for swop over, the wiring diagram below makes it a pain free job.
Length: 250mm
Width: 120mm
Height: 150mm
Amps: 1.1-1.3
Volts: 230
Hz: 50
RPM: 2900
Motor KW: 0.2 HP: 0.28
Capacitor: 5uf
Fittings: 1 inch
It is commonly found on spas in the UK including Sierra, Southwest and Coast Mountain Spas.
The Tiny Might pump comes with 2 white wires which should be removed and replaced by your exising cable, the wiring diagram is as follows:
The new motor design above has a rear fan & a finned body to cool the pump whilst in operation. We and the manufacturer Waterway highly recommend it as the replacement to your existing pump.
It has exactly the same fittings as the red US pump, so is easily replaced in a couple of minutes, keep your old lead for swop over, the wiring diagram below makes it a pain free job.
Length: 250mm
Width: 120mm
Height: 150mm
Amps: 1.1-1.3
Volts: 230
Hz: 50
RPM: 2900
Motor KW: 0.2 HP: 0.28
Capacitor: 5uf
Fittings: 1 inch
It is commonly found on spas in the UK including Sierra, Southwest and Coast Mountain Spas.
The Tiny Might pump comes with 2 white wires which should be removed and replaced by your exising cable, the wiring diagram is as follows:
You may need to know what your existing coloured wires represent, we must stress always consult a professional if you are in any doubt.
UK & USA Conversion tables
|
US |
UK |
|
|
Black |
Brown |
Live |
|
White |
Blue |
Neutral |
|
Green |
Green/Yellow |
Earth |
If you have any concerns or problems please contact us on 01746 710475.
