SKU
G908

AG Pump Range

A complete selection of the AG family of swimming pool pumps - ideal for small to medium-sized swimming pools, spas and small recirculation systems like ponds and waterfalls.
Grouped product items
Product Name SKU MPN Price Qty Stock
AG Pump AG8-2DC AG Pump AG8-2DC 1233 AG8-2DC
£323.64 £269.70
- +
Available for
Back Order
AG Pump AG10-2DC AG Pump AG10-2DC 1234 AG10-2DC
£325.40 £271.17
- +
Available for
Back Order
AG Pump AG14-2DC AG Pump AG14-2DC 1235 AG14-2DC
£327.16 £272.63
- +
Available for
Back Order
AG Pump AG16-2DC AG Pump AG16-2DC 1236 AG16-2DC
£329.82 £274.85
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

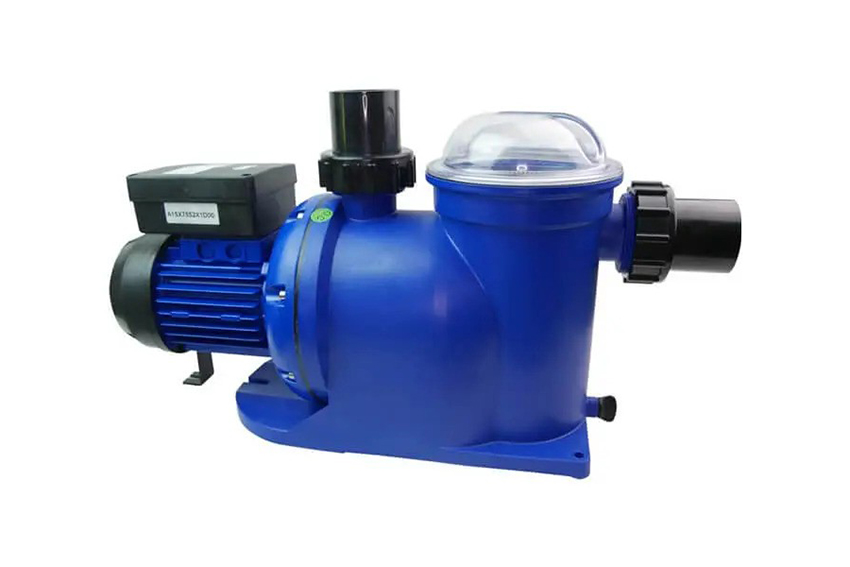

The Argonaut baby brother, AG pump has been designed and engineered in the same way. A superior build quality ensures performance durability and reliability.

The mechanical seal made with AISI 316 Stainless Steel is suitable for a wide range of applications including chlorine, bromine, iodine and even salt water.

All IP55 rated motors include a high-grade Stainless Steel shaft, ranging from 0.25hp (0.19kW) to 0.66hp (0.49kW) The AG truly is an exceptional choice for your smaller applications.

The AG pump is a reliable, compact pump. The AG pump is a superior water supplier in gravity-fed systems and runs very silent. Therefore it will be ideal on above-ground spa systems or similar.

Please note these pumps do not come with unions and tailpieces

Polypropylene tank
The polypropylene tank is suitable for a wide range of applications including chlorine, bromine, iodine and sea water (if flushed through with fresh water on shut down).



  • BSP 2 1/2" thread
  • Clear PC tank cover and large strainer basket
  • Ingress protection: IPx5
  • Low power consumption
  • Maintenance friendly
  • PP tank, high chemical resistance
  • Self priming up to 1.8 m
  • Silent running
  • Clear PC tank cover and large strainer basket
  • Stainless steel AISI 316 shaft
  • Material: Motor cast aluminium, tank PP
  • Maintenance friendly

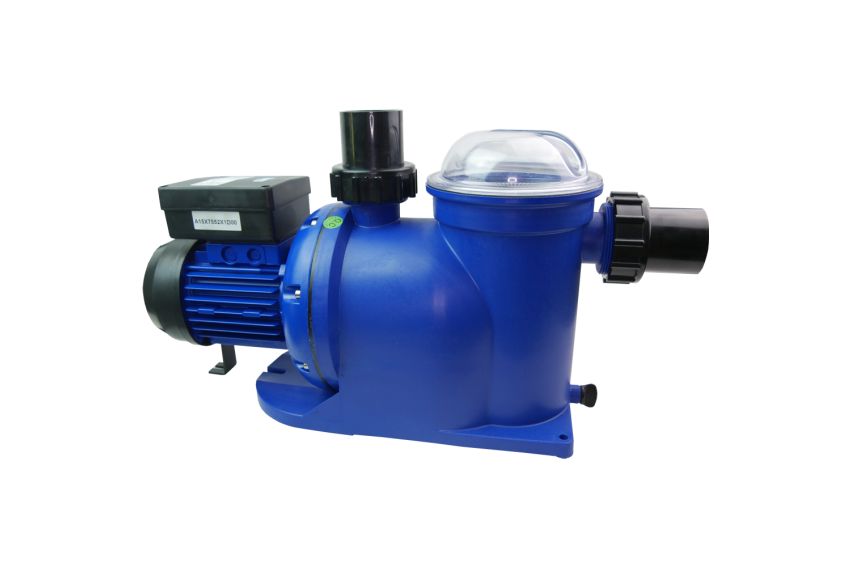

AG Pump AG8

Article No. Power (P1) Performance (P2) V/Hz Phase Q(max) H(max)
AG8-2DC 0.29kW/0.39HP 0.19kW/0.25HP 230V/50Hz 1 9.5 m3/h 8 m

AG Pump AG10

Article No. Power (P1) Performance (P2) V/Hz Phase Q(max) H(max)
AG10-2DC 0.36kW/0.48HP 0.25kW/0.33HP 230V/50Hz 1 11 m3/h 9.5 m

AG Pump AG14

Article No. Power (P1) Performance (P2) V/Hz Phase Q(max) H(max)
AG14-2DC 0.49kW/0.66HP 0.37kW/0.50HP 230V/50Hz 1 14.5 m3/h 11.5 m

AG Pump AG16

Article No. Power (P1) Performance (P2) V/Hz Phase Q(max) H(max)
AG16-2DC 0.67kW/0.90HP 0.49kW/0.66HP 230V/50Hz 1 16.5 m3/h 13 m


Designed for small to medium-sized swimming pools, spas and small recirculation systems like ponds and waterfalls.



Icon Label Type Size Download
pdf AG manual pdf 133.9 KB Download
