Astral Boise Self-Priming Pump
Astral Boise Self-Priming Pump
In-stock orders dispatched: in 11hrs 32mins
Astral Boise Self-Priming Pump
- The Boise pump is designed to work under a vast range of conditions.
- Whatever the pool type, it always delivers the required flow rate and pressure.
- The Boise pump is built for ease of handling.
- It has a see-through lid for easy inspection and a large strainer to extend time between cleanings.
- The motor materials are rustproof; the motor shaft is made from stainless steel and the sealed bearings never need lubrication.
- The thermoplastic housing withstands extreme heat and corrosion.

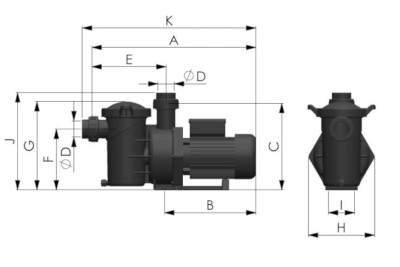

| Type | Code | Model | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | D (mm) | J (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | 71671 | 033 | 447 | 225 | 269 | 230,5 | 189 | 274 | 205 | 82 | 50 | 297 | 472 |
| Single Phase | 71672 | 050 | 470 | 248 | 269 | 230,5 | 189 | 274 | 205 | 82 | 50 | 297 | 495 |
| Single Phase | 71673 | 075 | 490 | 268 | 269 | 230,5 | 189 | 274 | 205 | 82 | 50 | 297 | 515 |
| Single Phase | 71674 | 100 | 490 | 268 | 269 | 230,5 | 189 | 274 | 205 | 82 | 50 | 297 | 515 |
| Single Phase | 71675 | 125 | 500 | 278 | 269 | 230,5 | 189 | 274 | 205 | 82 | 50 | 297 | 525 |

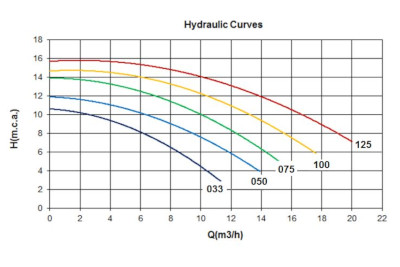

Flow rates in l/h at 6 mwc for 0.33 HP, 8 mwc for 0.5 HP, 10 mwc for 0.75 HP and 12 mwc for rest of range.
| Code | Type | Model | Head m.w.c. | Flow m3/h |
|---|---|---|---|---|
| 71671 | 230V 50HZ Single Phase | 033 | 6 | 8,5 |
| 71672 | 230V 50HZ Single Phase | 050 | 8 | 10,5 |
| 71673 | 230V 50HZ Single Phase | 075 | 10 | 10,3 |
| 71674 | 230V 50HZ Single Phase | 100 | 12 | 10,5 |
| 71675 | 230V 50HZ Single Phase | 125 | 12 | 13,9 |
