Astral Hydrospin & Hydrospin Compact Pre-Filter

Astral Hydrospin & Hydrospin Compact Pre-Filter
Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Hydrospin Astral Hydrospin 36441 45289
£751.37 £626.14
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

Hydrocyclone pre-filters can be fitted to filtration systems in both new and old installations.



HydroSpin Compact

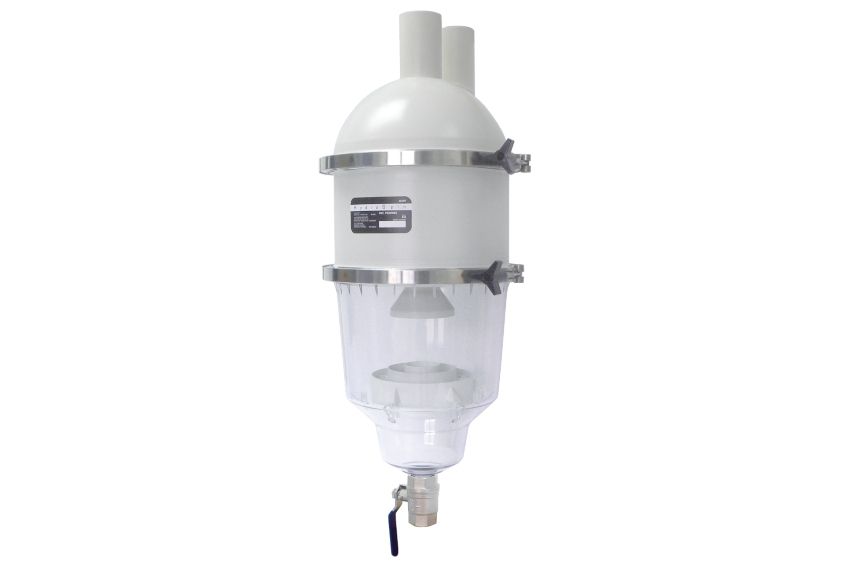

HYDROSPIN

  • Save 50% of the water used to clean filters Hydrocyclone pre-filter cleaning device that can be fitted to filtration systems in both new and old installations.
  • It is able to treat flows of 30m2/h with a maximum working pressure of 2.5 bars.
  • It is fitted between the pump and the filter and separates out solids of up to 40 micras, thus reducing by half the amount of water consumed for cleaning the filtration system.
  • HydroSpin has a device for collecting solids with three separate areas (settling, clarifying and clouding).
  • It can be cleaned using just five litres of water without having to stop the pump.
  • Considerable reduction in filter cleaning operations.
  • Low load losses that make it possible to install it without the need to change the existing pump.
  • Can be fitted to the ground with the accessories provided or the wall with DN300 flanges.
  • Standard Ø63 mm connections for water inflow and outflow and Ø32 mm for the evacuation of dirt.
  • To install Hydrospin in the wall, the code 47158 is needed as well.



HYDROSPIN Compact

  • Prefilter designed for both new and existing installations
  • Reduce water consumption of any kind of filters.
  • Reduce washing frequency of any kind of filter.
  • Compact and flexible installation.
  • Recommended for flow rates from3 to16,5 m3/h,
  • Maximum working Pressure: 2,5 bar.
  • 2 1/4” threaded input and output connections
  • ¾” AISI 316 debris release valve
  • Wall / floor bracket included.
  • Advantages:
  • Watersavings. 50% of water savings when combined with sand filters.
  • Comfort. Lengthen the time between consecutive sand filter backwashes.
  • Spacesaving. The smaller and most versatile hydrocyclone for pools in the market
  • Installation flexibility. It can be installed on the floor or wall, and input / output can be oriented to suit any situation and space.
  • Sturdiness. No moving parts to break or wear out with use.


  45289 53743
Working pressure (bar) 2,5 2,5
Connections Ø 63 Ø 50 thread 2¼"
Purge connection 1" ¾
Min. flow rate (m³/h) 5 3
Max. flow rate (m³/h) 30 16.5
Water for cleaning (l) 5 15
Separate solids (micron) 40 60
Floor Support INCLUDED INCLUDED
Wall support Accessory 47158 Included
Icon Label Type Size Download
pdf Astral Hydrospin Compact 53743 Installation Manual pdf 883.6 KB Download
pdf Astral Hydrospin Compact 53743 Technical Information pdf 538.4 KB Download
pdf Astral Hydrospin 45289 Certificate pdf 180.7 KB Download
pdf Astral Hydrospin 45289 Technical Information pdf 95.1 KB Download
pdf Astral Hydrospin 45289 Dimensions pdf 595.8 KB Download
pdf Astral Hydrospin 45289 Installation Manual pdf 973.6 KB Download
