SKU
G9800

Astral Laminated Artic Filters 1.2m Bed Depth

Astral Laminated Artic Filters 1.2m Bed Depth
Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Laminated Artic Filters 1.2m Bed Depth Ø 650 mm connection 1½" Astral Laminated Artic Filters 1.2m Bed Depth Ø 650 mm connection 1½" 36522 36053
£2,734.94 £2,279.12
- +
Available for
Back Order
Astral Laminated Artic Filters 1.2m Bed Depth Ø 800 mm connection 2" Astral Laminated Artic Filters 1.2m Bed Depth Ø 800 mm connection 2" 36523 36054
£3,299.65 £2,749.71
- +
Available for
Back Order
Astral Laminated Artic Filters 1.2m Bed Depth Ø 950 mm connection 2½" Astral Laminated Artic Filters 1.2m Bed Depth Ø 950 mm connection 2½" 36524 41373
£3,997.86 £3,331.55
- +
Available for
Back Order
Astral Laminated Artic Filters 1.2m Bed Depth Ø 1050 mm connection 3" Astral Laminated Artic Filters 1.2m Bed Depth Ø 1050 mm connection 3" 36525 36055
£4,737.88 £3,948.23
- +
Available for
Back Order
Astral Laminated Artic Filters 1.2m Bed Depth Ø 1200 mm connection 4" Astral Laminated Artic Filters 1.2m Bed Depth Ø 1200 mm connection 4" 36526 36056
£5,384.81 £4,487.34
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

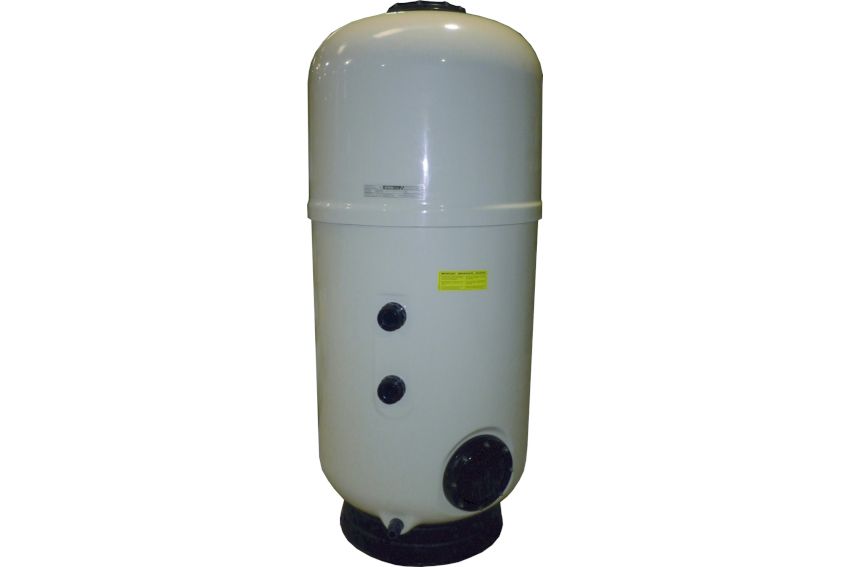

Range of high-capacity retention filters with optimal backwash performance. Manufactured in polyester with an external gel-coat-finish. Body of just two parts; ivory. Maximum working temperature of 50°C. Internal parts made from PVC plastic. Antivortex. Ø 400 lid to remove sand from bottom part of filter (optional) in Ø 1050 and Ø 1200 versions. Ø 650, 800, 950, 1050 and 1200 filters available with collector arms or nozzle plate. Compatible with sand and glass, among other.

  • Laminated filter in polyester with fibreglass totally anticorrosive.
  • High performance filter with filtration bed height of 1,2 m.
  • Maximum working pressure: 2,5 bar.
  • Collector arms system made of PP with 0,3 mm slots, uniformly distributed in order to achieve a correct circulation of the water.
  • D200 mm filter lid in injected plastic for models of diameter 650, 800 and 950 mm, and D400 mm lid for models of diameter 1050 and 1200 mm, with AISI-316 stainless steel screws.
  • Gaskets in EPDM.
  • Equipped with pressure gauge in filter lid, manual water and air purge, and D200 mm sand discharge.
  • Filter base made of reinforced PP.
  • Internal piping and fi ttings in PVC.
  • ACME threaded connections for models of diameter 650, 800 and 950 mm. Flange connections for models of diameter 1050 and 1200 mm. Standard connections are in metric system. Other standards could also be available by request.
  • Maximum water temperature: 50 ºC.
  • Very important: please notify if the installation will use sea water, if the backwash is done with air or with air/water and if the installation is outside.
  • OPTIONS
  • Interior coating of vinylester resistant to ozone, up to 0,4 ppm for a temperature of 40ºC.
  • Nozzle plate system: nozzle plate made of polyester reinforced with fibreglass, with nozzles made of PP with 0,5 mm slots, uniformly distributed with a density of 60 units/m2.
  • Eastar copolyester sight glass.
  • D400 mm manhole in models of 1050 and 1200 mm diameter.
  36053 36054 41373 36055 36056
Ø D (mm) 680 825 970 1090 1255
H (mm) 1900 1950 1960 2145 2170
M (mm) 125 230 270 270 270
N (mm) 730 670 665 655 655
L (mm) 1200 1200 1200 1200 1200
C (mm) 300 300 300 300 300
P (mm) 490 625 705 775 940
T (mm) 200 200 200 400 400
Connections 1½" 2" 2½" 3" 4"
Flow rate (m³/h) 16,5 25 35 43 56,5
Filtration area (m²) 0,33 0,50 0,70 0,86 1,13
Sand load (kg) 470 660 1015 1240 1665
Gravel load (kg) 100 165 260 320 410
Grade 1 glass load (57011) (kg) 396 572 663 811 1079
Grade 2 glass load (57012) (kg) - - 216 265 352
Grade 2 glass load (57012) (kg) 107 154 238 291 388
Maximum pressure (kg/cm²) 2,5 2,5 2,5 2,5 2,5
Net weight (kg) 75 90 131 135 210
Water drain 1" 1" 1" 2½" 2½"
Injection-moulded plastic lid Ø200 Ø200 Ø200 Ø400 Ø400
