SKU
G9793

Astral Laminated Atlas Filter

Astral Laminated Atlas Filter
Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Laminated Atlas Filter Ø 500 mm outlet 1½" Astral Laminated Atlas Filter Ø 500 mm outlet 1½" 36467 36596
£1,493.29 £1,244.41
- +
Available for
Back Order
Astral Laminated Atlas Filter Ø 600 mm outlet 1½" Astral Laminated Atlas Filter Ø 600 mm outlet 1½" 36468 36597
£1,603.16 £1,335.97
- +
Available for
Back Order
Astral Laminated Atlas Filter Ø 750 mm outlet 2" Astral Laminated Atlas Filter Ø 750 mm outlet 2" 36469 36598
£2,277.74 £1,898.12
- +
Available for
Back Order
Astral Laminated Atlas Filter Ø 900 mm outlet 2½" (Does not include multiport) Astral Laminated Atlas Filter Ø 900 mm outlet 2½" (Does not include multiport) 36470 36599
£2,870.81 £2,392.34
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

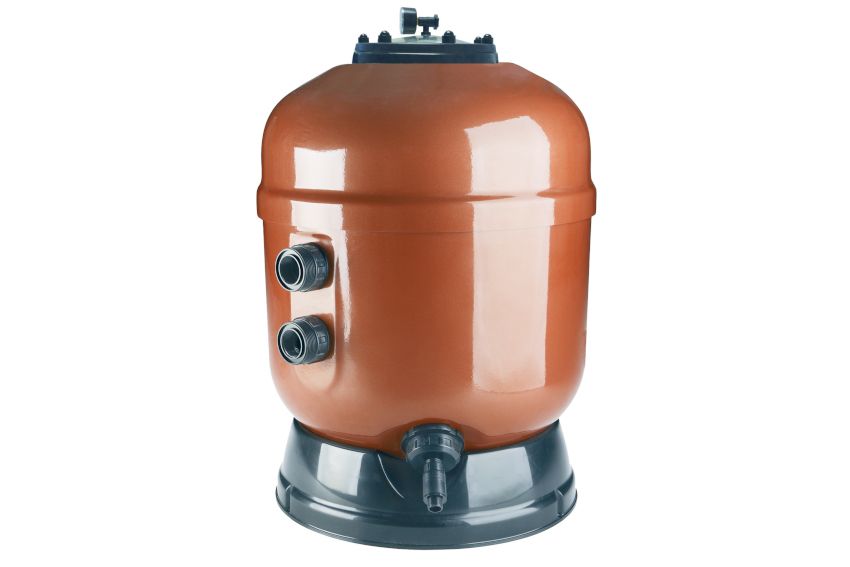

Reinforced polyester sand filter

  • Made of polyester resin and fibreglass.
  • Excellent finish with gel-coat colour RAL 8029.
  • The filter has been designed with higher coefficient of security, to guarantee a perfect operation.
  • The union of the two bodies of the filter is carried out through a seal specially reinforced with fibreglass and polyester resin.
  • Large diameter plastic lid.
  • Cap to make the sand discharge into the filter easier.
  • Fitted with 1" collector arms and diffuser made fro plasticised PVC.
  • Interior pipe with tubes pf PN-16.
  • Sand purge of 2½".
  • Fitted with pressure guage, air purge and manual water drain.
  • Connections to multiport valve with six positions: filter, backwash, rinse,recirculate, waste and closed.
  • AstralPool innovation: The filter has a security valve to avoid any over-pressure.
  • Maximum working pressure of 2.5 Kg/cm².
Code A (mm) B (mm) D (mm) H (mm) M (mm) N (mm)
36596 400 120 545 830 125 300
36597 480 145 640 905 125 325
36598 550 165 790 1050 230 310
36599 630 190 940 1185 270 410
Code 36596 36597 36598 36599
Ø Filter mm 500 600 750 900
Connections 1½" 1½" 2" 2½"
Filtering surface (m²) 0,19 0,30 0,40 0,64
Filtering Velocity (m³/hm²) 50 50 50 50
Flow (m³/h) 9.5 15 22 30
Working Pressure (bar) 2.5 2.5 2.5 2.5
Sand (kg) 120 190 360 580
Net Weight (kg) 20 25 33 51
Icon Label Type Size Download
pdf Astral Laminated Atlas Filter Dimensions pdf 4 MB Download
pdf Astral Laminated Atlas Filter Certificate pdf 1 MB Download
pdf Astral Laminated Atlas Filter Generic Manual Guide pdf 1.7 MB Download
pdf Astral Laminated Atlas Filter Manual Guide pdf 1.2 MB Download
pdf Astral Laminated Atlas Filter Technical Information pdf 5.2 MB Download
pdf Astral Laminated Atlas Filter Warranty pdf 261.8 KB Download
