Astral Laminated Europe Pro-Pro Long Filters
Astral Laminated Europe Pro-Pro Long Filters
In-stock orders dispatched: in 22hrs 46mins
Astral Laminated Europe Pro-Pro Long Filters
Filters manufactured in fibreglass and polyester resin Complies with filtration requirements as per standard EN 16713-1.
- Filter colour (Ral5015)
- ¼" purge valve
- 2½" sand discharge
- Polyester or methacrylate cover with screws.
- Diameter of top access: 285 mm.
- Maximum pressure: 2.5 bar.

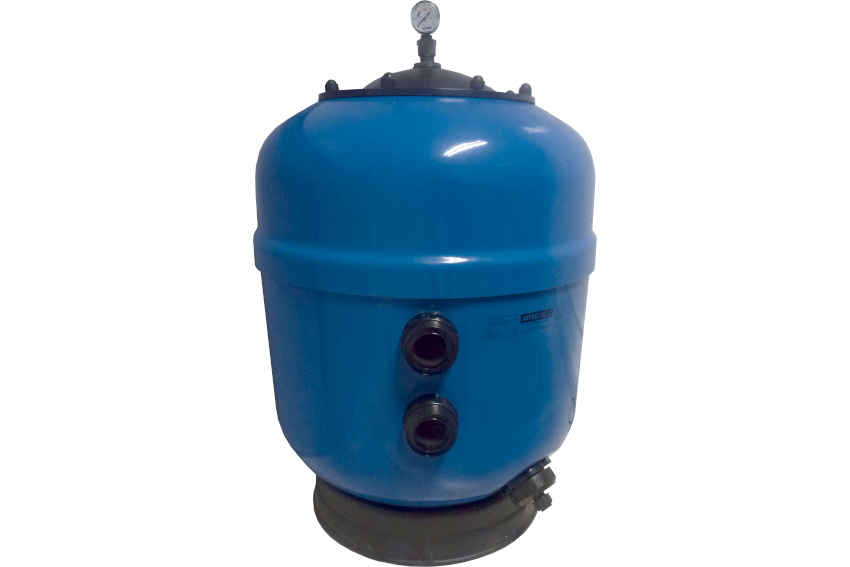

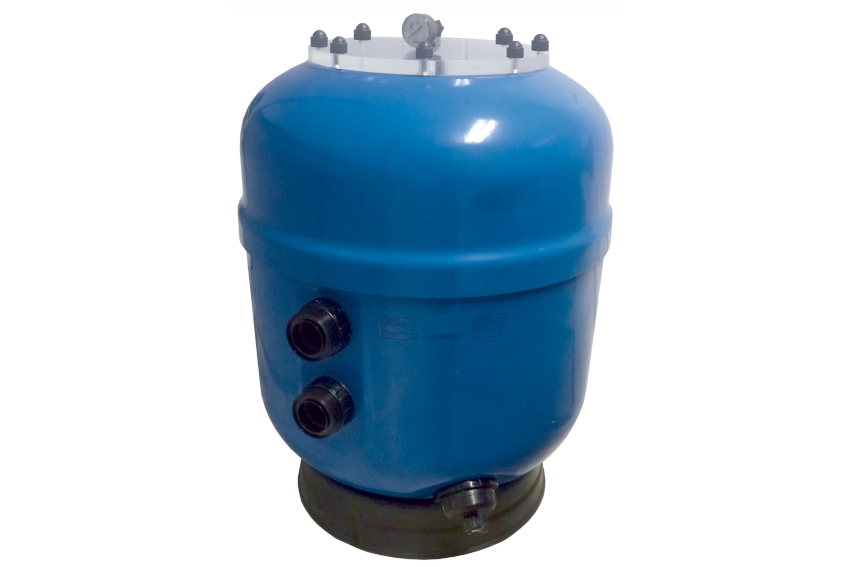

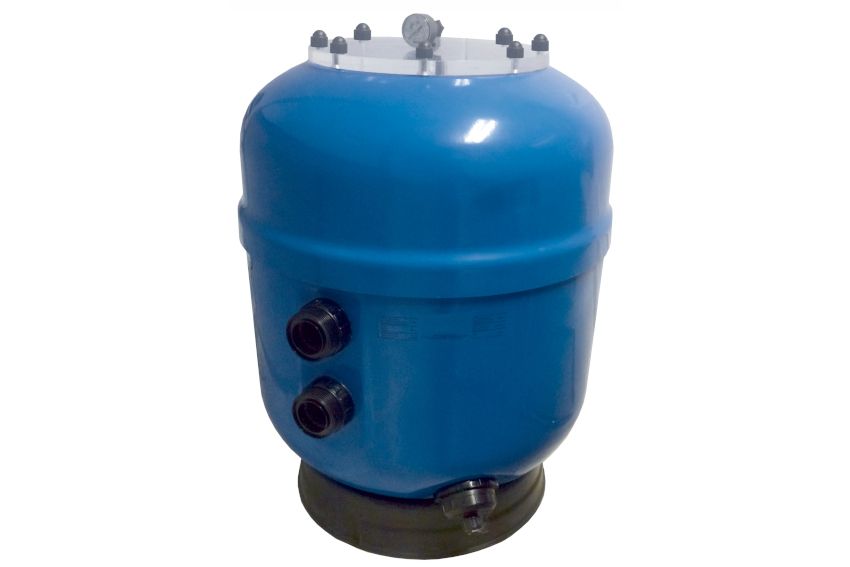

Pro Version
With Methacrylate cover | 64990 | 64991 | 64992 | 64993 |
---|---|---|---|---|
With Polyester cover | 64986 | 64987 | 64988 | 64989 |
Ø D (mm) | 500 | 600 | 750 | 900 |
Connection | 1½" | 2" | 2" | 2½" |
Selector valve code | 00599 | 28476 | 28512 | 24837 |
Filtration surface area (m²) | 0.19 | 0.3 | 0.44 | 0.64 |
Filtration velocity (m³/h/m²) | 50 | 50 | 50 | 50 |
Flow (m³/h) at 50 m³/h/m² | 9.5 | 15 | 22 | 30 |
Maximum pressure (kg/cm²) | 2.5 | 2.5 | 2.5 | 2.5 |
Sand load (kg) | 120 | 190 | 360 | 580 |
Grade 1 glass load (57011) (kg) | 84 | 133 | 252 | 406 |
Grade 2 glass load (57012) (kg) | 23 | 36 | 68 | 110 |
Net weight (kg) | 15 | 20 | 25 | 46 |
Depth of filter bed (mm) | 390 | 445 | 530 | 645 |

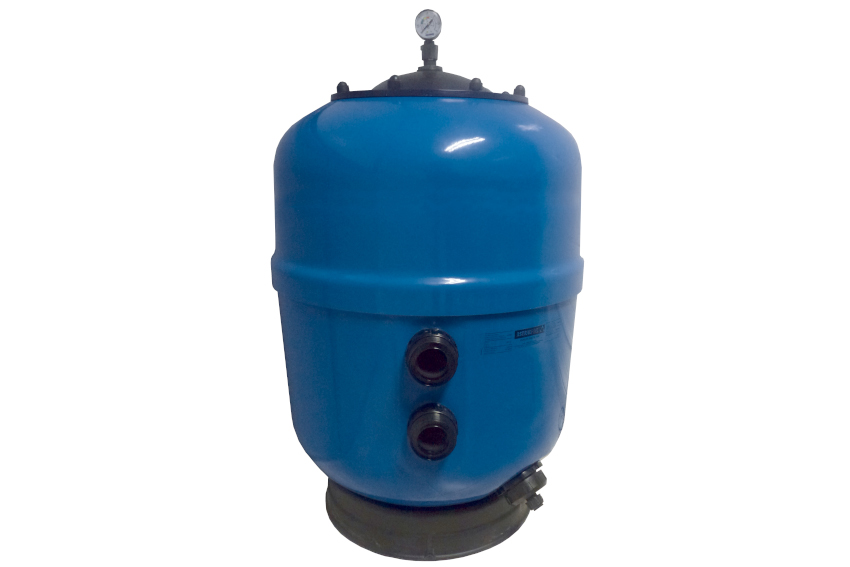

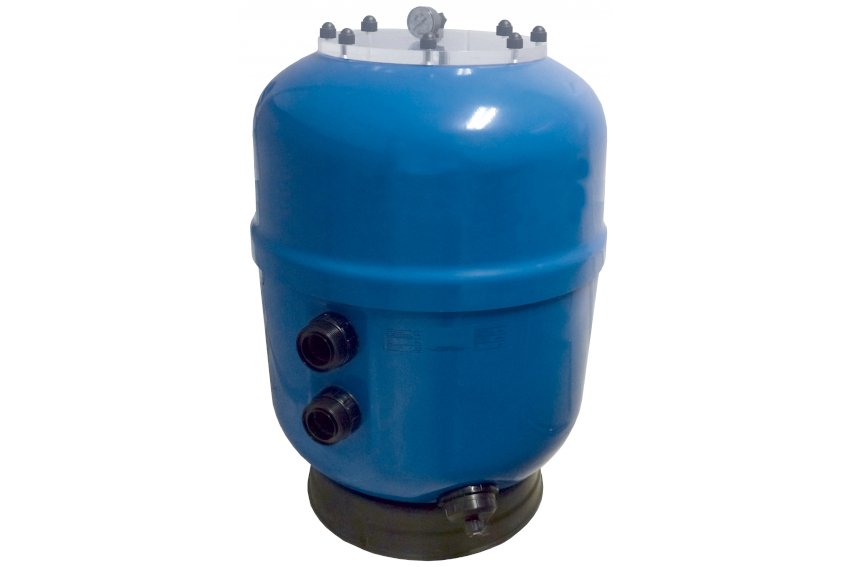

Pro Long Version
With Methacrylate cover | 64998 | 64999 | 65000 | 65002 |
---|---|---|---|---|
With Polyester cover | 64994 | 64995 | 64996 | 64667 |
Ø D (mm) | 500 | 600 | 750 | 900 |
Connection | 1½" | 2" | 2" | 2½" |
Selector valve code | 00599 | 28476 | 28512 | 24837 |
Filtration surface area (m²) | 0.19 | 0.3 | 0.44 | 0.64 |
Filtration velocity (m³/h/m²) | 50 | 50 | 50 | 50 |
Flow (m³/h) at 50 m³/h/m² | 9.5 | 15 | 22 | 30 |
Maximum pressure (kg/cm²) | 2.5 | 2.5 | 2.5 | 2.5 |
Sand load (kg) | 155 | 240 | 430 | 615 |
Grade 1 glass load (57011) (kg) | 110 | 170 | 305 | 435 |
Grade 2 glass load (57012) (kg) | 27 | 44 | 77 | 112 |
Net weight (kg) | 20 | 25 | 33 | 51 |
Depth of filter bed (mm) | 520 | 565 | 620 | 680 |
