SKU
G9795

Astral Laminated Vesubio Filter

Astral Laminated Vesubio Filter

Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Laminated Vesubio Filter Top mount version - 22000 l/h Ø 750 mm outlet 63 mm Astral Laminated Vesubio Filter Top mount version - 22000 l/h Ø 750 mm outlet 63 mm 36492 33850
£1,366.88 £1,139.07
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

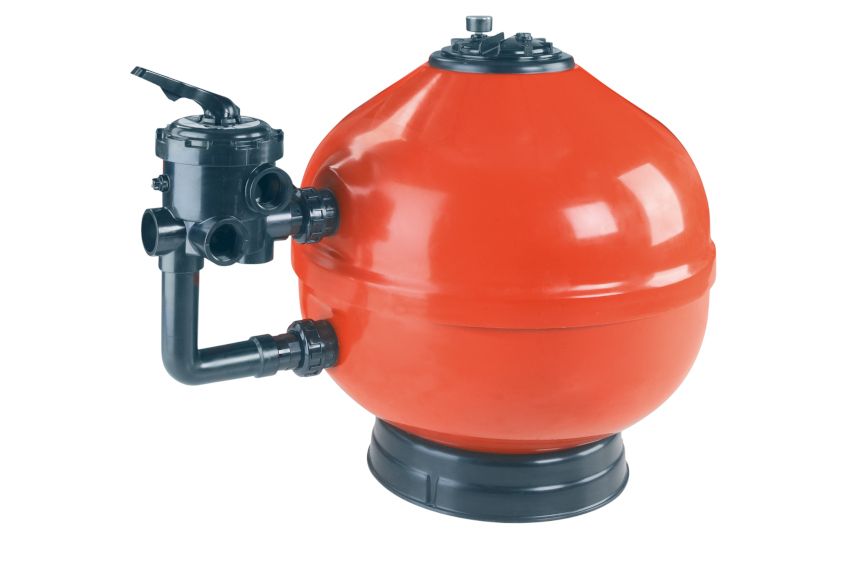

main product photo

Astral Laminated Vesubio Filter

Features
  • Made of polyester resins and fibreglass.
  • Excellent finish.
  • Filter colour red.
  • Lid with screws.
  • Fitted with 1" collector arms and diffuser.
  • Fitted with pressure gauge, manual water drain, automatic and manual air vent.
  • Connections to multiport valve with six positions: filter, backwash, rinse, recirculate, waste and closed.
  • Maximum working pressure of 2,5 Kg/cm².
Specifications

Top Mount Version

  32431 32432 33850
Ø Filter mm 500 600 750
A mm 690 790 837
B mm 750 850 913
C mm 920 1020 1124
D mm 400 400 490
Filtration area (m²) 0.19 0.30 0.44
Connections 1½" 1½" 2"
Flow rate m³/h at 50 m³/h/m² 9 14 22
Pool (volume) m³ (8 hours) 72 112 176
Sand kg (0.4-0.8 mm) 95 148 245



Side Mount Version

  19775 19776 19777
Ø Filter mm 500 600 750
A mm 305 325 300
B mm 125 125 230
C mm 765 865 895
D mm 400 400 490
Filtration area (m²) 0.196 0.283 0.442
Connections 1½" 1½" 2"
Flow rate m³/h at 50 m³/h/m² 9 14 22
Pool (volume) m³ (8 hours) 72 112 176
Sand kg (0.4-0.8 mm) 95 148 245
Associated Documents
Icon Label Type Size Download
pdf Astral Vesubio Filter Dimensions pdf 67.6 KB Download
pdf Astral Vesubio Filter Certificate pdf 38.4 KB Download
pdf Astral Vesubio Filter Industrial Manual Guide pdf 1.8 MB Download
pdf Astral Vesubio Filter Technical Information pdf 63.7 KB Download
pdf Astral Laminated Atlas Filter Generic Manual Guide pdf 1.7 MB Download
