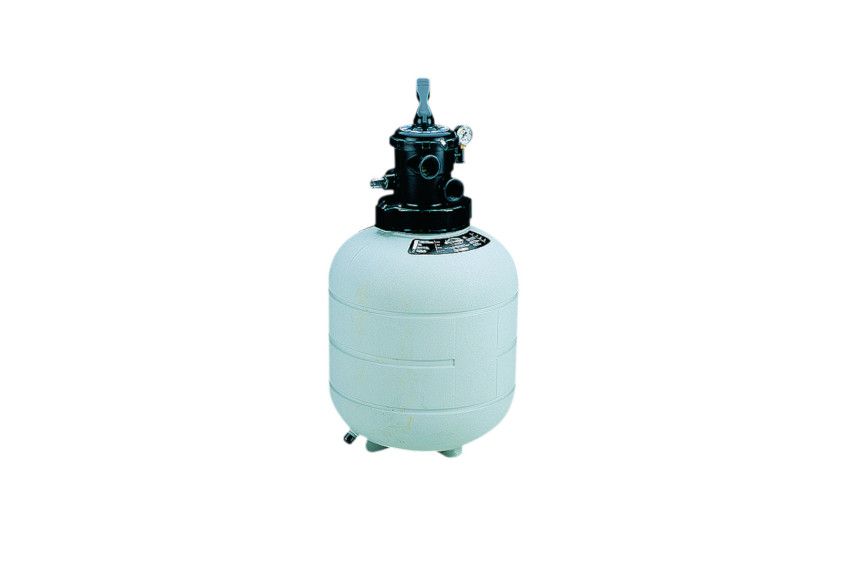

Astral Millennium Filter with Top & Side Mounted Valve
Astral Millennium Filter with Top & Side Mounted Valve
In-stock orders dispatched: in 12hrs 16mins
One piece blow-moulded filters made in plastic with threaded lif, multiport valve, pressure gauge and manual air vent and water purge.
Ivory colour.
Maximum working pressure: 2 kg/cm2.
CHARACTERISTICS:
- Available with side mount or top mount, to adapt to the particular characteristics and available space at each pool site.
- Filter body manufactured of chemical and weatherresistant, inalterable plastic.
- Designed for outdoor use.
- Standard equipment with next-generation 1 1/2″, 6+1 multiport valve from AstralPool with bayonet closure for filter, backwash, rinse, recirculate, waste, close, and winter operations (all inlets and outlets are connected).
- Transparent lid for easier visual inspection and access to the inside of the filter in side-mount valves.
- Top diffuser to ensure good water distribution above the filtering bed. – Inner 1 1/2″ connectors for continuous operation.
- Manual bleeder valve for purging air inside the filter, if necessary.
- Built-in manual bleeder valve for water in the filter body, for easy drainage of the filter without losing sand.
- Built-in collector at the bottom ensures balanced flow and filter backwash.
- Pressure gauge to control filter backwash.
ADVANTAGES:
- Excellent performance and reliability: Millennium filters are designed to meet the needs of the most demanding customer and can filter from 5.500 l/h to 12,000 l/h at a filtering rate of 50 m3/h/m2.
- They are also fitted with an AstralPool multiport valve with 6+1 positions for filter, backwash, rinse, recirculate, waste, and close.
- In fact, this reliable valve is used on most AstralPool filters.
MONOBLOC:
For easier installation of the filtering system, Millennium filters are also available as monoblocs, i.e., the filters are assembled on a base with a latest generation Sena self-priming pump and all the necessary pipe fittings.
- Ergonomic base constructed of weather resistant plastic.
- Optimisation of size, performance, and aesthetics.
- Components designed for easy assembly and precise fitting.
- Millennium monoblocs include the Sena pump as standard equipment for optimal performance and cost-efficiency.
- Packaging contains pre-assembled unit for easier assembly and minimisation of package volume.
A-Top Mounted Filter
| 27811 | 22407 | 22408 | 22409 | 28253 | |
|---|---|---|---|---|---|
| Ø D (mm) | 380 | 430 | 480 | 560 | 660 |
| H (mm) | 820 | 835 | 870 | 945 | 1050 |
| M (mm) | 650 | 665 | 700 | 775 | 880 |
| N (mm) | 585 | 600 | 635 | 710 | 815 |
| Length L (mm) | - | - | - | - | - |
| Connections | 1½" | 1½" | 1½" | 1½" | 1½" |
| Flow rate (m³) | 5.5 | 7 | 9 | 12 | 17 |
| Pool volume approx. (m³) | up to 40 | 40-50 | 50-75 | 75-100 | 140 |
| Sand load (kg) | ± 45 | ± 70 | ± 80 | ± 110 | ± 180 |
| Grade 1 glass load (57011) (kg) | 28 | 42 | 60 | 95 | 175 |
| Grade 2 glass load (57012) (kg) | 8 | 11 | 16 | 25 | 47 |
| Maximum pressure (kg/cm²) | 2.5 | 2.5 | 2.5 | 2 | 2 |
| Net weight (kg) | 12 | 13.5 | 15 | 16.5 | 24 |
| Package volume (m³) | 0.17 | 0.17 | 0.24 | 0.35 | 0.52 |
B-Side Mounted Filter
| 27809 | 25296 | 25297 | 25298 | 28252 | |
|---|---|---|---|---|---|
| Ø D (mm) | 380 | 430 | 480 | 560 | 660 |
| H (mm) | 615 | 655 | 682 | 770 | 900 |
| M (mm) | 225 | 265 | 292 | 380 | 510 |
| N (mm) | 100 | 140 | 167 | 255 | 385 |
| Length L (mm) | - | - | - | - | - |
| Connections | 1½" | 1½" | 1½" | 1½" | 1½" |
| Flow rate (m³) | 5.5 | 7 | 9 | 12 | 17 |
| Pool volume approx. (m³) | up to 40 | 40-50 | 50-75 | 75-100 | 140 |
| Sand load (kg) | ± 45 | ± 70 | ± 80 | ± 110 | ± 180 |
| Grade 1 glass load (57011) (kg) | 28 | 42 | 60 | 95 | 175 |
| Grade 2 glass load (57012) (kg) | 8 | 11 | 16 | 25 | 47 |
| Maximum pressure (kg/cm²) | 2.5 | 2.5 | 2.5 | 2 | 2 |
| Net weight (kg) | 10 | 12 | 15 | 17.5 | 28 |
| Package volume (m³) | 0.13 | 0.13 | 0.18 | 0.26 | 0.42 |
