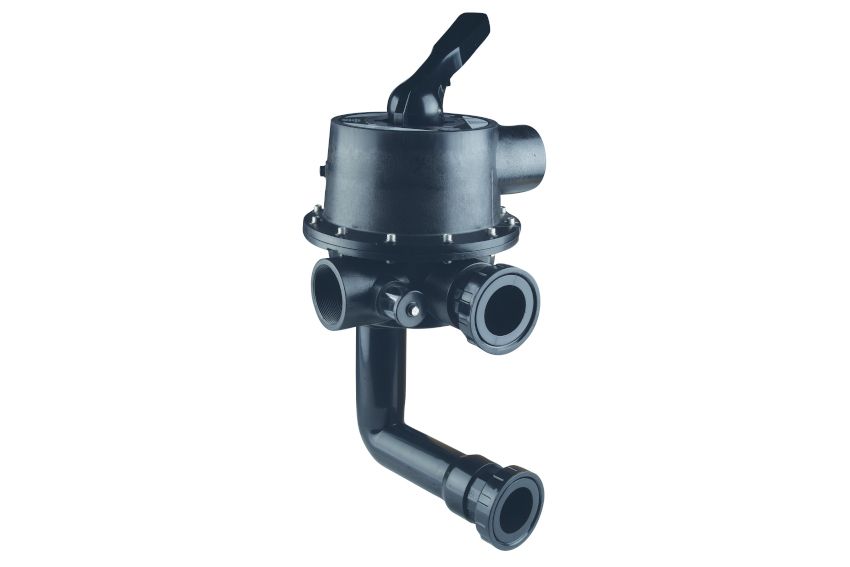

Astral Multiport Valve - Magnum

2½" Multiport Valve with Filter Connections - Magnum

Specially designed to support high working pressure and connection to filters with larger measurements which require special connections.

Characteristics:

• Body and cover in ABS and glass fibre; handle in ABS; distributor in PPO; gaskets in EPDM and metallic elements in Stainless Steel.
• BSP or NPT threads models.
• Improved watertight shaft system.
• Low head loss.
• With connection to filter.
• Maximum working pressure: 3,5 kg/cm2

3" Multiport Valve - Magnum

• Specially designed to support high working pressures and connection to large filters which require special connections.
• Choose from the models offered: 2 ½'', 3'' and 4'' multiport valves.
• Lateral 6-function multiport valve with links to filters.
• Body and cover injected in ABS and fibre glass.
• Handle injected in ABS.
• Sealing system by stainless steel screws.
• Supplied with two plugs so that the customer may change the valve to a type more suitable to the installation
