SKU
G9787

Astral NanoFiber Filter

Astral NanoFiber Filter
Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Excludes multiport -NanoFiber filter 150 (10 m³\h) Astral Excludes multiport -NanoFiber filter 150 (10 m³\h) 36431 64837
£787.99 £656.66
- +
Available for
Back Order
Astral Excludes multiport -NanoFiber filter 180 (14 m³\h) Astral Excludes multiport -NanoFiber filter 180 (14 m³\h) 36432 64838
£848.24 £706.87
- +
Available for
Back Order
Astral Excludes multiport -NanoFiber filter 200 (18 m³\h) Astral Excludes multiport -NanoFiber filter 200 (18 m³\h) 36433 64839
£907.32 £756.10
- +
Available for
Back Order
Astral Excludes multiport - NanoFiber filter 150 (10 m³\h) Astral Excludes multiport - NanoFiber filter 150 (10 m³\h) 36434 67355-0100
£1,802.82 £1,502.35
- +
Available for
Back Order
Astral Excludes multiport - NanoFiber filter 180 (14 m³\h) Astral Excludes multiport - NanoFiber filter 180 (14 m³\h) 36435 67356-0100
£1,884.34 £1,570.28
- +
Available for
Back Order
Astral Excludes multiport - NanoFiber filter 200 (18 m³\h) Astral Excludes multiport - NanoFiber filter 200 (18 m³\h) 36436 67357-0100
£1,965.85 £1,638.21
- +
Available for
Back Order
Astral Excludes multiport - Automatic Adaption Kit Astral Excludes multiport - Automatic Adaption Kit 36437 67509
£930.95 £775.79
- +
Available for
Back Order
Astral Spare Cartridges - NanoFiber filter 180 Astral Spare Cartridges - NanoFiber filter 180 36439 65384
£512.72 £427.27
- +
Available for
Back Order
Astral Spare Cartridges - NanoFiber filter 200 Astral Spare Cartridges - NanoFiber filter 200 36440 65385
£585.97 £488.31
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

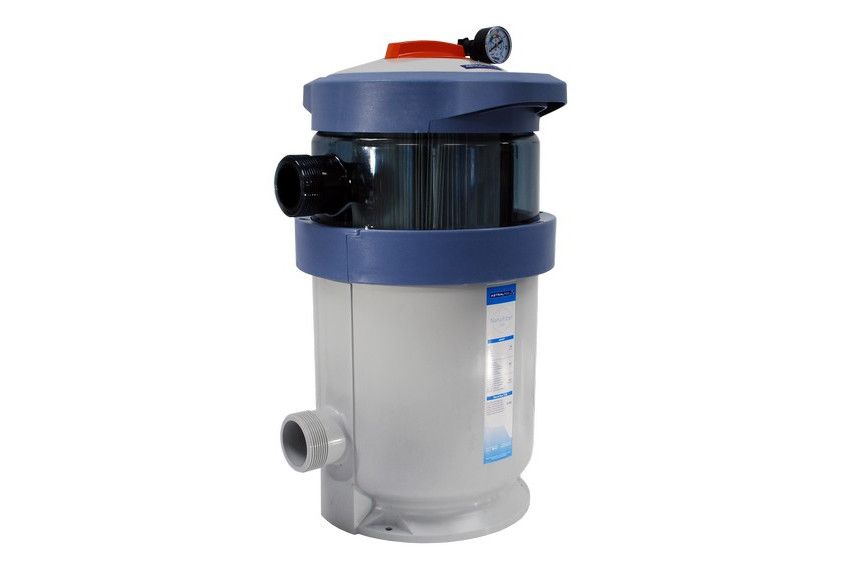

New electronic version of the Nanofiber Filter.
This filter can be connected with Manual valve 07444, Automatic valve 57187 and with the AstralPool MAC®.The range continues with the characteristics of NanoFiber filters with Three models of different cartridges, which are 10, 14 and 18 m³ / h.



Astral NanoFiber Filter



Astral NanoFiber Filter Manual



Astral NanoFiber Filter Self-Cleaning

Self-cleaning filter cartiridge including a specific cartridge constructed with paper nanofibers with a degree of filtration of 5-8 microns.
The range of nanofibers filters are made up of three models with different flow capacities according to the three cartridges. 10, 14 and 18 m³/h.

  • Easy to use
  • Minimum weight
  • Reduced size: 400 x 650 mm.
  • Lower water consumption.
  • Higher water filtration quality
  • Down to 5-8 μ.
  • Self cleaning filter.
  • Dirt slow to build up without limescale.
  • Compatible with current or existing filtration and pump systems.
  • Takes standard 2" multiport code 07444.

Self-cleaning filter:

The shower is activated in the backwash position. In order to backwash the filter medium correctly, turn the upper lever.
The filter's upper lever is activated manually but can be easily be automated. When the lever is turned, the cartridge also turns, which ensures it is thoroughly cleaned.



The secret:

The NanoFiber's filter material does not become impregnated with dirt, which improves the quality of water: after backwashing the flow rate returns to practically the same level each time.


Model Filtration surface area (m²) Flow rate (m³/h) Max. pool size (m³)
NanoFiber 150 4.5 10 70
NanoFiber 180 5.2 14 80
NanoFiber 200 6.0 18 90
Icon Label Type Size Download
pdf Astral NanoFiber Filter Dimensions pdf 2.5 MB Download
pdf Astral NanoFiber Filter Installation and Maintenance Manual pdf 3.1 MB Download
pdf Astral NanoFiber Filter Technical Information pdf 1.1 MB Download
