Astral OC-1 Aster Filter
Astral OC-1 Aster Filter
In-stock orders dispatched: on Monday

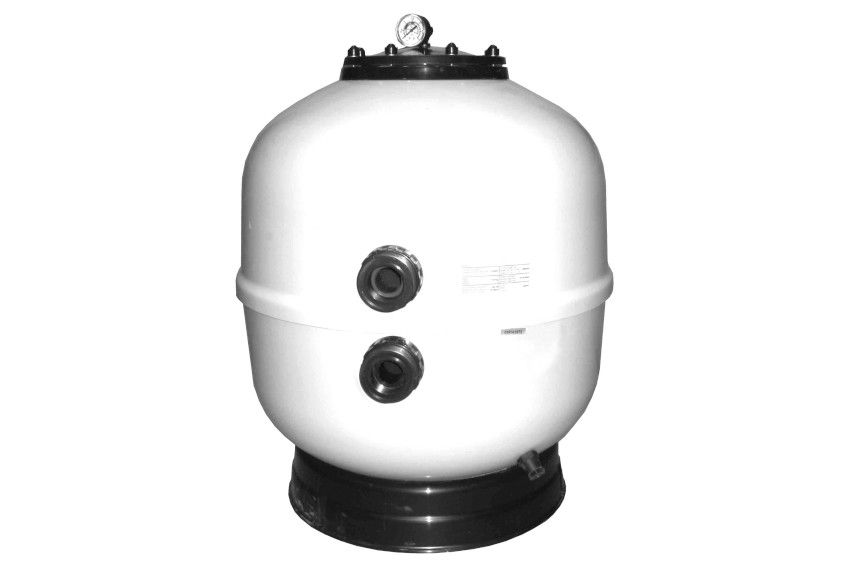

Astral OC-1 Aster Filter
- White laminated polyester and fibreglass filter.
- Internal parts with special sides for OC-1 media.
- Filter for side selector valve.
- ¼" air and water purge.
- Transparent lid with screws.
- Maximum temperature: 50°C Maximum working pressure of 2.5 kg/cm².
- Maximum filtration speed 50/h/m².
- Filter for OC-1 filtration media Not compatible with sand, glass or other filter loads.
| 68642 | 68643 | 68644 | 68645 | 68646 | 68647 | 68648 | |
|---|---|---|---|---|---|---|---|
| Ø D (mm) | 450 | 500 | 600 | 650 | 750 | 900 | 900 |
| H (mm) | 845 | 855 | 900 | 955 | 1035 | 1100 | 1100 |
| M (mm) | 305 | 290 | 330 | 370 | 325 | 365 | 390 |
| N (mm) | 430 | 415 | 455 | 495 | 555 | 635 | 660 |
| Flow rate (m³/h) at 50 m³/h/m² | 8 | 10 | 14 | 17 | 22 | 32 | 32 |
| Maxi working pressure kg/cm² | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Pool volume (m³) | 64 | 72 | 112 | 120 | 168 | 240 | 240 |
| Filtration area (m²) | 0,159 | 0,196 | 0,283 | 0,332 | 0,442 | 0,636 | 0,636 |
| Volume OC-1 (L) | 44 | 59 | 78 | 125 | 181 | 313 | 313 |
| OC-1 (kg) | 9 | 12 | 16 | 25 | 36 | 63 | 63 |
| Net weight (kg) | 18 | 20 | 25 | 26 | 33 | 50 | 50 |
