Astral Pool Aral C-3000 Pump
Aral C-3000 Pump
In-stock orders dispatched: in 16hrs 52mins
Astral Pool Aral C-3000 Pump

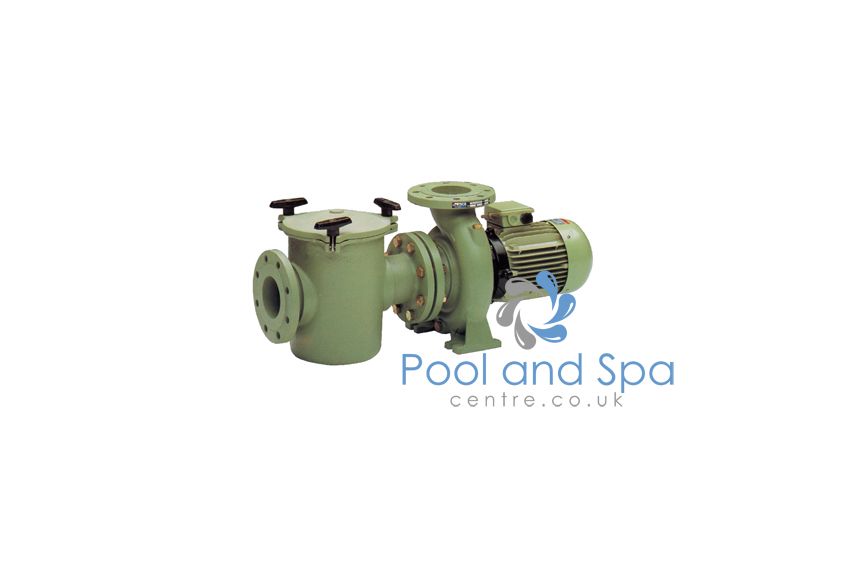

Monobloc horizontal centrifugal pumps with a horizontal volute and a attached pre-filter with an stainless steel AISI-304 basket.
Appropiate for public swimming pools and clean liquid recirculation. 3000 r.p.m. high performance pumps with the body, impeller, pre-filter and bracket manufactured in cast iron.
The shaft is made of stainless steel AISI-316 with bronze protection, and the mechanic seal is made of stainless steel AISI-316.
The motor holds an IP-54 protection. The gamma ranges from triphasic 3 HP to 25 HP motors.
Such motors have a 230/400/690V 50Hz working voltage (60 hz could also be supplied). Hub by flange according to DIN-2501 regulation. According the Energy Efficiency regulation class IE2.
| Code | Power | Connection | Voltage | m.w.h. 8 m³/h |
m.w.h. 10 m³/h |
m.w.h. 12 m³/h |
m.w.h. 14 m³/h |
m.w.h. 16 m³/h |
m.w.h. 20 m³/h |
|---|---|---|---|---|---|---|---|---|---|
| 01193 | 2.20 kW (3 HP) | DN 90-3" | 230/400 V III | 59 | 54 | 46 | 40 | 30 | 0 |
| 01195 | 2.95 kW (4 HP) | DN 80-3" | 400/690 V III | 67 | 61 | 55 | 48 | 40 | 0 |
| 01197 | 4.00 kW (5.5 HP) | DN 80-3" | 400/690 V III | 78 | 72 | 66 | 60 | 52 | 0 |
| 01199 | 4.00 k\w (5.5 HP) | DN 100-4" | 400/690 V III | 100 | 89 | 70 | 60 | 48 | 0 |
| 01201 | 5.50 kW (7.5 HP) | DN 100-4" | 400/690 V III | 126 | 115 | 100 | 80 | 60 | 0 |
| 01203 | 7.50 kW (10 HP) | DN 100-4" | 400/690 V III | 145 | 140 | 123 | 107 | 86 | 0 |
| 01205 | 8.70 kW (12.5 HP) | DN 125-5" | 400/690 V III | 165 | 158 | 149 | 135 | 115 | 0 |
| 01207 | 11.04 kW (15 HP) | DN 125-5" | 400/690 V III | 195 | 190 | 175 | 160 | 140 | 0 |
