Astral Pool Aster Filter

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Astral Pool Aster 500mm Filter with 1.5" Outlet	Astral Pool Aster 500mm Filter with 1.5" Outlet	20342	30770	£884.87 £737.39	- +	Available for Back Order
Astral Pool Aster 600mm Filter with 1.5" Outlet	Astral Pool Aster 600mm Filter with 1.5" Outlet	20343	30771	£1,011.28 £842.73	- +	Available for Back Order
Astral Pool Aster 750mm Filter with 2" Outlet	Astral Pool Aster 750mm Filter with 2" Outlet	20344	33847	£1,781.56 £1,484.63	- +	Available for Back Order
Astral Pool Aster 900mm Filter with 2" Outlet	Astral Pool Aster 900mm Filter with 2" Outlet	20345	33848	£2,345.08 £1,954.23	- +	Available for Back Order
Astral Pool Aster 350mm Filter with 1½" Outlet	Astral Pool Aster 350mm Filter with 1½" Outlet	36493	30768	£806.89 £672.41	- +	Available for Back Order
Astral Pool Aster 450mm Filter with 1½" Outlet	Astral Pool Aster 450mm Filter with 1½" Outlet	36494	30769	£847.07 £705.89	- +	Available for Back Order
Astral Pool Aster 31000 l/h Ø 900 mm outlet 2½"	Astral Pool Aster 31000 l/h Ø 900 mm outlet 2½"	36500	00501	£2,392.33 £1,993.61	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

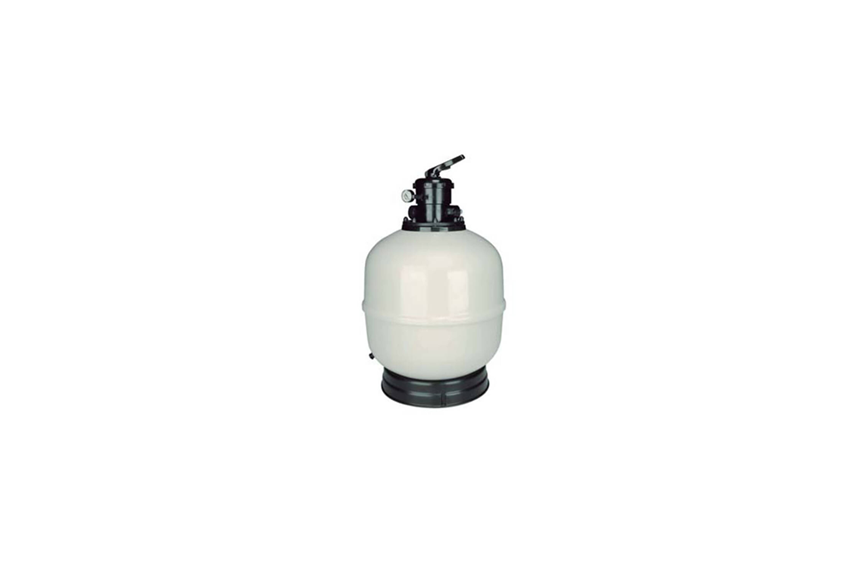

Beige laminated polyester and fibreglass body with boltless lid and polypropylene base. Equipped with pressure gauge, water drainage plug, and multiport valve. Maximum working pressure: 2,5 kg/cm2. Filtration velocity: 50 m3/h/m2.

Characteristics

Sand filters, laminated with polyester/fibreglass resin. Comes in gray Ral 7038.
Equipped with collectors of 1″ diameter and diffuser of highly resistant PVC and PP plastic.
Fitted with pressure gauge, manual air and water purge valves.
Polypropylene base.
Screwless cover for quick opening and closing. – Maximum flow rate: 50 m3/h/m2.
Maximum operating pressure: 2,5 kg/cm2.

Advantages

Easy handling: A patented system is used for opening and closing the cover, thereby eliminating the use of traditional screws. The system also exerts uniform pressure over the entire watertight joint and makes it easier to loosen the cover.
Capacity: 1″ collectors increase the filtering surface and improves efficiency.
Functionality: Fitted with an AstralPool multiport valve with 6+1 positions for filter, backwash, rinse, recirculate, waste and closed. A valve so reliable, it’s used with most AstralPool filters.

Specifications

With Top Mounted Multiport Valve Specifications

	30768	30769	30770	30771	33847	33848
Ø D (mm)	350	450	500	600	750	900
H (mm)	910	965	960	1005	1184	1344
M (mm)	740	795	790	835	973	1133
N (mm)	680	785	730	775	897	1057
Connections	1½"	1½"	1½"	1½"	2"	2"
Flow rate m³/h at 50 m³/h/m²	5	8	9	14	21	31
Pool volume m³ (8 hours)	40	64	72	112	168	240
Sand kg	50	70	95	125	290	500
Maxi working pressure kg/cm²	2.5	2.5	2.5	2.5	2.5	2.5
Net weight kg	17	20	22	27	38	72
Packaging volume m³	0.13	0.23	0.30	0.46	0.74	1.49

With & Without Side Mounted Multiport Valve Specifications

	00497	00498	19781	00499	00500	Without Valve - 00501
Ø D (mm)	350	450	500	600	750	900
H (mm)	780	795	770	850	945	1050
M (mm)	420	430	415	455	555	660
N (mm)	295	305	290	330	325	390
Connections	1½"	1½"	1½"	1½"	2"	2½"
Flow rate m³/h at 50 m³/h/m²	5	8	9	14	21	30
Pool volume m³ (8 hours)	40	64	72	112	168	240
Sand kg	50	70	95	125	290	500
Maxi working pressure kg/cm²	2.5	2.5	2.5	2.5	2.5	2.5
Net weight kg	18	21	18	21	30	51
Packaging volume m³	0.13	0.23	0.26	0.36	0.6	1.03
