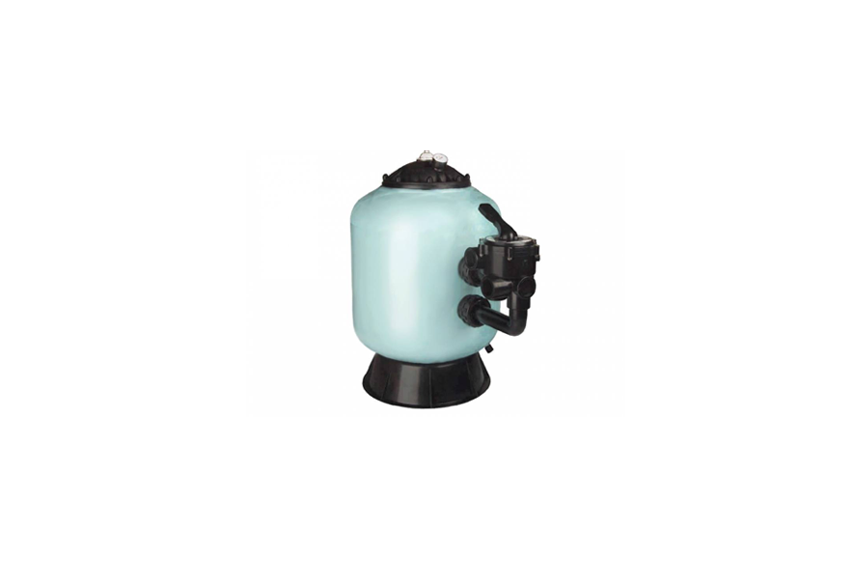

Astral Pool Berlin Filter
Astral Pool Berlin Filter with or without multiport valve
In-stock orders dispatched: on Monday
Ø 400 mm injected lid. Complete with pressure gauge, water purges, and multiport valve. Maximum filtration velocity 50 m3/h/m2.
Characteristics
- Bobbin-wound sand filters in polyester/fibreglass resin.
- Cover of Ø 240 mm with screw closure, die-injected for diameters up to 900 mm. Cover of Ø 400 mm with screw closure, die-injected for Ø 1050 and Ø 1200 mm.
- Blue satin-finish, with dust protection with a clear polyurethane flash coat for Ø 500, Ø 600, Ø 750 and Ø 900. Blue finish for Ø 1050 and Ø 1200.
- Equipped with collectors and diffuser of highly resistant PVC and PP plastic.
- Fitted with pressure gauge and manual air and water bleeder valves. For models of Ø 900, Ø 1050 and Ø 1200, includes sand drain of 2 1/2″ sand purge.
- Side-mount, 6+1 way selector valve for filter, backwash, rinse, recirculate, waste and closed, except for models of Ø 500, Ø 600 and Ø 750.
- Maximum flow rate: 50 m3/h/m2. – Maximum operating pressure: 2,5 kg/cm2.
- Inner coating of HDPE (polyethylene), blown for Ø 500 and Ø 600mm, thermoformed ABS for Ø 750 and Ø 900 mm, and polyester/fibreglass for Ø 1050 and Ø 1200 mm.
- Filter base manufactured in plastic with diameter up to 750 mm and polyester and fibreglass for larger diameters. Note: Operating pressure of 4 kg/cm2 available by special order
Advantages
- Easy access: Owing to the larger diameter of the top manhole (400 mm) for filters of diameter 1050 mm and 1200 mm, the filter interior can be more easily accessed for servicing.
- Improved finish: Apart from its bobbinwound finish, which provides greater resistance and safety, the blue satin-finish distinguishes it from conventional filters.
Side-Mounted Valve Specifications
00541 | 00542 | 00543 | |
---|---|---|---|
Ø D (mm) | 500 | 600 | 750 |
H (mm) | 805 | 910 | 1050 |
M (mm) | 450 | 505 | 610 |
N (mm) | 325 | 380 | 380 |
Connections | 1½" | 1½" | 2" |
Flow rate m³/h at 50 m³/h/m² | 9 | 14 | 21 |
Pool volume m³ | 50-75 | 75-115 | 115-170 |
Sand kg | 100 | 175 | 300 |
Maxi working pressure kg/cm² | 2.5 | 2.5 | 2.5 |
Net weight kg | 14.6 | 18.6 | 27.5 |
Packaging volume m³ | 0.23 | 0.36 | 0.26 |
Without Valve Specifications
00544 | 00545 | 00546 | |
---|---|---|---|
Ø D (mm) | 900 | 1050 | 1200 |
H (mm) | 1145 | 1300 | 1450 |
M (mm) | 685 | 810 | 870 |
N (mm) | 415 | 500 | 560 |
Connections | 2½" | *D75 | **D90 |
Flow rate m³/h at 50 m³/h/m² | 30 | 43 | 56 |
Pool volume m³ | 170-240 | 240-350 | 350-450 |
Sand kg | 525 | 575/300 | 800/300 |
Maxi working pressure kg/cm² | 2.5 | 2.5 | 2.5 |
Net weight kg | 43.4 | 83 | 93 |
Packaging volume m³ | 0.99 | 1.92 | 2.75 |
