Astral Pool Control Box for Pump Overload Protection and Underwater Light with Differential Protection
Control Box for Pump Overload Protection and Underwater Light with Differential Protection
In-stock orders dispatched: on Monday
Control Box for Pump Overload Protection and Underwater Light with Differential Protection

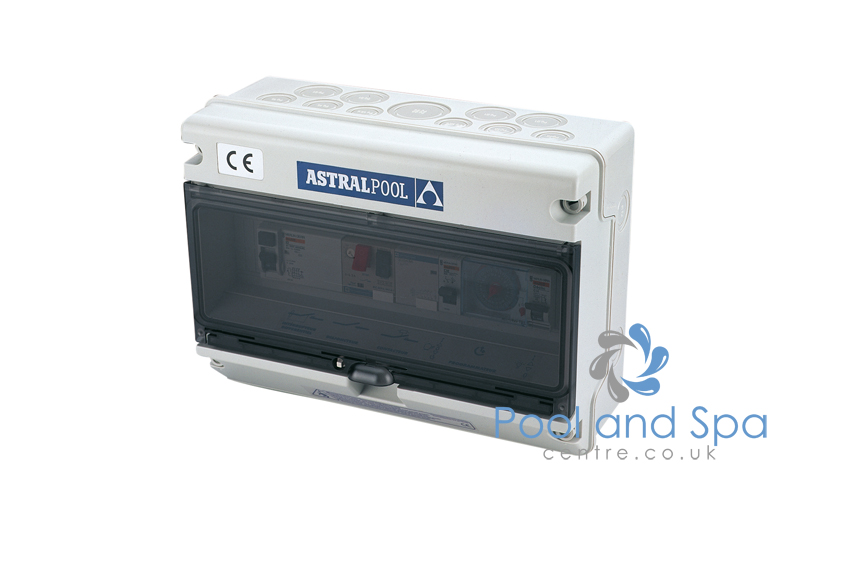

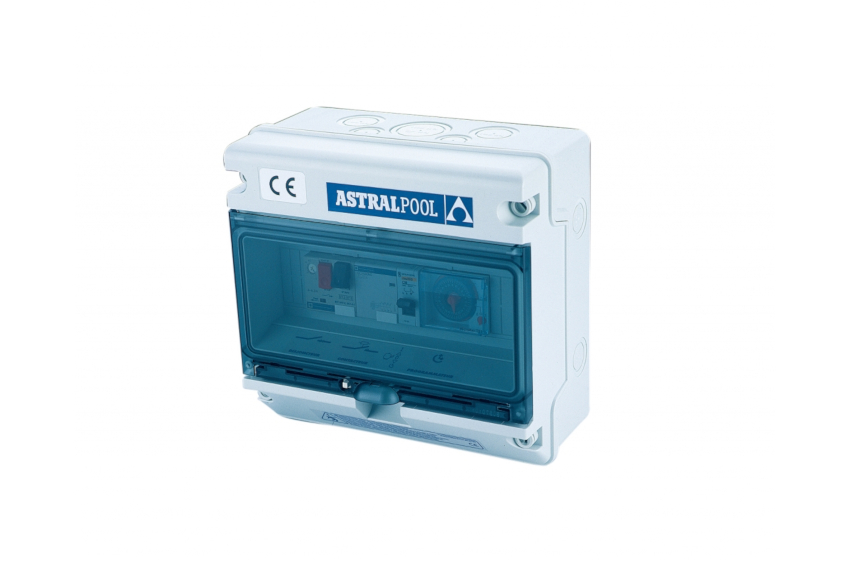

Control box for pump control and underwater light with differential protection - single-phase & three-phase.
IP-65 protection. Transparent glass with lock and keys. All products are compatible with:
- 220/240V 1-phase (P+N+T) 50Hz/60Hz
- 380/415V 3-phase (3P+N+T) 50Hz/60Hz
- 220/230V 3-phase (3P+T) 50Hz/60Hz
24H master clock with ¼h steps. Conection for pump remote control (run/stop,...), for the auxiliar equipment (cold detector,...). All the products are supplied with:
- Electric scheme.
- Connection diagram.
- Installation instructions.
- CE certification.
- Gland for each cable input and output.
- Screws and stoppers (4) for wall installation.
The control box must be chosen according to the filtration pump nominal current:
Magnetothermic protection (2 pumps: 1ª from 6 to 10A and 2ª from 2 to 10A) contactor, 24h program clock . 3 positions: Auto / 0 / Manual. 230V 10A protected output for lights. 12V 315VA protected output for 1 underwater light.
| Sku | Type | Current Range | Power Range 1-Phase 230v | Power Range 3-Phase 400v | Power Range 3-Phase 230v |
| 11874 | A | 1.6A - 2.5A | 1/4hp - 1/3hp | 3/4hp - 1hp | 1/2hp |
| 11875 | B | 2.5A - 4A | 1/2hp | 1.5hp - 2hp | 3/4hp - 1hp |
| 11876 | C | 4A - 6.3A | 3/4hp - 1hp | 3hp | 1.5hp |
| 11877 | D | 6A - 10A | 1.5hp - 2hp | 4hp | 2hp - 3hp |
