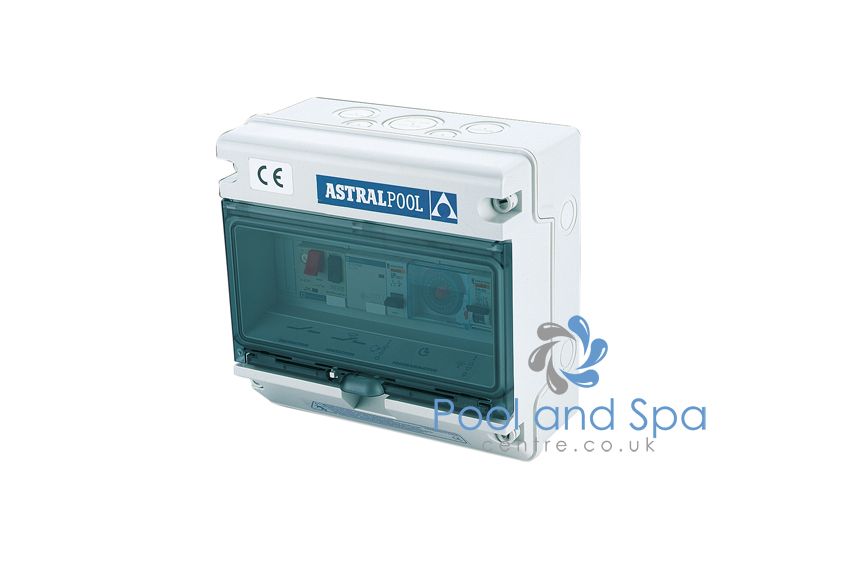

Astral Pool Control Box for Pump Overload Protection and Underwater Light

IP-65 protection. Transparent glass with lock and keys. All products are compatible with:

• 220/240V 1-phase (P+N+T) 50Hz/60Hz
• 380/415V 3-phase (3P+N+T) 50Hz/60Hz
• 220/230V 3-phase (3P+T) 50Hz/60Hz

24H master clock with ¼h steps. Conection for pump remote control (run/stop,...), for the auxiliar equipment (cold detector,...). All the products are supplied with:

• Electric scheme.
• Connection diagram.
• Installation instructions.
• CE certification.
• Gland for each cable input and output.
• Screws and stoppers (4) for wall installation.

The control box must be chosen according to the filtration pump nominal current:
Magnetothermic protection ( from 1,6 to 10A ) contactor, 24h program clock . 3 positions: Auto / 0 / Manual. 230V 10A protected output for lights.
