SKU
G27840

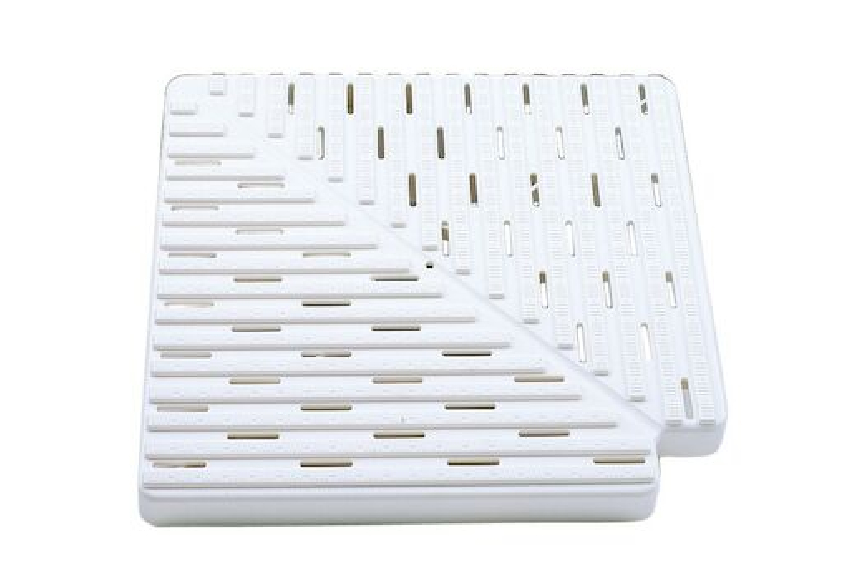

Astral Pool 90 Corner Tiles For Overflow Channels

Grouped product items
Product Name SKU MPN Price Qty Stock
Astral Pool 90 Degree Tile 22mm x 195mm Astral Pool 90 Degree Tile 22mm x 195mm 15071 22379
£57.89 £48.24
- +
Available for
Back Order
Astral Pool 90 Degree Tile 22mm x 245mm Astral Pool 90 Degree Tile 22mm x 245mm 15072 22380
£73.25 £61.04
- +
Available for
Back Order
Astral Pool 90 Degree Tile 22mm x 295mm Astral Pool 90 Degree Tile 22mm x 295mm 15073 22381
£90.97 £75.81
- +
Available for
Back Order
Astral Pool 90 Degree Tile 22mm x 335mm Astral Pool 90 Degree Tile 22mm x 335mm 15074 22382
£108.68 £90.57
- +
Available for
Back Order
Astral Pool 90 Degree Tile 35mm x 195mm Astral Pool 90 Degree Tile 35mm x 195mm 15075 22383
£62.62 £52.18
- +
Available for
Back Order
Astral Pool 90 Degree Tile 35mm x 245mm Astral Pool 90 Degree Tile 35mm x 245mm 15076 22384
£76.79 £63.99
- +
Available for
Back Order
Astral Pool 90 Degree Tile 35mm x 295mm Astral Pool 90 Degree Tile 35mm x 295mm 15077 22385
£96.88 £80.73
- +
Available for
Back Order
Astral Pool 90 Degree Tile 35mm x 335mm Astral Pool 90 Degree Tile 35mm x 335mm 15078 22386
£115.78 £96.48
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

Made in PP, stabilised against UV rays. Assembled by clipping modules together. Total of 45 units per metre.

These are supplied as modules of tiles for straight or curved runs (external radius of 1 or 2 metres). The tiles click together white a male-female pressure fit permitting a certain amount of flexibility in assembly which absorbs any expansion which may occur when the tiles are exposed to heat fluctuations.

For all types of grating it is necessary to construct the channel 5 mm wider than the grating itself, to allow for ease of removal and expansion.

  • This White Overflow grating range is made of Polypropylene which is stabilised to the action of UV rays.
  • It is recommended to build the overflow channel 5mm wider than the grid so it will avoid possible expansions with temperature flexability.
  • The longitudinal design of this range ensures complete assimilation of the water surface, preventing it may overcome the multiple channels that cross its path, keeping the soil dry almost surrounding the pool.
SKU Hight mm Channel Width mm
15071 22 195
15072 22 245
15073 22 295
15074 22 335
15075 35 195
15076 35 245
15077 35 295
15078 35 335
