Astral Pool LumiPlus LED Modulator & Accessories

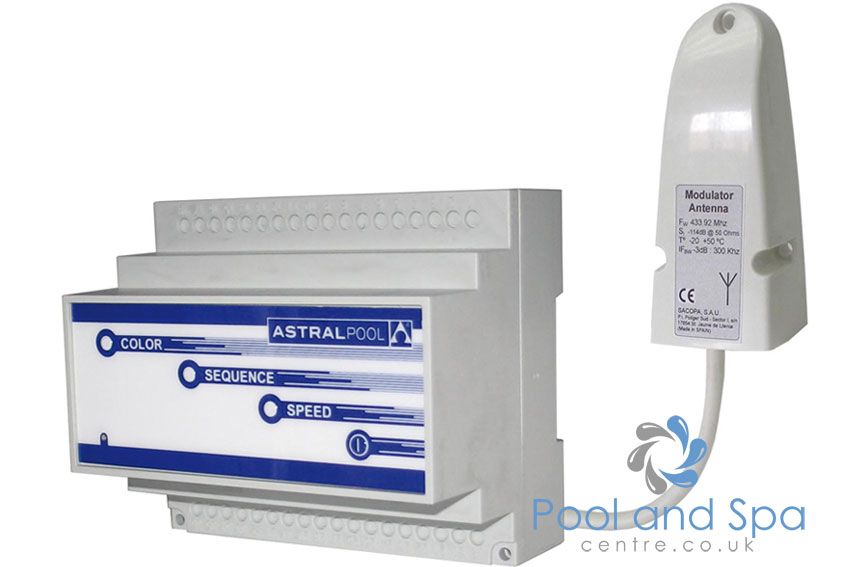

LumiPlus Modulator

These allow full control of up to 15 underwater lights.The Modulator has 1 mode indicator LED on the lower part and 4 push buttons: COLOUR, SEQUENCE, SPEED and ON/SLEEP.

The LED lighting system provides the colour atmosphere required for your pool at each instant. This is attained by LED lights, a remote control button set, a reception terminal and a transformer supplied apart. The LED lighting system provides a lighting of maximum luminosity in red, blue, and green lights (1 W). The combination of these three basic colours gives 12 different colour shades of high luminosity and liveliness.

By choosing the colours you want you can obtain any of the 9 different colour sequences. For pools under construction, in concrete or prefabricated, either a Standard model light with niche included, or flat model one not requiring any niche can be installed.

The existing niche can be used by only replacing the LED lighting unit, both in concrete as well as in prefabricated pools. The existing installation can be used without requiring the replacement of the transformer nor of the wiring.

The working life span of the LED units is of 10,000 h versus the 1,000 h for the conventional bulbs. Each of the units consumes only 60W. Each of 5 LED lighting units requires one remote control, one reception terminal and one 300W transformer.

The main functions of the Modulator are:

• Switching the projectors on/off.
• Colour selection: 12 fixed colours available.
• Sequence selection: 8 sequences available.
• Sequence speed selection: 8 speeds available per sequence.

ANTENNA
The Modulator can be controlled by the LumiPlus Remote Control, for more convenience.
The Modulator incorporates an antenna to receive the signal from the Remote Control.

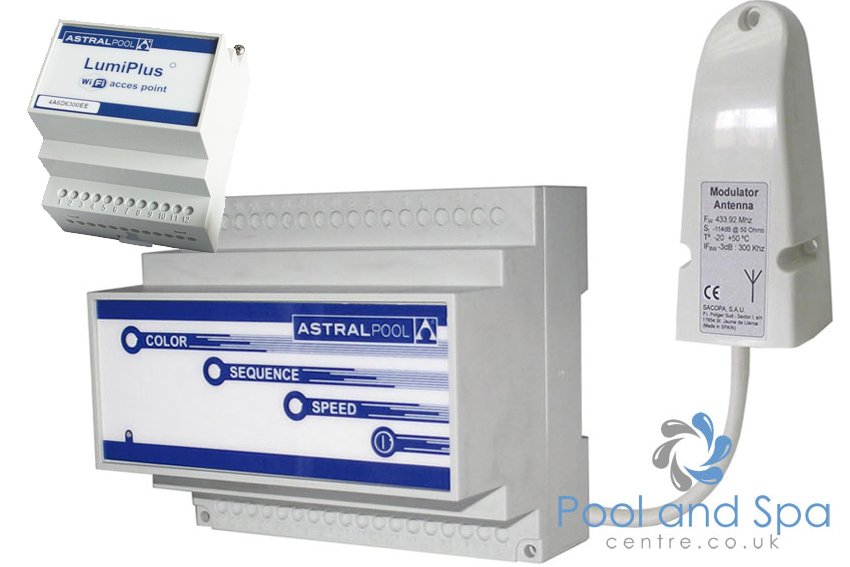

LumiPLus Wifi Access Point

Application to control any LumiPlus lamp or projector from smartphones / tablets with Android or Apple iOS (iPhone / iPad). If the pool has a LumiPlus Modulator (ref. 27818) by connecting the LumiPlus Wifi Access Point to it and downloading the LumiPlus LED app you could control any LumiPlus lamp or proyecteros through your smartphone or tablet.

The free application can be donwload directly from the QR code or the following addresses by OS:
Apple: www.lumiplusled-ios.astralpool.com
Android: www.lumiplusled-android.astralpool.com

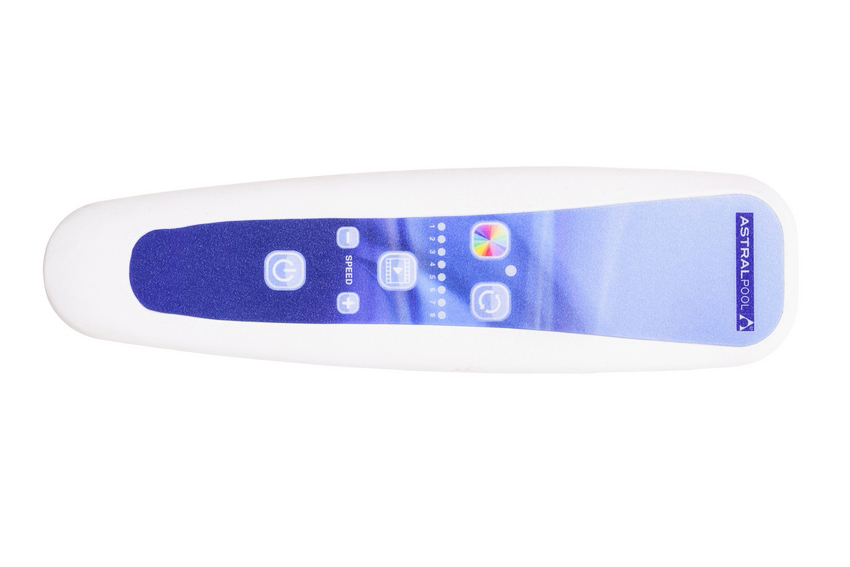

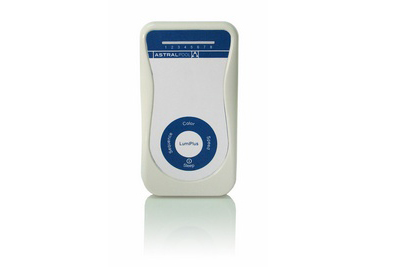

Remote LUMIPLUS

The remote control has 8 mode indicating LEDs in the upper part and 4 push buttons in the lower part: COLOUR, SEQUENCE, SPEED and ON/SLEEP.

The main functions of the remote control are:

• Switching the projectors on/off.
• Colour selection: 12 fixed colours available.
• Sequence selection: 8 sequences available.
• Sequence speed selection: 8 speeds available per sequence.
• Timed switching off sequence: 8 timing sequences available.
• To control a LumiPlus projector, the Remote Control must be linked to the LumiPlus Modulator.

Remote Specifications

• Operation frequency: 433 MHz
• Range in open field: 50 m.
• Power: 10 mW
• Battery: 1 battery 23AE 12 Vdc.
