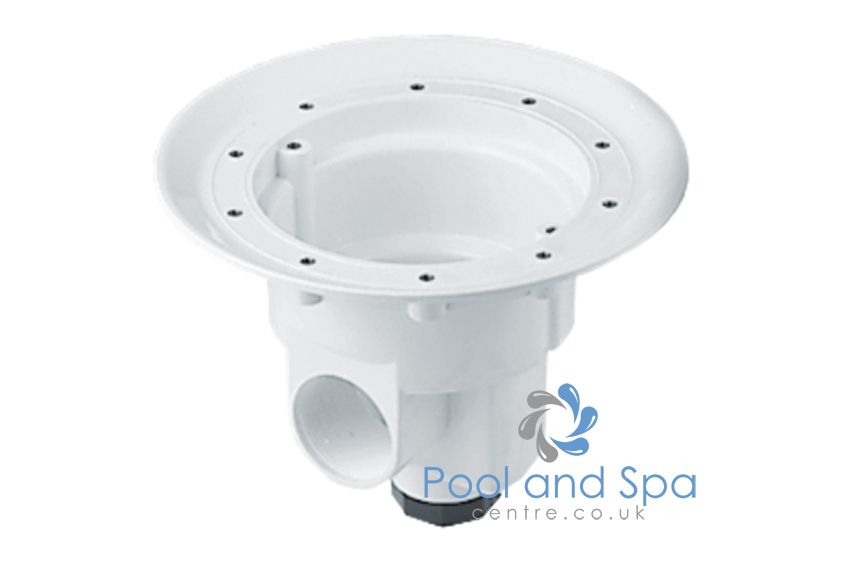

Astral Pool Outlet of 290 MM

Outlet of 290 MM

All main drains made in plastic are provided with UV protected grilles.

• According to UNE 13451-1 standard, in public pools:
• Water passing speed 0.5 m/seg
• Maximum suction velocity 1.5 m/seg
• Minimum distance between drains: >2 m
• Recommended use of WARNER security system to detect any irregularities and effect automatic shutdown of pumps Made totally in white ABS, with self adhesive gaskets and screws. 2" side connections which can be plugged from the inside for pressure testing. 11/2" bottom connection with plug for fitting the hydrostatic relief valve & drainage tube.
• Suction velocity 0.5 m/sec. Recommended max. flow: 13 m3/h.
• Installed flush with floor bottom for total drainage.
