SKU
G5206

Astral Pool Rear External 63MM

Rear External 63MM
Grouped product items
Product Name SKU MPN Price Qty Stock
2 INCH FRONT INTERNAL THREAD FOR 2 INCH MALE THREA 2 INCH FRONT INTERNAL THREAD FOR 2 INCH MALE THREA 12323
£17.72 £14.77
- +
Available for
Back Order
2 INCH THREAD EXCLUSIVELY FOR INLET MODEL 06498 2 INCH THREAD EXCLUSIVELY FOR INLET MODEL 06498 12324 12324
£17.72 £14.77
- +
1 In stock
Add to Wishlist

In-stock orders dispatched:14:00

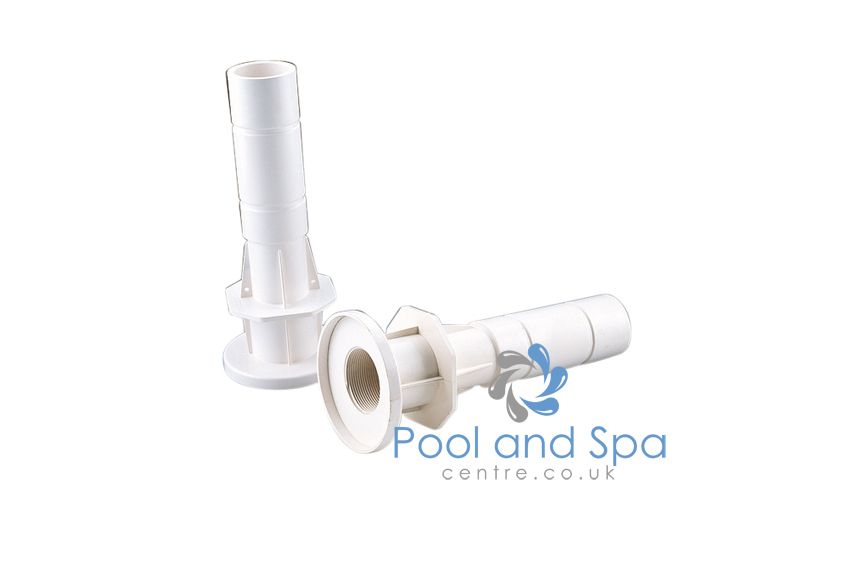

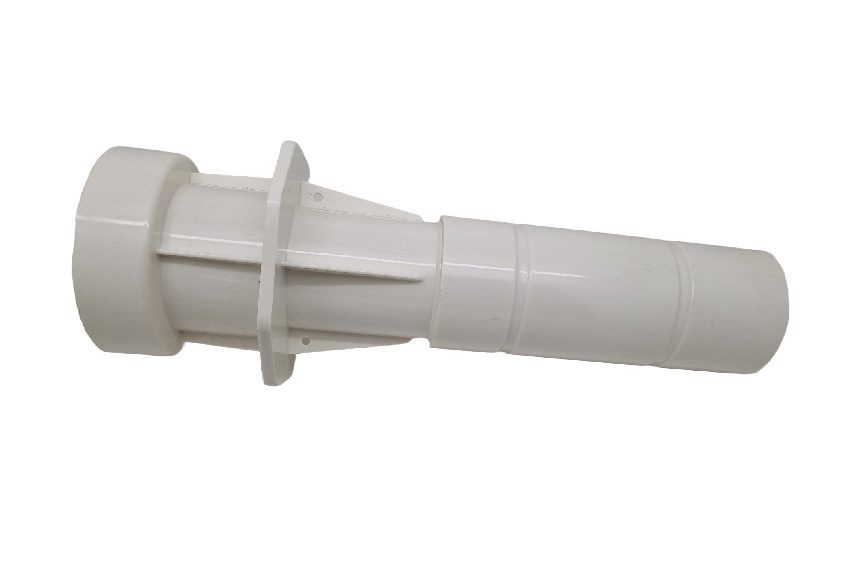

Rear External 63MM

New range of 300 mm conduits for Ø 2" inlets and "Multiflow", that can be easily cut to other lengths depending on pool shell thickness. Made in ABS. They all have 2 holes for positioning within the pool shell.

The front face of the conduit is recessed which means the inlet body is installed flush with the wall leaving the liner flat and only the inlet face plate visible.

Dimensions 12323 12324
A 250 250
B 175 475
C D.118.5 D.84
D 2" 2"
E 10 24
F 300 300
G D.50 D.50
H D63 D63
Icon Label Type Size Download
pdf Sizes - Rear External 2 Inch Male Thread pdf 32.6 KB Download
