Astral Pool Spare Parts For Maxim Pump
Spare Parts For Maxim Pump.
In-stock orders dispatched: in 15hrs 39mins
Spare Parts For Astral Pool Maxim Pump 2860 rpm

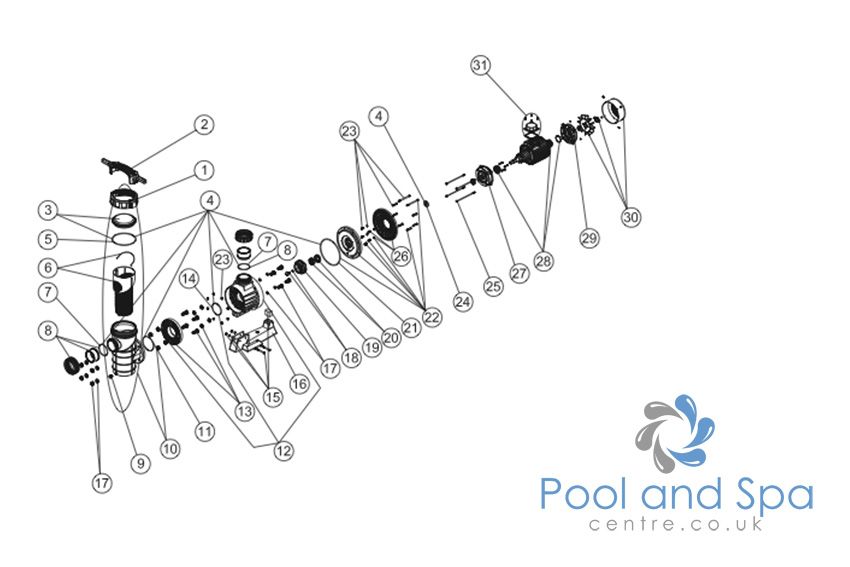

| SKU | Description | Picture Number |
| 11962 | Drain Plug 1/4" (Sold As A Pair) | 9 |

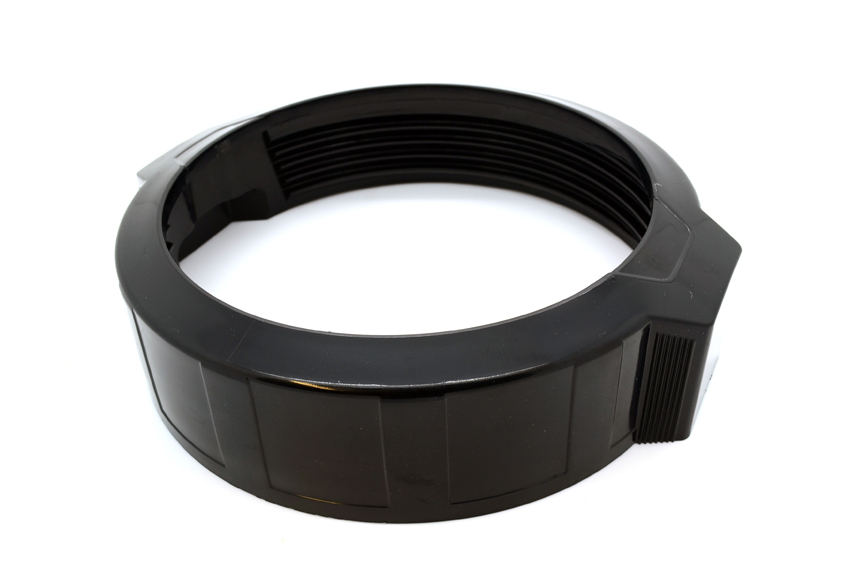

| 13252 | Threaded Lid Collar | 1 |
| 16412 | Key For Prefilter Nut | 2 |

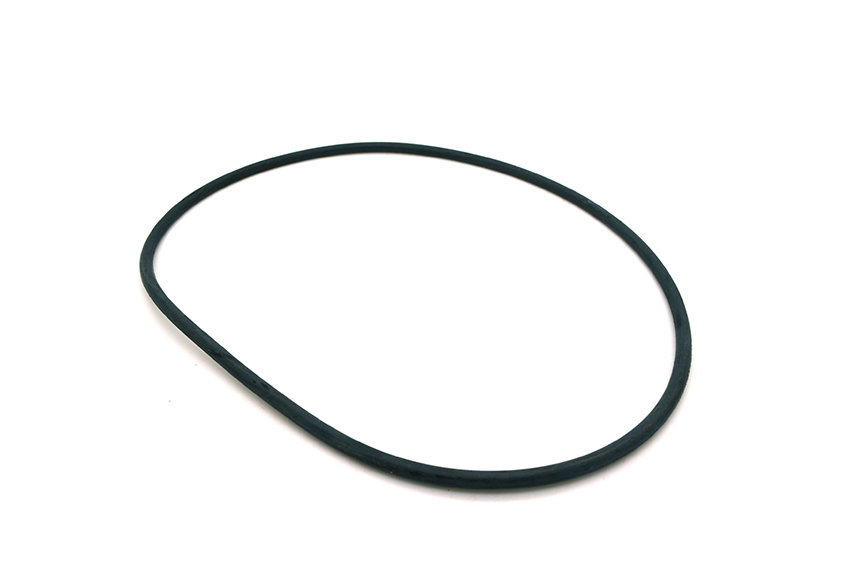

| 16415 | O' Ring D 192X5 | 5 |
| 16417 | Suction/Return Gaskets | 7 |

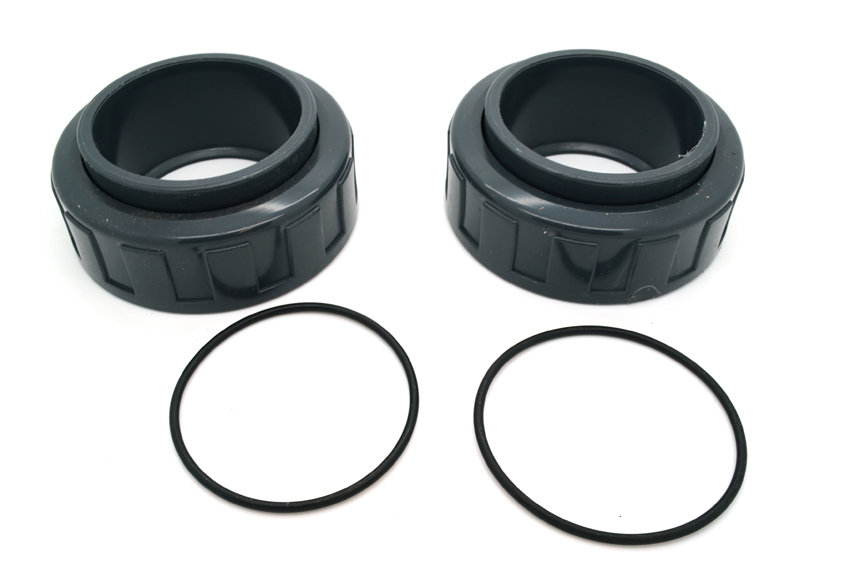

| 16418 | Union Fittings x 2 | 8 |
| 16421 | Prefilter Assembly Kit | 10 |
| 16422 | 'O' Ring D 124X3.5 | 11 |
| 16423 | Pump Body 3.5HP | 12 |
| 16424 | Pump Body 4.5HP | 12 |
| 16425 | Pump Body 5.5HP | 12 |
| 16426 | O' Ring D 100X4 | 14 |
| 16427 | Pump Base Fittings <=4.5HP | 15 |
| 16428 | Pump Base Fittings 5.5HP | 15 |
| 16429 | Pump Base | 16 |
| 16430 | Back Plate Screws | 17 |

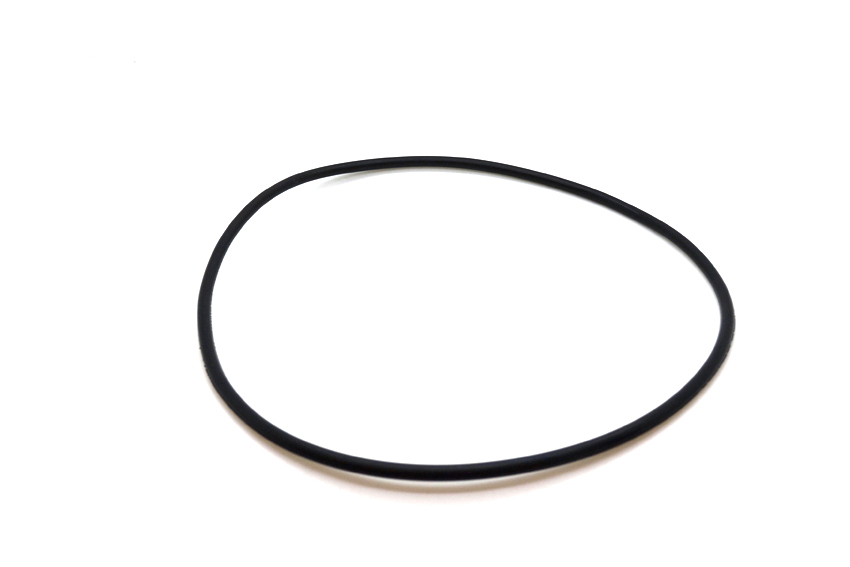

| 16436 | O' Ring D 226X6 | 21 |
| 16439 | Flange Screws | 23 |
| 16440 | Deflector Washer 24x50x6 4HP | 24 |
| 16441 | Motor Ties 4.5HP-5.5HP | 25 |
| 16442 | Motor Clamp 3.5HP | 26 |
| 16443 | Motor Clamp 4.5-5.5HP | 26 |
| 16444 | Front Motor Cover 2.5-3HP (Bonora) | 27 |
| 16445 | Front Motor Cover 4.5-5.5HP | 27 |
| 16446 | Front Motor Cover 2.5-3HP (Vernis) | 27 |
| 16447 | Motor Bearing 5.5HP Merc | 28 |
| 16448 | Bearings Assembly 6205 2RS 3.5HP | 28 |
| 16449 | Rear Motor Cover 4.5-5.5HP | 29 |
| 16450 | Fan + Cover Assembly 3.5HP (Bonora) | 30 |
| 16451 | Fan Cover Assembly 3.5HP (Vernis) | 30 |
| 16452 | Fan Cover Assembly 4.5-5.5HP | 30 |
| 16453 | Connection Box Assembly 2.5-4.5HP (Bon-Ver) | 31 |

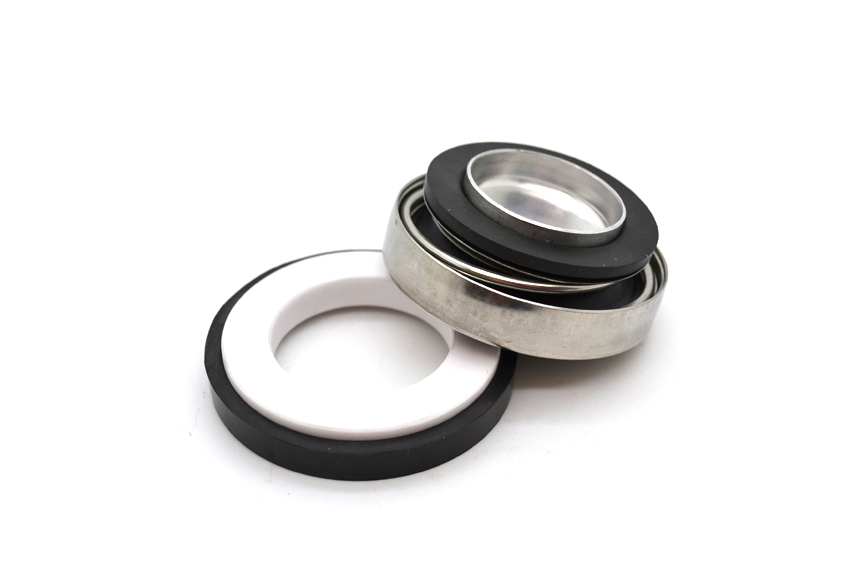

| 19056 | Mechanical Seal | 20 |

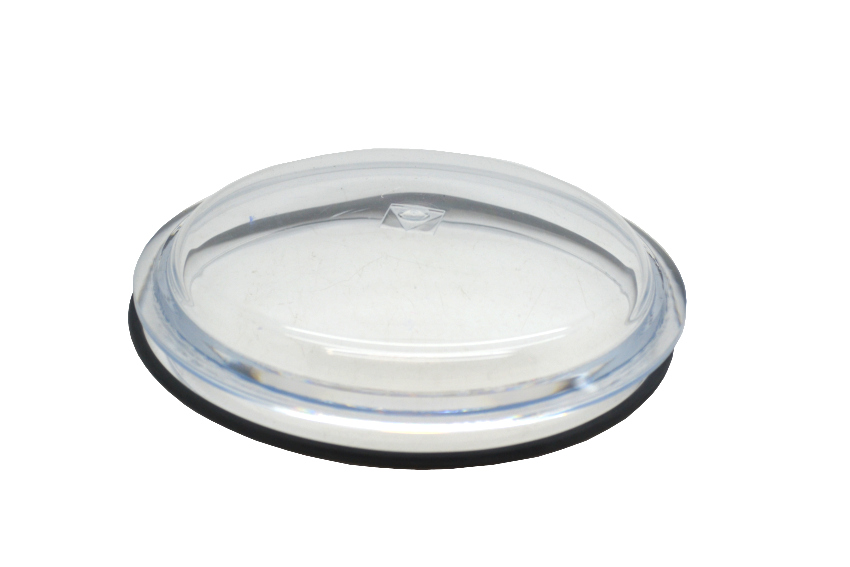

| 20443 | Pre-filter Cover | 3 |

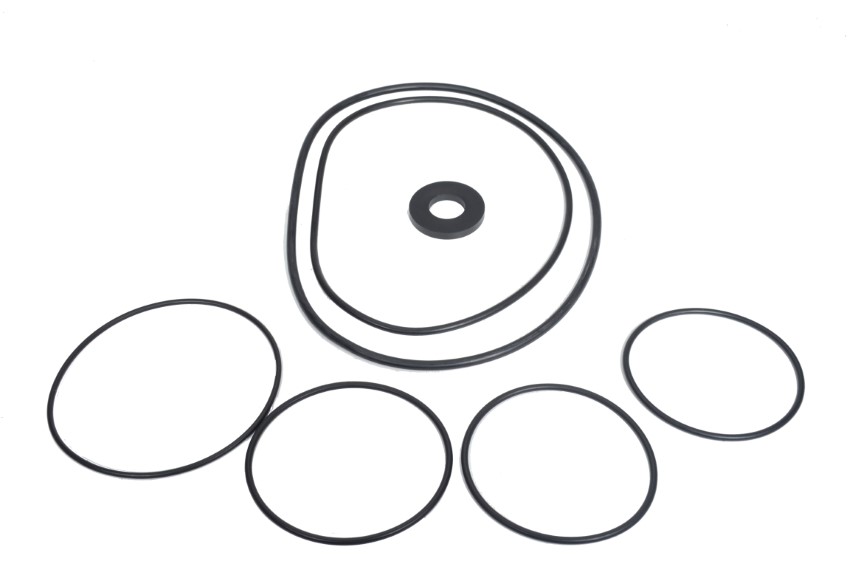

| 20444 | Gaskets - Complete Set of 7 O-Rings | 4 |
| 20445 | Pre-filter Basket | 6 |

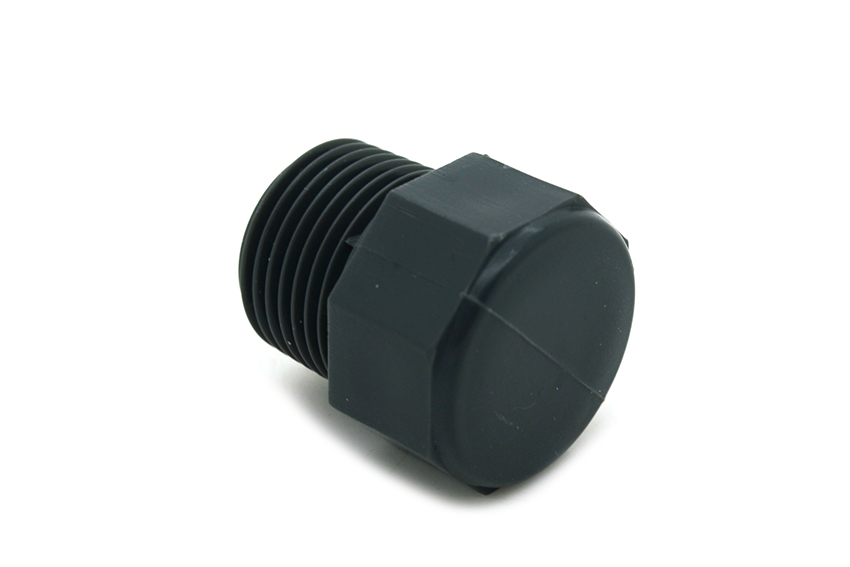

| 20446 | Drain Plug 3/8" | 9 |
| 20447 | Flange Fixing Screws | 12 |
| 20448 | Impellor Cover | 18 |
| 20449 | Impellor 3.5 HP III 50 Hz | 19 |

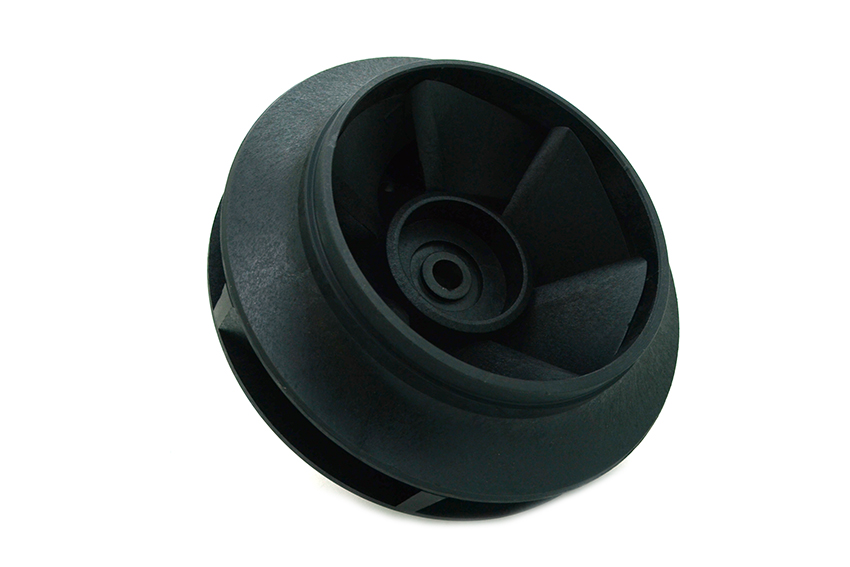

| 20450 | Impellor 4.5 HP III 50 Hz | 19 |
| 20451 | Impellor 5.5 HP III 50 Hz | 19 |
| 20452 | Mechanical Seal Plate 3.5 HP | 22 |
| 20453 | Mechanical Seal Plate 4.5 - 5.5 HP | 22 |
| 20454 | Motor Ties 3.5-4.5 HP VAR | 25 |
| 20455 | Rear Motor Cover 3.5 HP (Bonora) | 29 |
| 20456 | Rear Motor Cover 2.5-3-3.5 HP (Vernis) | 29 |
