Astral Pool Spare Parts For PTK 1200 D Filter - Models 1000 & 1200
Spare parts for the PTK 1200 D Filter for Models 1000 & 1200
In-stock orders dispatched: in 6hrs 30mins
Spare parts for the Astral PTK 1200 D Filter - Models 1000 & 1200.

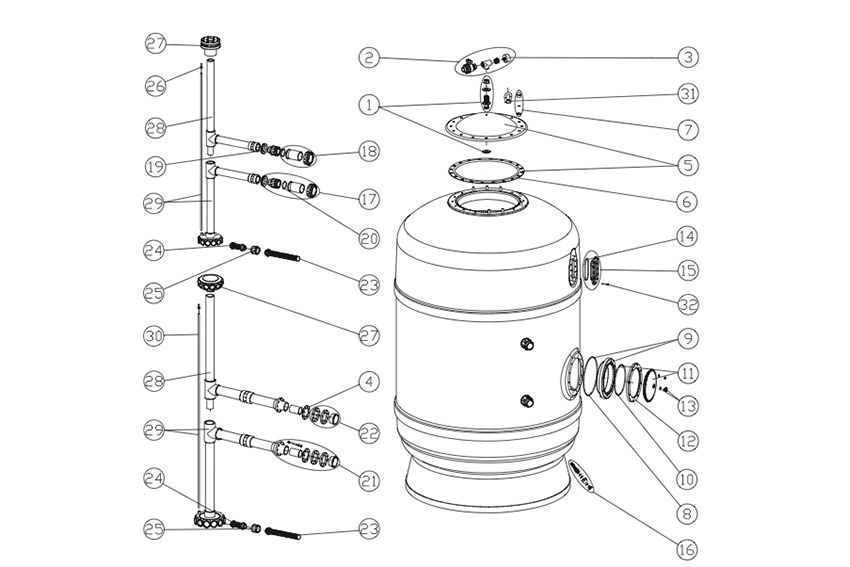

| SKU | Description | Picture Number |
| 15847 | 'O' Ring 255x4 | 8 |
| 15848 | Water Purge 3/8" | 16 |
| 15849 | Drain Plug And Gasket | 13 |
| 15856 | Air Purge | 26 |
| 15914 | 20-Screw Neck Ring | 9 |
| 15916 | Valve Top Ring Fixing Gasket | 10 |
| 15990 | Filter Lid D 220 Black | 11 |
| 15992 | Lid Fixing Ring | 12 |
| 15999 | Concave Gasket 2 1/2" | 19 |
| 16002 | 2 1/2" D 75 Outlet Assembly | 17 |
| 16003 | 3 Piece Connection 75 | 18 |
| 16020 | Pressure Gauge Connection | 1 |
| 16021 | Pressure Gauge Set | 2 |
| 16022 | Filter Lid + Gasket | 5 |
| 16024 | Filter Lid Bolts | 7 |
| 16031 | 'O' Ring D 110, 5X5, 6 | 14 |
| 16032 | Filter Visor With Gasket | 15 |
| 16037 | Gasket 2 1/2inch | 20 |
| 16038 | Kit Inlet/Outlet | 21 |
| 16039 | Flange Fitting 90 + Fitting | 22 |
| 16040 | Lateral Assembly 650mm 1.2m BED | 23 |
| 16041 | Lateral Assembly 800mm 1.2m BED | 23 |
| 16042 | Lateral Assembly 1000mm 1.2m BED | 24 |
| 16043 | Lateral Assembly 1200mm 1.2m BED | 25 |
| 16045 | Diffuser Cone D 75 | 27 |
| 16046 | Collector Assembly PTK 1200 D 1000 | 29 |
| 16047 | Collector Assembly PTK 1200 D 1200 | 29 |
| 16048 | Eye Nut M12 | 31 |
| 20349 | Lid 'O' Ring | 6 |
| 20350 | Pressure Gauge 1/8" 3 kg./cm | 3 |
| 20351 | Flat Gasket 181x112x5 | 4 |
| 20352 | Diffuser Assembly PTK 1200 D 1000 | 28 |
| 20353 | Diffuser Assembly PTK 1200 D 1200 | 28 |
| 43641 | Diffuser Assembly PTK 1200 D.1000 | |
| 43642 | Diffuser Assembly PTK 1200 D.1200 | |
| 43643 | Collector Assembly PTK 1200 D.1000 | |
| 43644 | Collector Assembly PTK 1200 D.1200 |
