Balboa BP200G1 Pack with TP540 Topside

To £379.32 £316.10

3 In stock

Product Name	Price	Qty	Stock
Balboa BP200G1 Pack with TP540 Topside	1 x BALBOA TP540 Back Panel + £81.52 £67.93 2 1 x Balboa Overlay TP540 J/AUX/LT + £12.01 £10.01 2 1 x Balboa BP200G1 Control Box + £285.79 £238.16 0 £379.32	- +	Available for Back Order

* Required Fields

Add to Wishlist

£12.01 £10.01

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

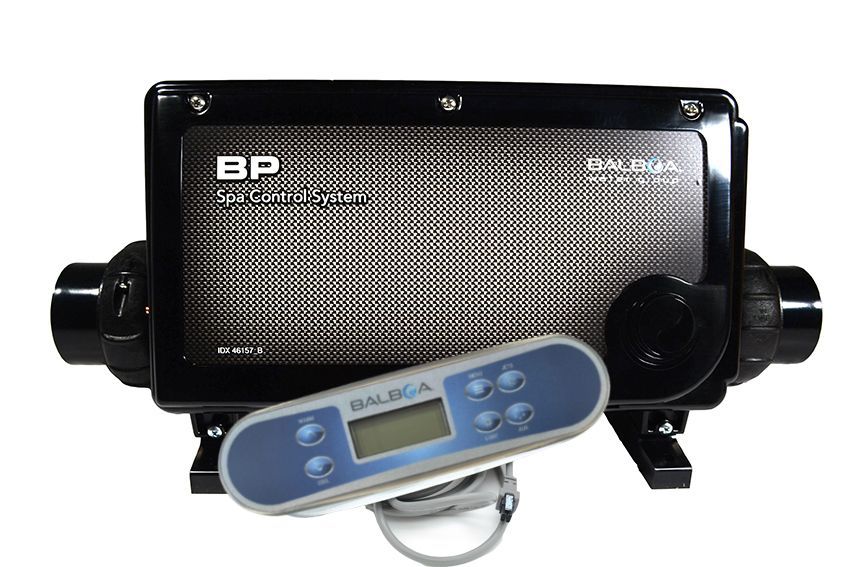

This hot tub system comes complete with the Balboa spa BP200G1 control pack and the 4 Button TP540 topside control panel.

Wi-Fi Enabled
Overheat Fault Detection for Runaway Pumps / Stuck Relays
New Software with Color Graphics
Multiple Languages
Comprehensive Diagnostics
Expandable, Configurable. Supports Dozens of Spa Setups

Features

TP540 Features

LCD Displays
Large, easy-to-read displays
Reliable communication interface
Maintenance reminders & alerts
Water-resistant connectors
Lowest cost entry level BP System
Compact size with removable feet
Attached or remote heater
BP capable features
WiFi (bwa™ & ControlMySpa™), Balboa Bluetooth Audio (bba™), Newest TP/SpaTouch™ Panels
Can be customized to fit your needs
BP100: North America. BP200: International

Dimensions

Length: 435 mm (inc heater) 330 mm (box only)
Width: 160 mm
Height: 220 mm

Specifications

BP200

Pump 1: Dual speed pump or Single speed if circulation pump used
Heater: x 1 (3kW)
Light: 1 Amp Max at 10 volts

TP540 6 Button Topside

The TP540 is part of Balboa's BP Wifi ready range & comes complete with a 4 black plastic pins connector. It is designed to work with BP Series of hot tub control systems. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen

Instructions

2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components

If upgrading from an even older system or a different manufacturer, typically the process is the same, but, you will probably have to convert your old cables (typically JJ plugs) over as this box uses plastic amp plugs to connect to the circuit board, from all internal components i.e. pumps, ozone & blowers.

An example of what you will need is:

1 x 4 pin cable (2 speed pump)
2 x 3 pin cable (1 speed pump, blower or ozone)
1 x 2 pin cable (Spa light)

You have your existing cables so these are not supplied with the packs, you typically just need some AMP plugs and the AMP chrimps.

Includes

Warranty

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, the pack comes with a full 2 years parts warranty, coupled with our in-house technical team offering guidance.

The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
This system has been designed to be able to run from the comfort of your home or whilst you are at work or away.
With the addition of the new WiFi receiver, the BP200 can be operated via Android®, iPhone®, iPod touch® or iPad®
This is a generic unlicensed control box.
This unit must be fitted by a competent individual or tradesman.
Incorrect installation could invalidate the warranty.

Associated Documents
