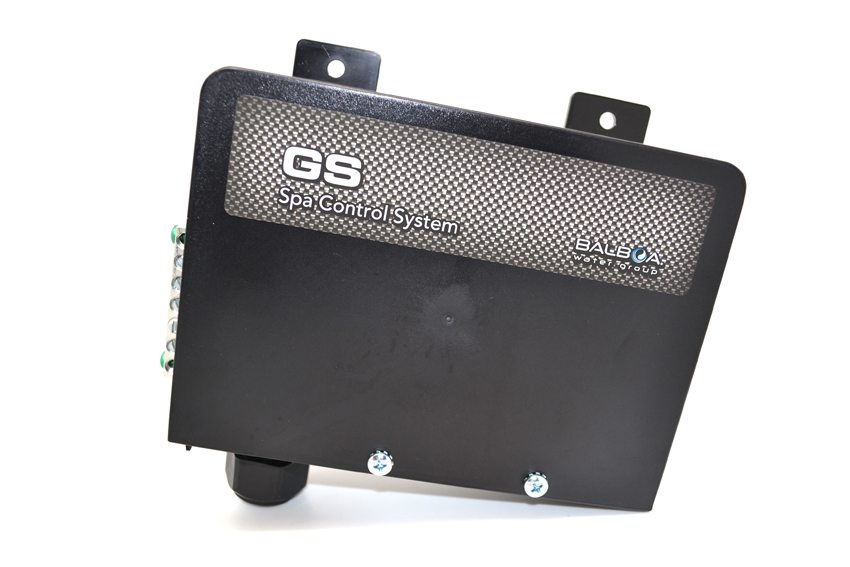

Balboa GS100 Control Box (New Style)

This is the all new GS100 control box available for 2kw and 3 kw systems

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Balboa GS100 Control Box (New Style) - 2kw	Balboa GS100 Control Box (New Style) - 2kw	21195	56461-03	£215.89 £179.91	- +	Available for Back Order
Balboa GS100 Control Box (New Style) - 3kw	Balboa GS100 Control Box (New Style) - 3kw	43025	56300-03	£253.69 £211.41	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

We are The UK's Official Distributor for Balboa Water Group.

Part Number 56461-03 has an RRP including VAT of: £383.14
- Part Number 56300-03 has an RRP including VAT of: £383.14

This is the all new Balboa GS100 Control Box, ideal for small roto mold spas with tight spaces to work in and small spa system upgrades.

The box must be matched to the correct heater and vice versa, take care to do so otherwise it invalidates the warranty

If you want the heater we do both - 1.5" connection heaters and 2" connection heaters here

Dimensions

(L) 190mm x (H) 137mm x (D) 60mm (main plastic unit only)

Specifications

Volts: 230vac / Hz: 50
Specification: Pump 1: Two-speed
Heater: x 1 2kW, Heater is a separate unit (sold separately) which plugs on to the board.
Ozone: x 1
Light: x1

Compatible with: Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. Please check the button configuration setting prior to ordering as you may need a different overlay....

Ideal For

Replacement for Wellis Hot Tub p/n ACM0598

Additional Info

This is an entry level system. It has a small and easy to mount and set up the control box with a separate remote heater.

2 dip switches allow you to program time out functions for both speeds of the pump via

This unit must be fitted by a competent individual or tradesman.
