SKU
G29

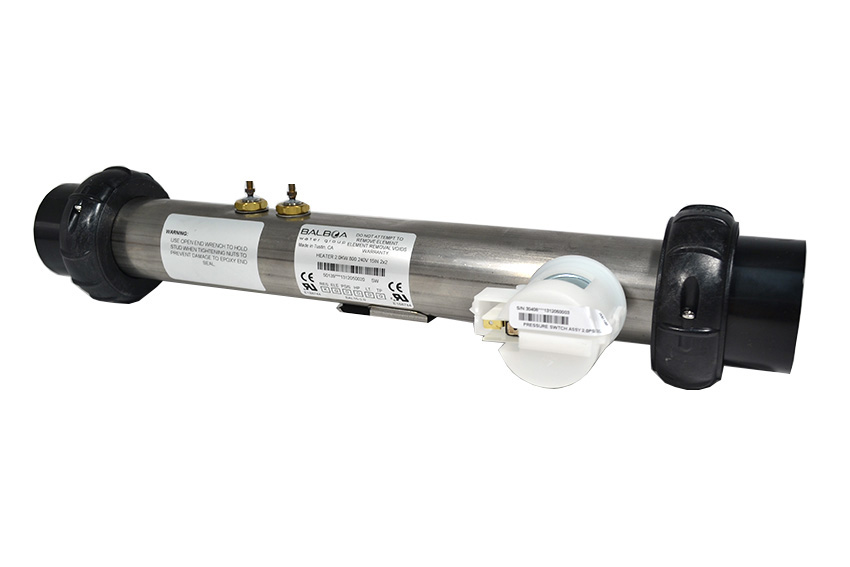

Suits Balboa Heaters with Pressure Switch

Suits Balboa 2Kw / 3Kw hot tub heaters with pressure switch to fit the metal box systems.

Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa Heaters with Pressure Switch - 2Kw Balboa Heaters with Pressure Switch - 2Kw 32 50139
£131.72 £109.77
- +
1 In stock
Suits Balboa Heaters with Pressure Switch - 3Kw Suits Balboa Heaters with Pressure Switch - 3Kw 265 58053
£131.72 £109.77
- +
4 In stock
Add to Wishlist

In-stock orders dispatched:14:00

These units are PRE M7 (sensor style) and comes complete with a 2-PSI pressure switch2 inch gasket seals and 2-inch collars.

The 2KW Balboa Heater sticker will say- 2KW Balboa Heater - 240v 15"2x2" - ref. 50139.

The 3KW Balboa Heater sticker will say- 3KW Balboa Heater - 240v 15" 2x2" - ref. 50145 or 50146 or 58053

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unionS): 19.5 inches

KW: 2.0 KW: 3.0
Amps: 8.0-8.5 Amps: 11.5-12.0
Volts: 230 Volts: 230
Hz: 50 Hz: 50

2 & 3Kw - Spaform (specifically SF100 systems), Hydrospa, Aegean, Catalina, Hydropool, , Marquis Spa, M3 TUV, Lite leader box, Canadian Spa

The Balboa Heater with Pressure Switch 2kw (15") 50139 has been known to be used with the following systems, but always check the heater number to ensure an exact match

51690-10 51690-10 51802-01 51802-02 51802-03 51980-03
51802-01 51980-04 52077 52088 52095 52095-01
51802-02 52109 52109-01 52121 52132 52135
51802-03 52157 52175 52175-01 52175-02 52597
51980-03 52622 52686 52686-01 52686-02 52783
51980-04 53008 53308 53308-01 53308-02 53327
52077 54136 54136-01 54136-02 54179

Balboa Heaters with Pressure Switch 3kw (15") 50145 have been known to be used with the following systems, but please check the heater number to ensure an exact match

51690-06 51690-06 51690-07 51690-08 51690-09 51899
51690-07 51899-01 51899-02 51899-04 51899-05 51918-03
51690-08 51918-04 51918-05 51918-06 51975-03 51975-04
51690-09 51975-05 51980 51980-01 51980-02 51996-02
51899 51996-03 51996-04 52090 52175-03 52239
51899-01 52239-01 52239-02 52239-03 52283 52283-01
51899-02 52283-02 52283-03 52308 52308-01 52440
51899-04 52440-01 52455 52455-01 52455-02 52642
51899-05 52642-01 52739 52739-01 52739-02 52739-03
51918-03 53248 53497 53497-01 53497-02 53875
51918-04 54123-H 54133-H

When connecting the heater power wires to your new heater terminals hold the base of the terminal with a spanner or long nose pliers before tightening the two 10mm nuts on top, this removes the potential of splitting the terminal seal and voiding your warranty.

Icon Label Type Size Download
pdf Balboa Heater Element Features pdf 1.5 MB Download
