Balboa VL403 Topside Control Panel with Overlay Options

The VL403 has 3 or 4 buttons available.. choose yours inside

Grouped product items
Product Name SKU MPN Price Qty Stock
BALBOA VL403 Back Panel BALBOA VL403 Back Panel 50561 54130
£140.23 £116.86
- +
Available for
Back Order
Balboa VL403 Overlay, 3 button 1p Balboa VL403 Overlay, 3 button 1p 4078 10753
£13.82 £11.52
- +
2 In stock
Balboa VL403 Overlay, 4 button 1p Balboa VL403 Overlay, 4 button 1p 4081 11448
£12.94 £10.78
- +
3 In stock
Balboa VL403 Overlay, 1p + air Balboa VL403 Overlay, 1p + air 21262 10671
£13.40 £11.17
- +
6 In stock
Balboa VL403 Overlay, 4 button 2p Balboa VL403 Overlay, 4 button 2p 4079 11671
£13.34 £11.12
- +
2 In stock
Add to Wishlist

In-stock orders dispatched:14:00

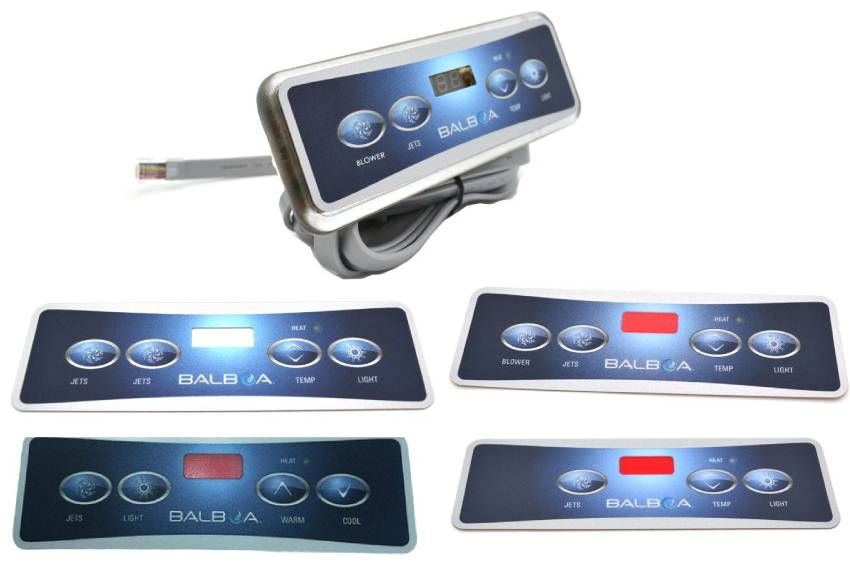

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL403 topside panel has either 3 or 4 buttons overlays available.

Select SKU 50561 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

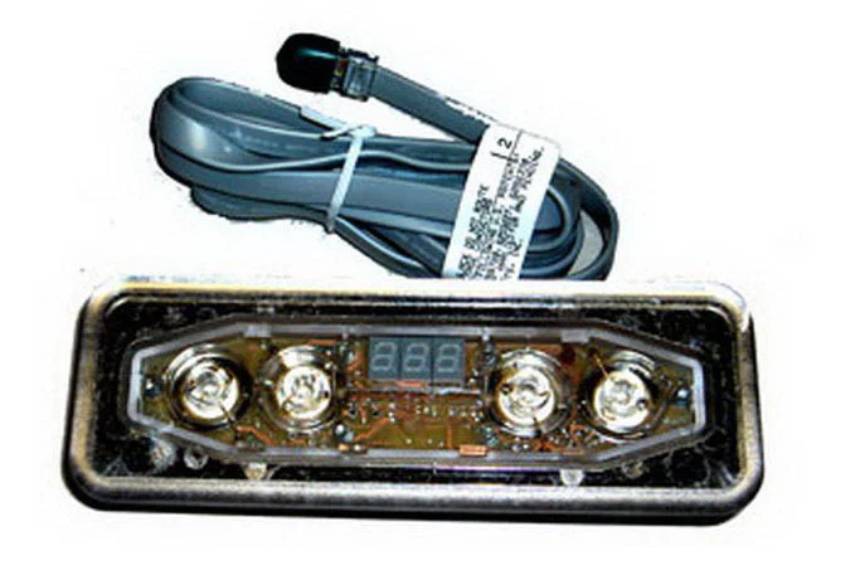

The VL403 is part of Balboa's VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LED displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 54130 on a label.

  • LED Displays
  • Large, easy-to-read displays
  • Reliable communication interface
  • Maintenance reminders & alerts
  • Water-resistant connectors

Width: 160mm (6.3")
Height: 56mm (2.2")

PICK yours:

Button configurations of overlays:

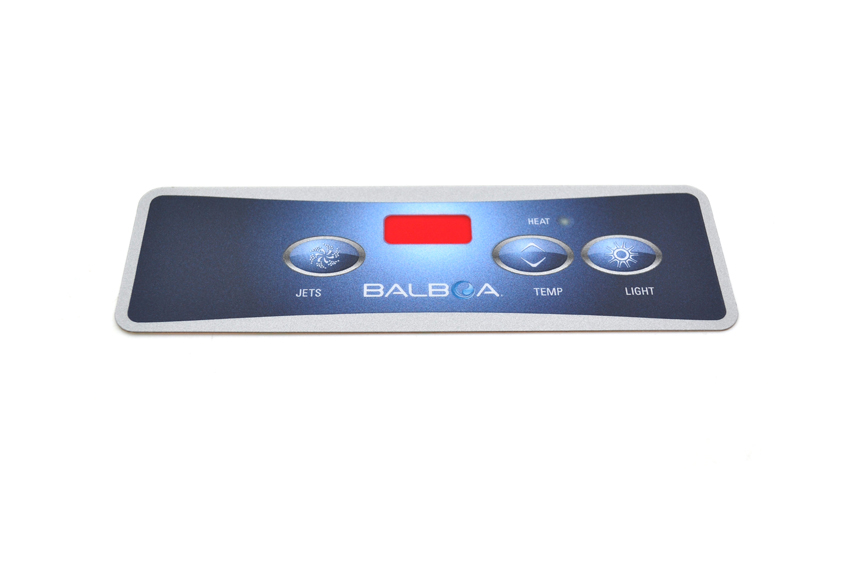

P/N 10753: Jets, Temp, Light

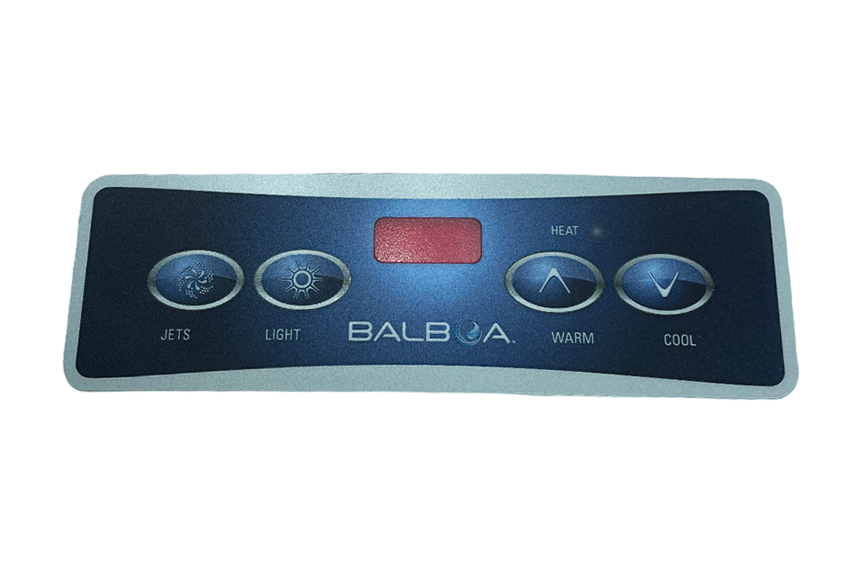

P/N 11448: Jets, Light, Warm, Cool

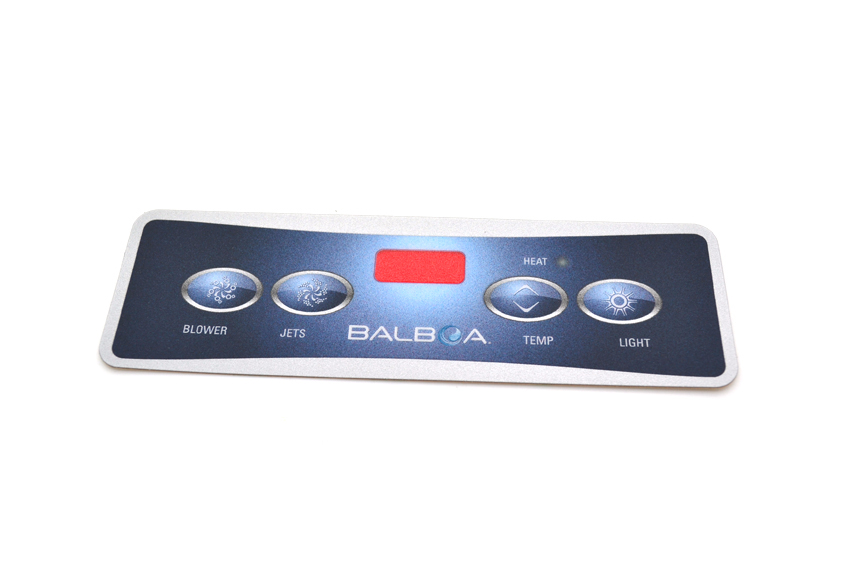

P/N 10671: blower + jets + temp + light

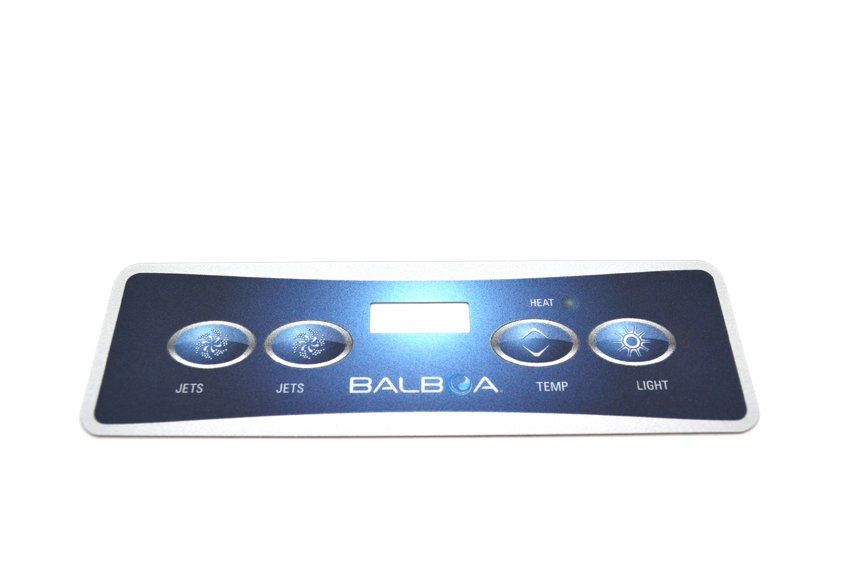

P/N 11671: jets + jet + temp + light

It fits GS500, 500Z, 501, 501Z, Duplex control systems & GS100 (New Style)

Wellis P/N ACM0367

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
