SKU
G27782

Balboa VL401 Topside Control Panel with Overlay Options

The VL401 has 3 or 4 buttons available.. choose your overlay

Grouped product items
Product Name SKU MPN Price Qty Stock
BALBOA VL401 Panel Only BALBOA VL401 Panel Only 50559 52424-01
£82.93 £69.11
- +
4 In stock
Balboa VL401 Overlay, 4 button 1p + air Balboa VL401 Overlay, 4 button 1p + air 4005 10669
£15.71 £13.09
- +
4 In stock
Balboa VL401 Overlay, 4 button 1p Balboa VL401 Overlay, 4 button 1p 4007 11885
£13.40 £11.17
- +
Available for
Back Order
Balboa VL401 Overlay, 3 button 1p Balboa VL401 Overlay, 3 button 1p 2854 10839
£13.34 £11.12
- +
5 In stock
Add to Wishlist

In-stock orders dispatched:14:00

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL401 topside panel has either 3 or 4 buttons overlays available.

Select SKU 50559 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

The VL401 is part of Balboa's VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

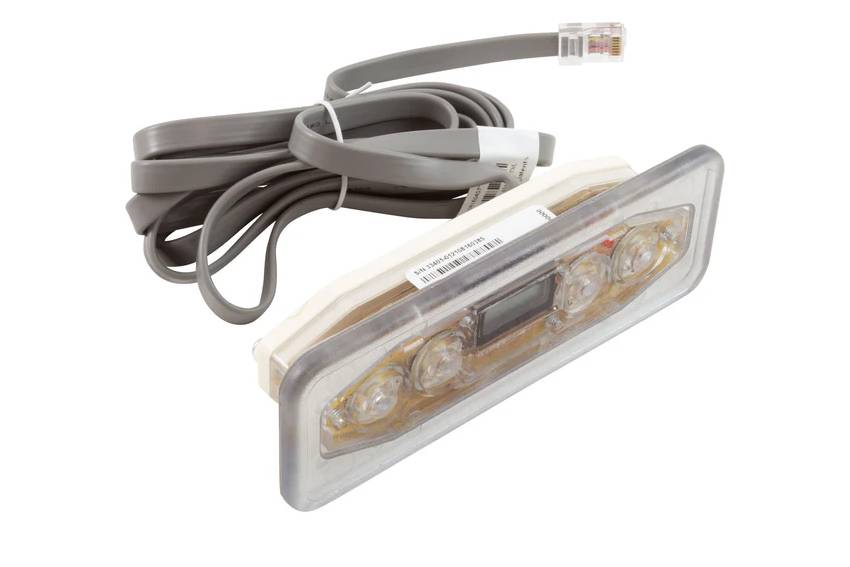

For identification the rear panel may have the s/n 52424 or 52424-01 on a label.

  • LCD Displays
  • Large, easy-to-read displays
  • Reliable communication interface
  • Maintenance reminders & alerts
  • Water-resistant connectors

balboa topside panel vl240

Width: 160mm (6.3")
Height: 56mm (2.2")

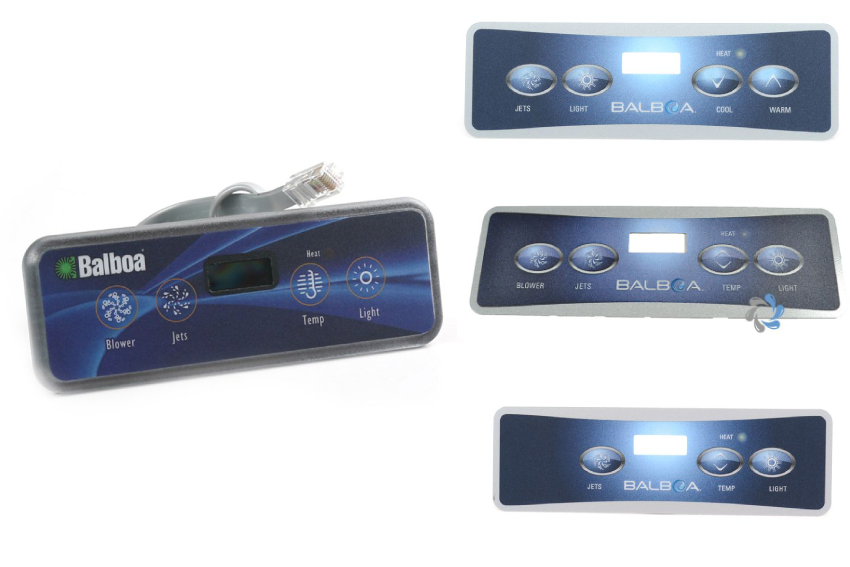

See photo gallery for button configurations:

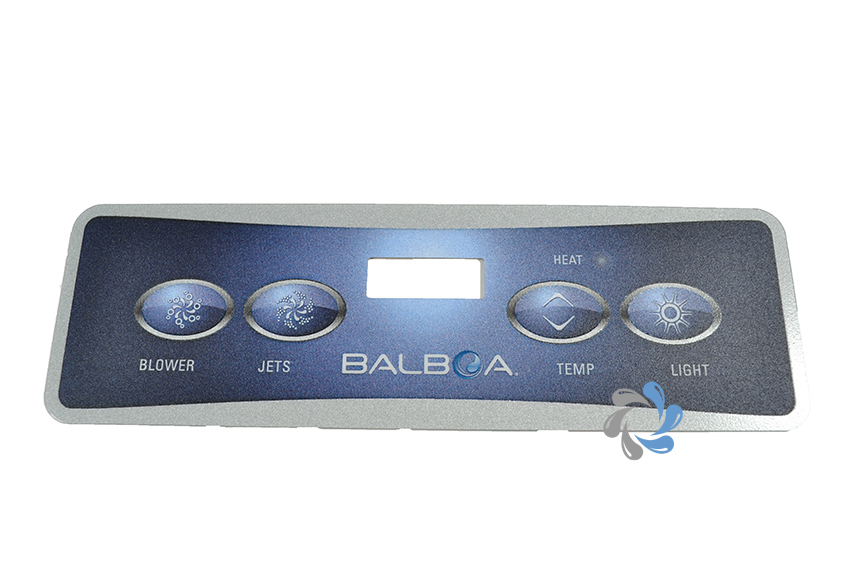

Balboa P/N - 10669: blower, jets, temp, light

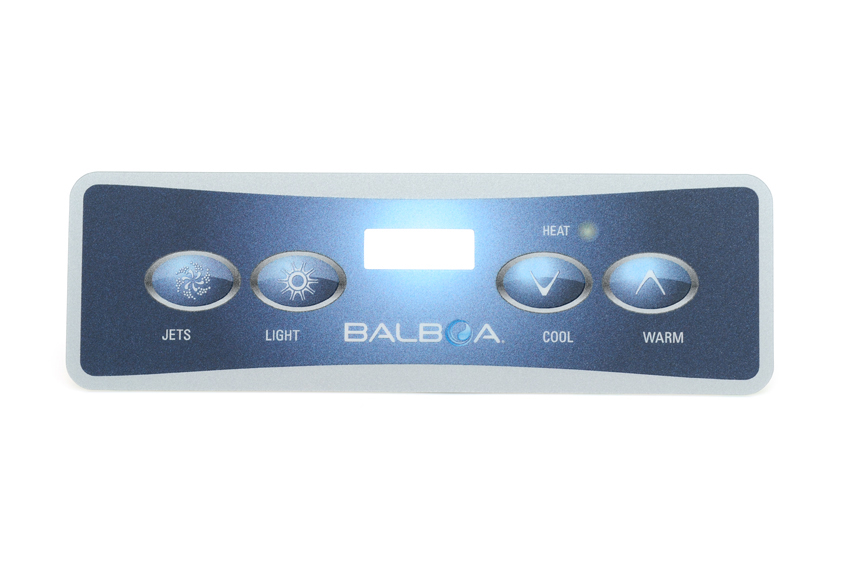

Balboa P/N -11885:  jets + light + cold + warm

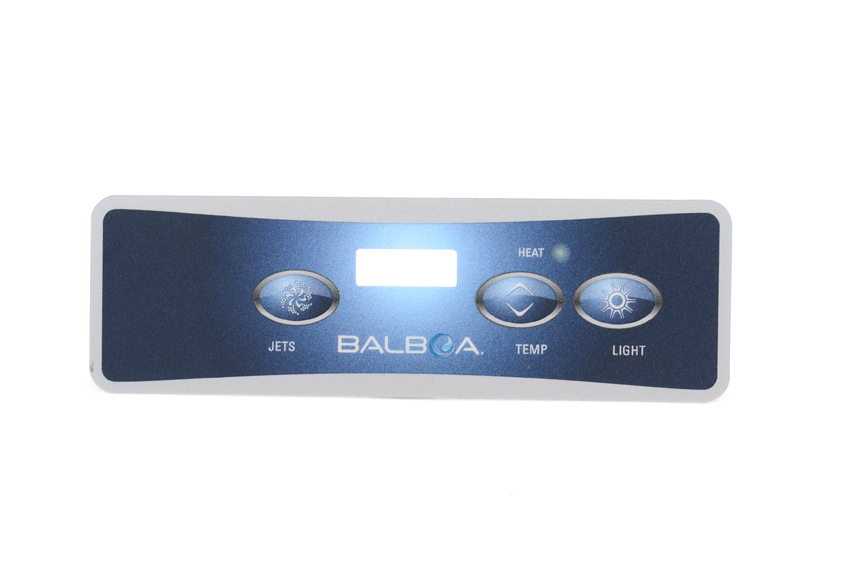

Balboa P/N -10839:   jets + temp + light

It fits GS500, 500Z, 501, 501Z, Duplex Value system, Freeflow Spas, Leisurerite Spa, M1 series & GS100 (New Style)

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
