Balboa VL402 Topside Control Panel with Overlay Options

The VL402 has 3 or 4 buttons available.. choose your overlay

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Balboa VL402 Back Panel	Balboa VL402 Back Panel	50560	51876	£94.38 £78.65	- +	Available for Back Order
Balboa VL402 Overlay, 3 button 1p	Balboa VL402 Overlay, 3 button 1p	834	10721	£13.82 £11.52	- +	Available for Back Order
Balboa VL402 Overlay, 4 button 1p & air	Balboa VL402 Overlay, 4 button 1p & air	833	10668	£13.40 £11.17	- +	4 In stock

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL402 topside panel has either 3 or 4 buttons overlays available.

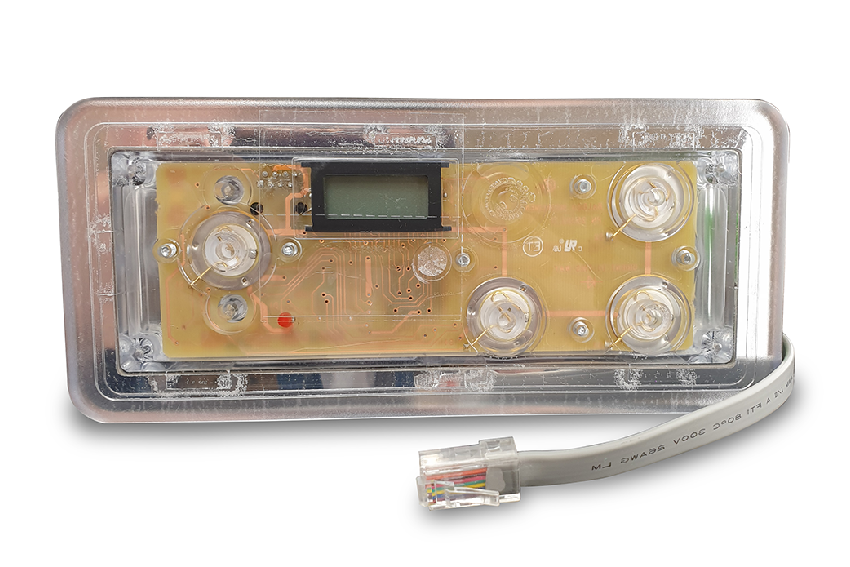

Select SKU 50560 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

The VL402 is best known as working with the Spaform SF172 system.

It is part of Balboa's VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 52818 on a label.

Features

LCD Displays
Large, easy-to-read displays
Reliable communication interface
Maintenance reminders & alerts
Water-resistant connectors

balboa topside panel vl240

Dimensions

Width: 186mm (6.3")
Height: 82mm (2.2")

Specifications

PICK YOURS:

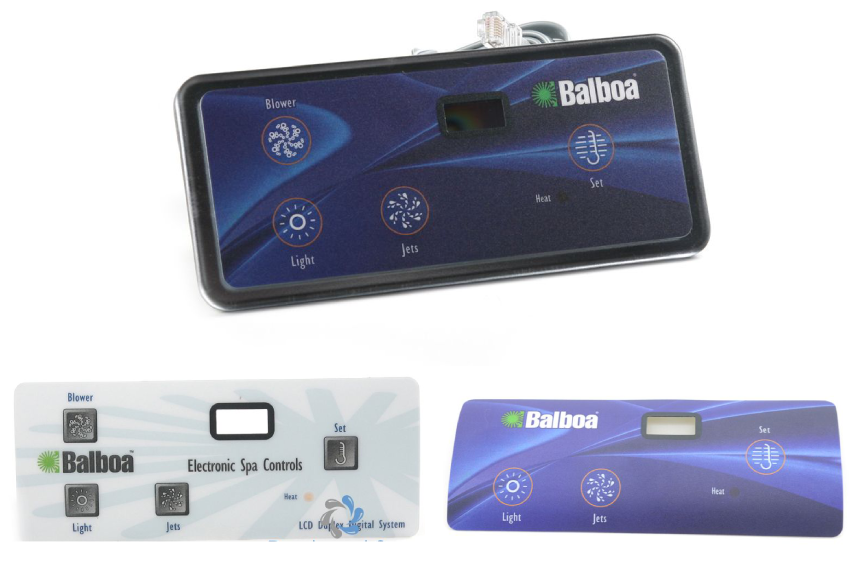

See photo gallery for button configurations:

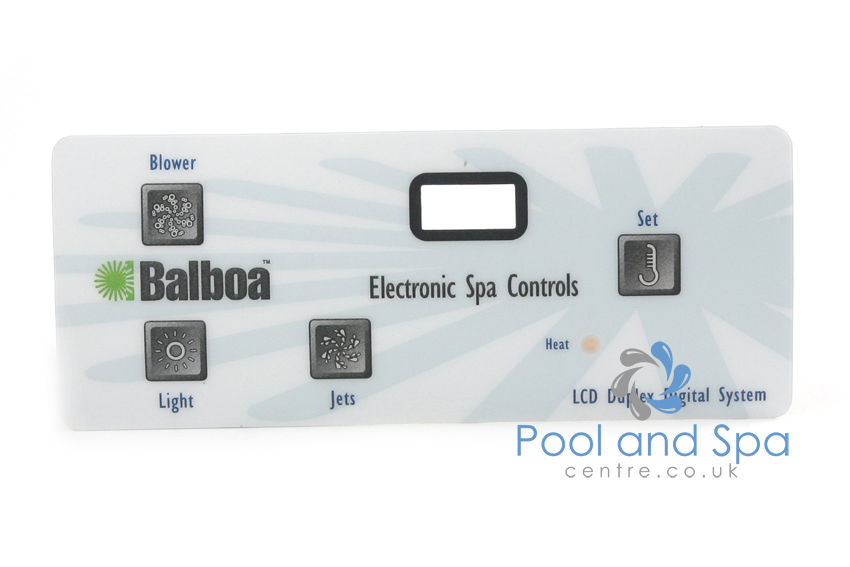

Balboa P/N - 10668: overlay -jets + blower + light + set

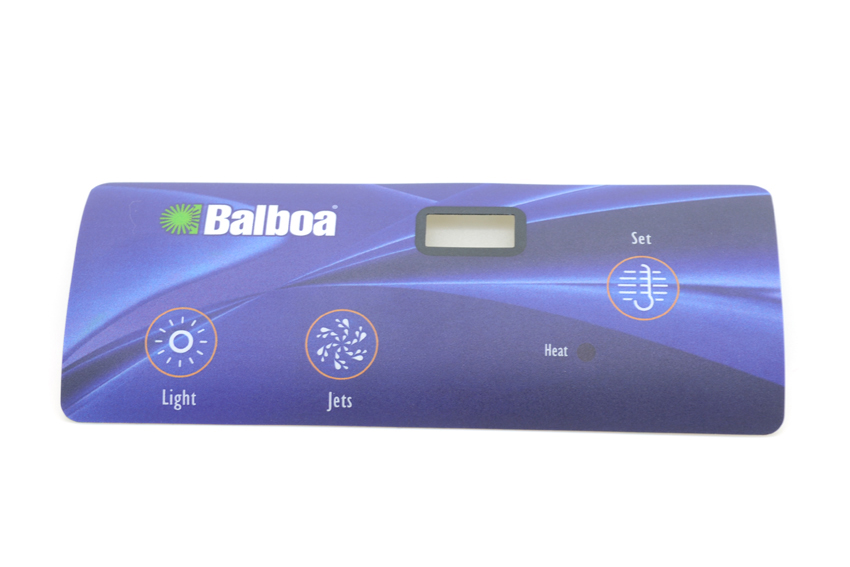

Balboa P/N -10721: jets + light + set

Ideal For

It fits GS500, 500Z, 501, 501Z, Duplex Value system, Freeflow Spas, Leisurerite Spa, M1 series & GS100 (New Style)

Additional Info

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
