SKU
18201

Balboa VL240 Topside (Width: 135mm) with Overlay

The VL240 has 3 or 4 buttons available.. choose your overlay

Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa VL240 no overlay Balboa VL240 no overlay 4147 53644
£98.89 £82.41
- +
8 In stock
Balboa VL240 Overlay, 3 button 1p Balboa VL240 Overlay, 3 button 1p 4029 11765
£10.81 £9.01
- +
3 In stock
Balboa VL240 Overlay, 4 button 1p Balboa VL240 Overlay, 4 button 1p 4027 11745
£10.45 £8.71
- +
13 In stock
Balboa VL240 Overlay, 4 button 2p Balboa VL240 Overlay, 4 button 2p 4028 11764
£10.82 £9.02
- +
5 In stock
Balboa VL240 Overlay, 4 button 1p & air Balboa VL240 Overlay, 4 button 1p & air 4025 11520
£13.40 £11.17
- +
5 In stock
Add to Wishlist

In-stock orders dispatched:14:00

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL240 topside panel has either 3 or 4 buttons overlays available.

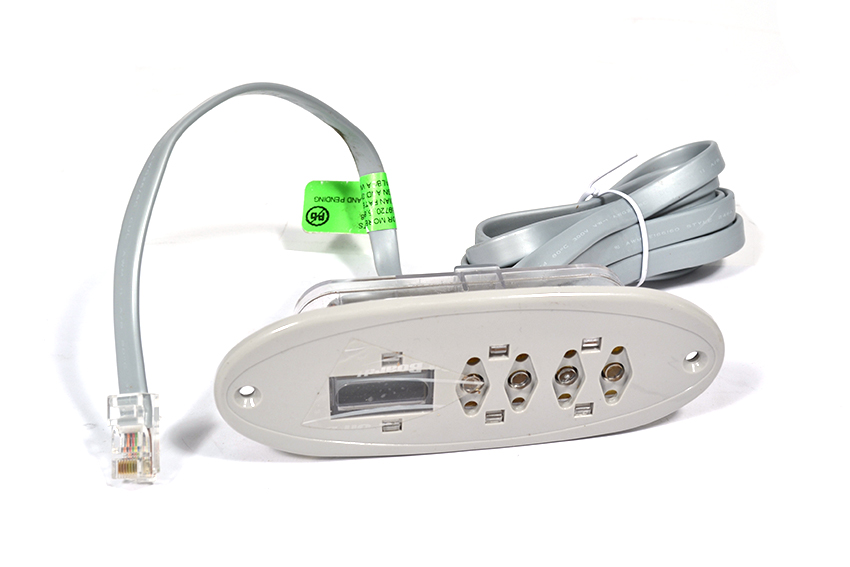

Select SKU 4147 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

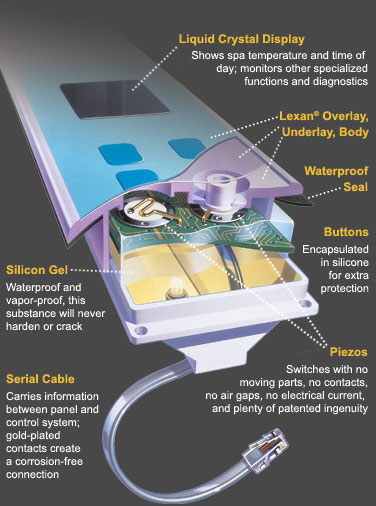

The VL240 is part of Balboa's VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 53644 on a label. May also be labelled as MVP240 with s/n 54678.

  • LCD Displays
  • Large, easy-to-read displays
  • Reliable communication interface
  • Maintenance reminders & alerts
  • Water-resistant connectors

balboa topside panel vl240

Width: 135mm (5.3")
Height: 48mm (1.9")

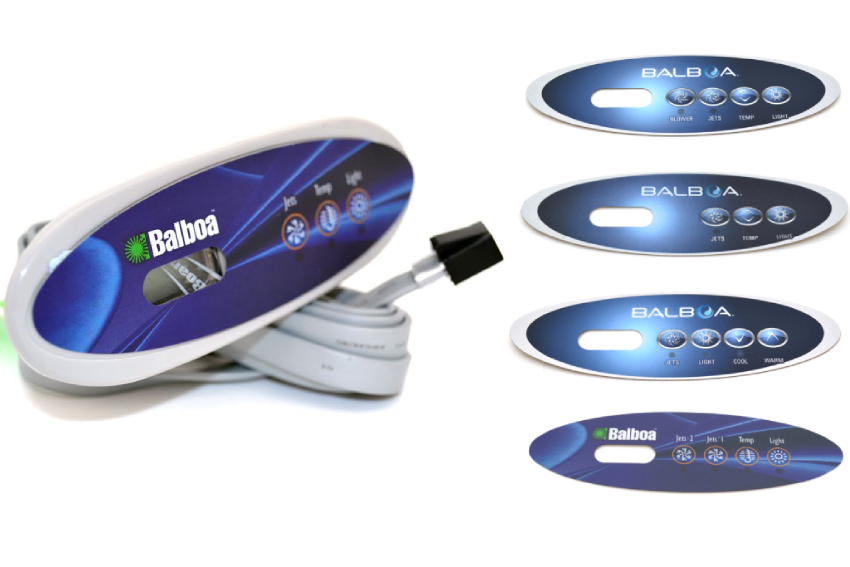

See photo gallery for button configurations:

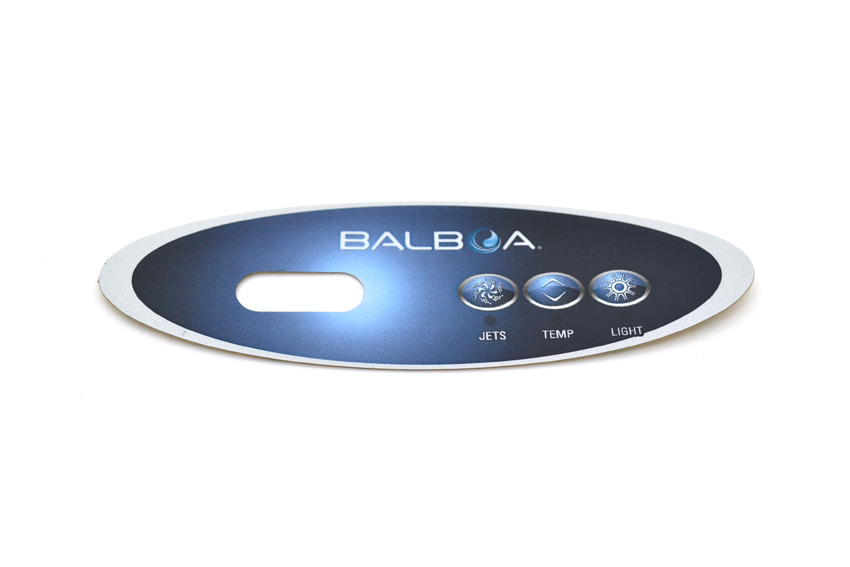

Balboa P/N - 11765: jets, temp, light

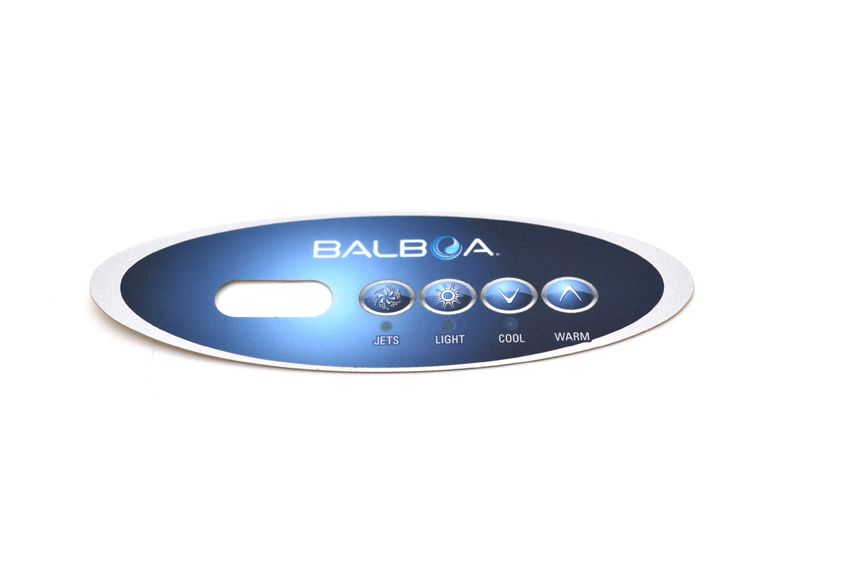

Balboa P/N -11745: jets, cool, light, warm

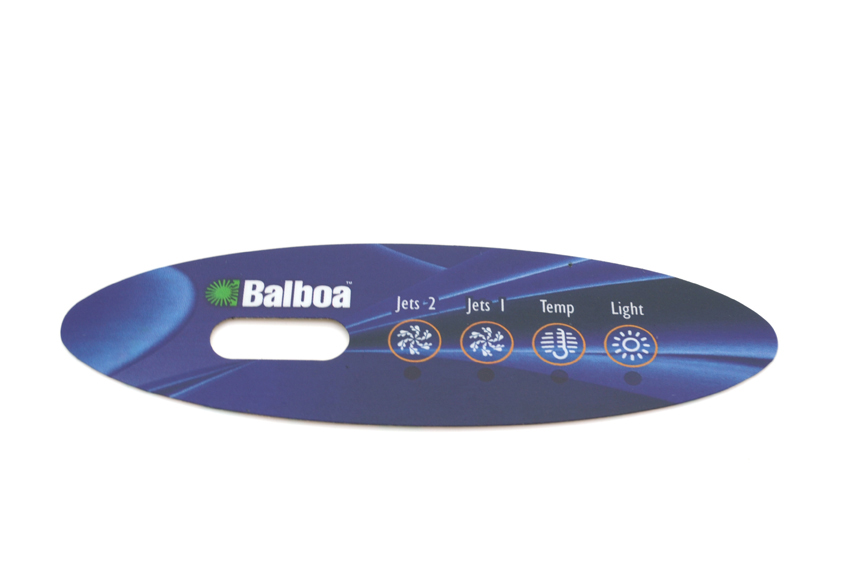

Balboa P/N -11764:   jets 1, jets 2, temp, light

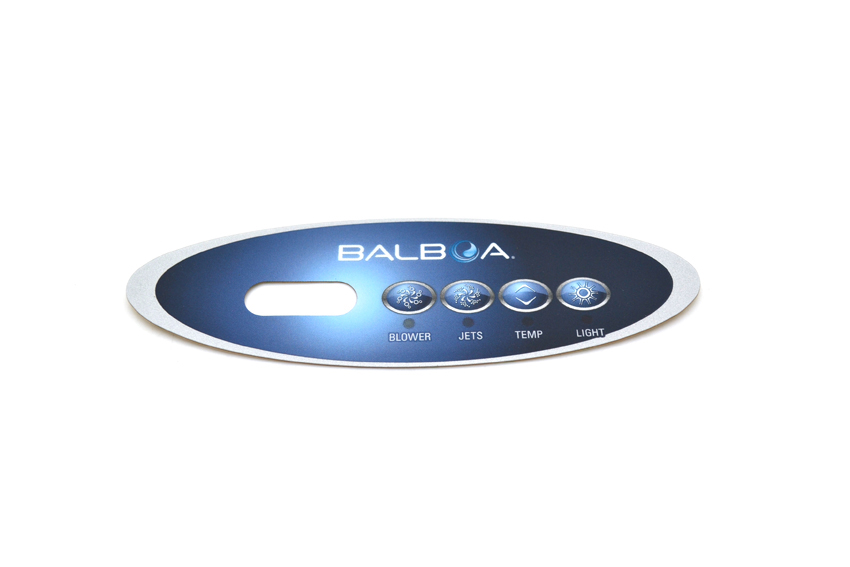

Balboa P/N -11520: blower, jets, temp, light

It fits GS500, 500Z, 501, 501Z.

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
