SKU
18234

Balboa VL701S Topside Control Panel - 7 button 2p & air

Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa VL701S no overlay Balboa VL701S no overlay 4156 54112CE2
£130.68 £108.90
- +
10 In stock
Balboa VL701S Overlay, 7 button 2p & air Balboa VL701S Overlay, 7 button 2p & air 2905 10430
£13.40 £11.17
- +
9 In stock
Balboa VL701S Overlay, 5 button 1p Balboa VL701S Overlay, 5 button 1p 832 10429
£16.48 £13.73
- +
1 In stock
Balboa VL701S Overlay, 6 button 1p & air Balboa VL701S Overlay, 6 button 1p & air 974 10868
£13.34 £11.12
- +
9 In stock
Balboa VL701S Overlay, 6 button 1p & air Balboa VL701S Overlay, 6 button 1p & air 830 10328
£13.34 £11.12
- +
5 In stock
Balboa VL701S Overlay, 6 button 2p Balboa VL701S Overlay, 6 button 2p 831 10402
£10.45 £8.71
- +
6 In stock
Balboa VL701S Overlay, 7 button 2p & aux Balboa VL701S Overlay, 7 button 2p & aux 4008 11159
£13.34 £11.12
- +
3 In stock
Add to Wishlist

In-stock orders dispatched:14:00

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL701S topside panel has either 5,6 or 7buttons overlays available.

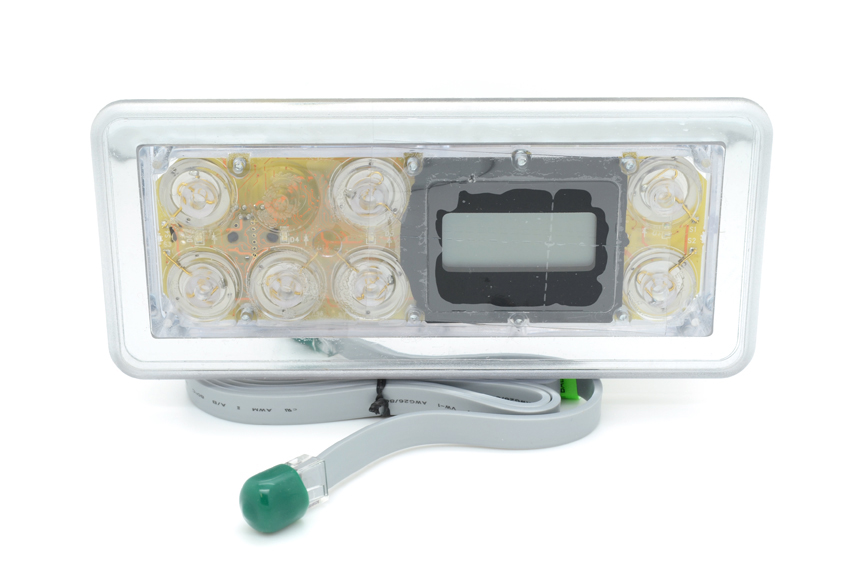

Select SKU 4156 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

The VL701S is the most common of Balboa topside controllers in the UK, due to the fact is is used in the Spaform SF100 systems, it is part of Balboa's VL standard range & comes complete with a telephone cord style connector.

It is designed to work with Global Series (GS) Series hot tub control systems with an "S" designation like GS501S. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 54112-01 on a label.

  • This panel has been referred to as the Serial Standard panel in the past.
  • LCD Displays
  • Large, easy-to-read displays
  • Reliable communication interface
  • Maintenance reminders & alerts
  • Water-resistant connectors

Width: 188mm (7.4")
Height: 84mm (3.3")

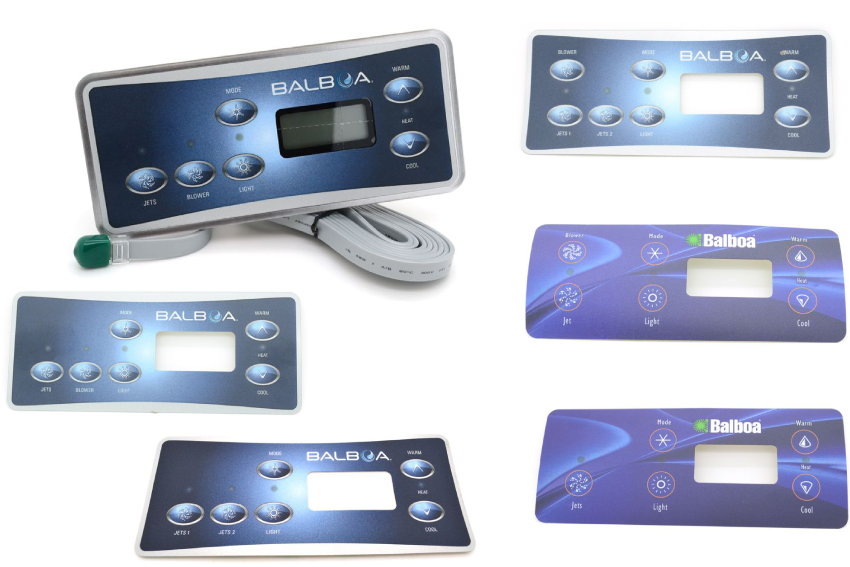

See photo gallery for button configurations:

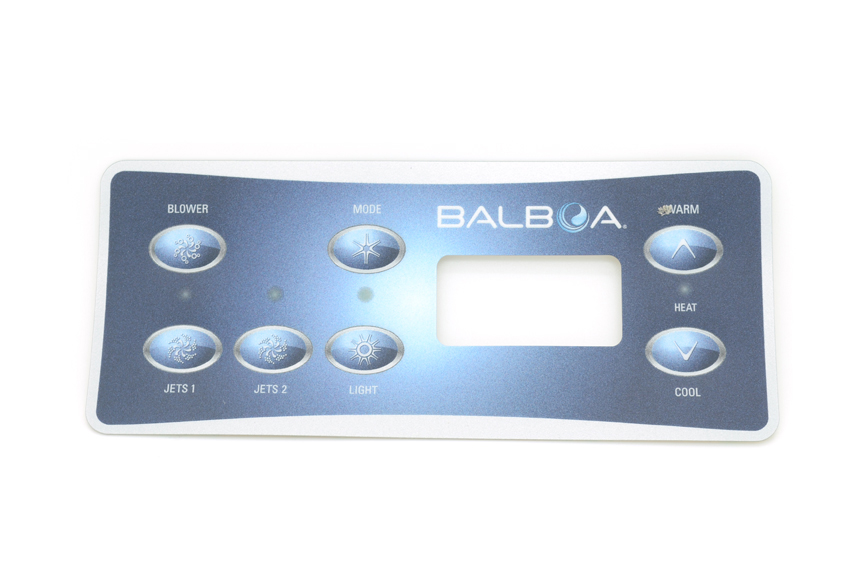

Balboa P/N - 10430: jets 1 + jets 2 + light + blower + mode + warm + cool

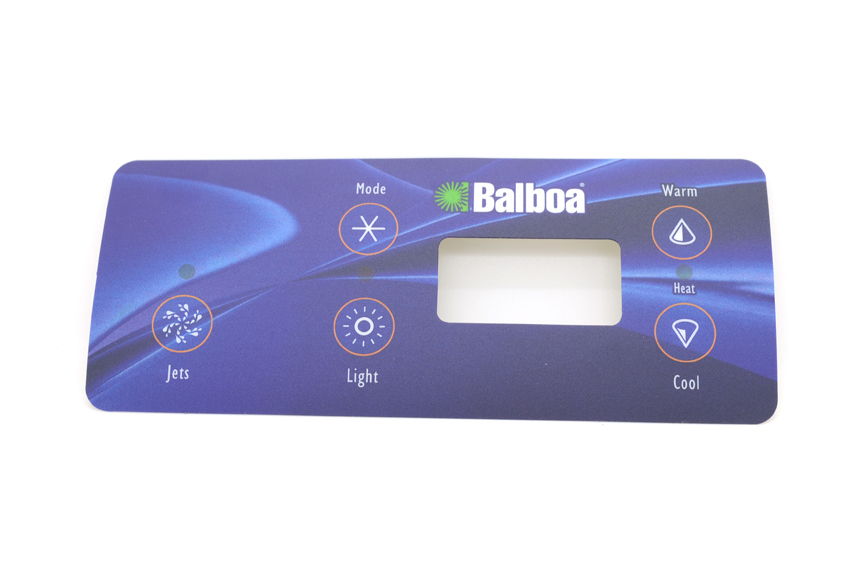

Balboa P/N -10429:  jets + light + mode + warm + cool

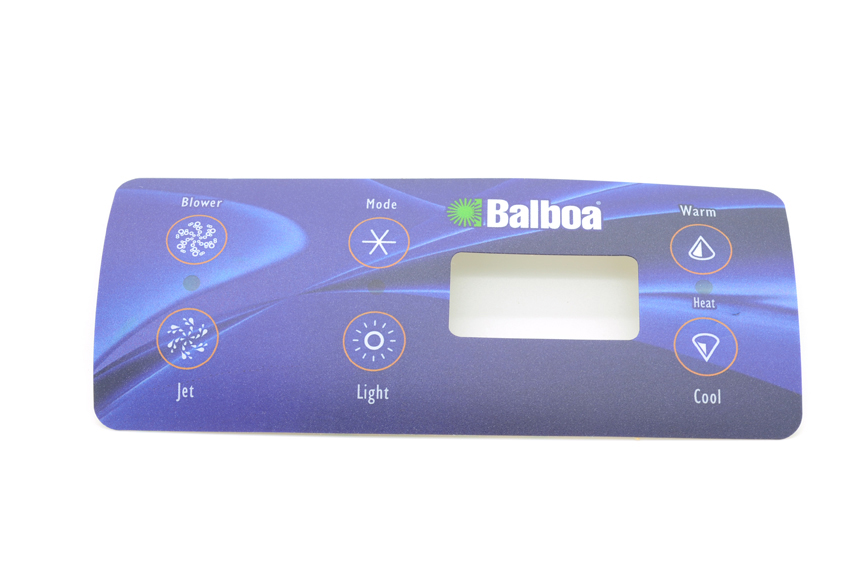

Balboa P/N -10868:  jets + blower + light + mode + warm + cool

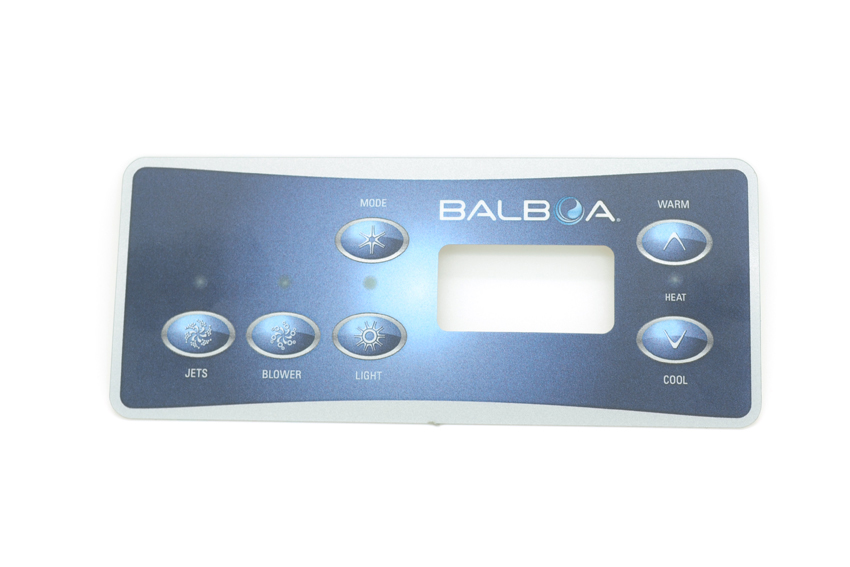

Balboa P/N -10328: jets + blower + light + mode + warm + cool

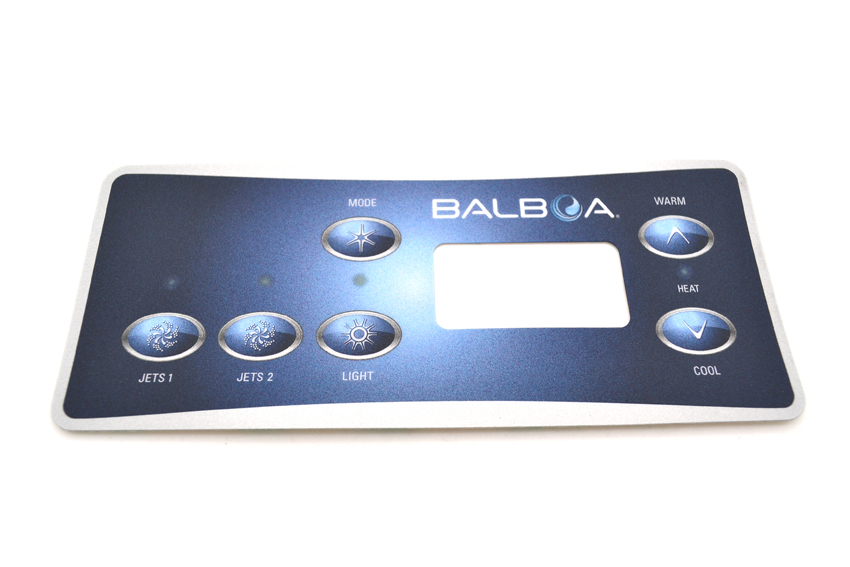

Balboa P/N - 10402: jets 1 + jets 2 + light + mode + warm + cool

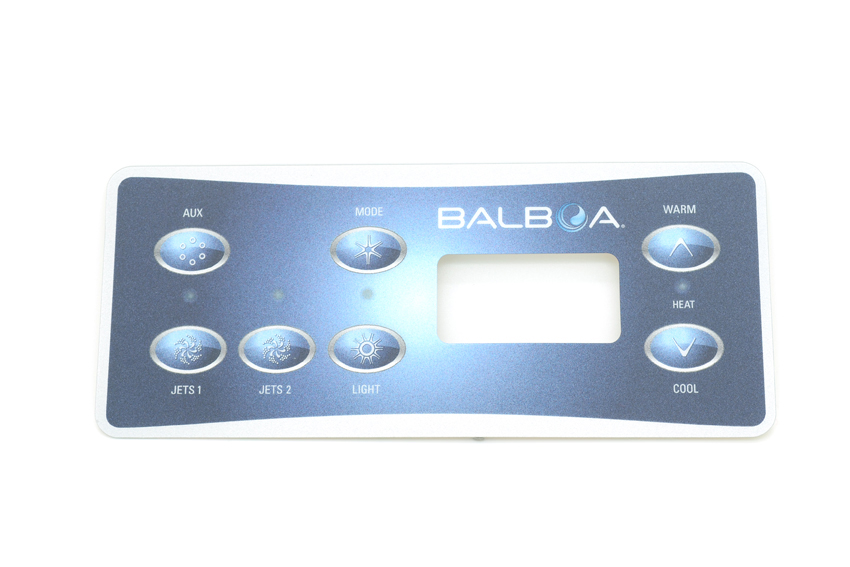

Balboa P/N - 11159:aux + mode + warm + jets 1 + jets 2 + light + cool



This spa topside fits the Spaform SF100 range of tubs, it also is compatible with the .GS501SZ, 510S, 510SZ, 511SZ series, it also fits , 2005 LE, M3TUV. , Hydropool, Canadian Spa, Beechcoomber, Catalina, Aegean & Hot Tubs Direct.

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader

Sometimes the overlay design and colour may vary, this has no bearing on functionality & installation
