Bayrol Analyt Dosing Systems

Starting at £5,293.51 £4,411.26

The latest Analyt 2 Controller provides further enhancements to the previous Analyt 2U-T.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Bayrol Analyt2	Bayrol Analyt2	2687		£5,293.51 £4,411.26	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

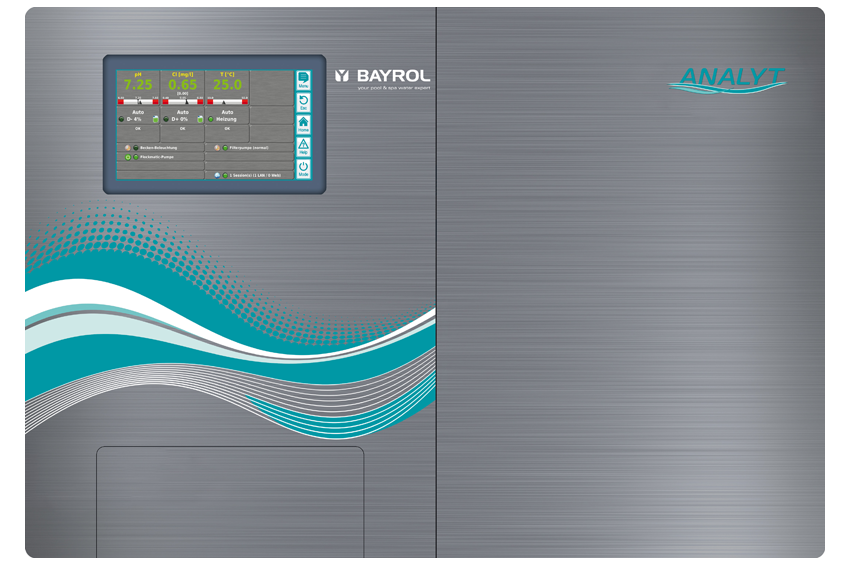

The latest Analyt 2 Controller provides further enhancements to the previous Analyt 2U-T, which lead the field in providing a fast and accurate response to changes in pool water chemistry. Proven features of the forerunner have been transferred to the new generation and the range of functionality and ease of operation have been further improved by utilising up to date technology. In addition, water temperature remains a standard feature.

Features

5.7" touch screen. All information is displayed in clear text.
pH regulation carried out via a pH sensor in a clear flow cell
Menu functions can be accessed by a soft touch on the surface of the screen
On line help. At any point in the menu and for any input value comprehensive help text can be accessed value comprehensive help text can be accessed
A copper-platinum amperometric cell is employed for the determination of free chlorine residual with mechanical self-cleaning
Extensive event log. The Analyt files all events such as alarms and calibrations
Constant temperature display & measurement
Variable dosing cut-out time on each function avoids overfeed situation
Computer communication is available using an RS422 interface if required allowing 30 days data storage and ability to alter without need for a manual at hand data i.e. measured values, set points values, alarm values etc., via the interface
Proportional control outputs
pH control both ways available on request
Attractive new design with cover to conceal components

Dimensions

Board size 630mm x 560mm with front cover

Specifications

Analyt 2 (Free Chlorine, temperature & pH)
Unit is board mounted including: inline strainer, clear acrylic flow cell, safety cut-out flow switch, flow control sampling valve, amperometric free chlorine cell, pH sensor and temperature sensor.

Analyt 3 (Free Chlorine, Redox, pH & Temperature)
Unit is board mounted including: inline strainer, clear acrylic flow cell, safety cut-out flow switch, flow control sampling valve, amperometric free chlorine cell, Redox and pH sensor.

Spare Parts

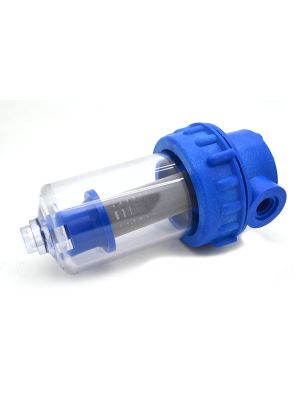

Strainer F20 0.25in

Additional Info

IMPORTANT

We would only ever recommend this dosing unit to be installed by a fully qualified professional swimming pool technician. Failure to do so could result in any warranty being void.

Associated Documents

Label	Type	Size	Download
Analyt Brochure	pdf	759.5 KB	Download
Analyt 3 Exploded Diagram	pdf	533.1 KB	Download
Analyt 2 Exploded Diagram	pdf	529.1 KB	Download
Analyt Manual	pdf	867.1 KB	Download
