Blagdon Minipond Pump Range

Blagdon Minipond Pump Range
Grouped product items
Product Name SKU MPN Price Stock
No options of this product are available.

In-stock orders dispatched:14:00

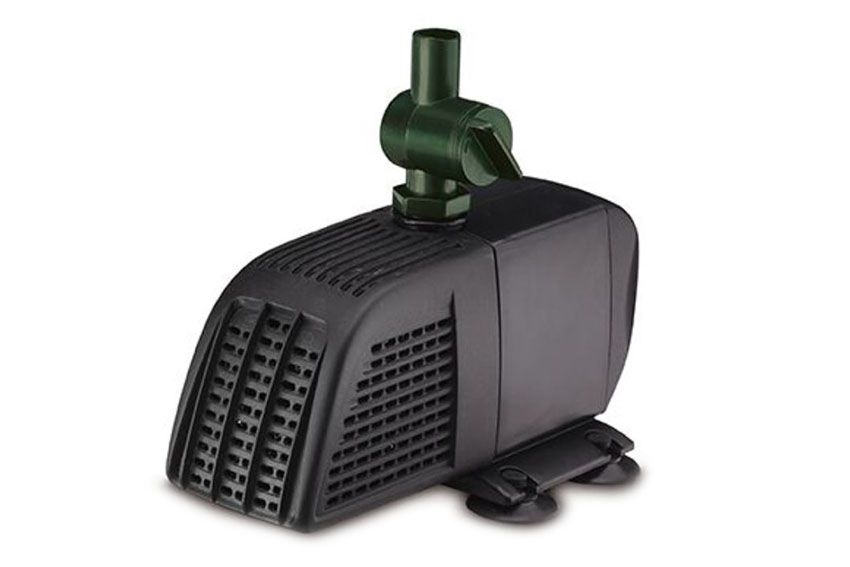

Blagdon Minipond pumps are high quality pumps manufactured with advanced technology, to run pond fountains and water features.

The powerful motors are easy to maintain having a single moving part impeller system featuring highly wear-resistant ceramic shaft design.

  • Low running cost
  • A comprehensive range of fountain heads, fittings and adjusters included
  • Advanced foam-free pre-filter cage
  • Optional pre-filter foam reduces daisy jet blockage
  • A comprehensive range of fountains heads, fittings and adjusters included
  • High performance, low maintenance design
  • Economical and easy to install; an enhanced, low velocity cage prevents the pump from clogging
Minipond 700 900
Cable Fitted 10 metres 10 metres
Voltage 230V 230V
Hertz 50Hz 50Hz
Watts 10 18
Safety Rating IP68 IP68
Maximum Depth 1.25 metre 2 metres
Maximum Lift 1.25 metres / 4'1" 2 metres / 6'6"



Wattage 48w
Flow rate 2000 ltr/hr
Main cable length 10m
IP rating IP68
Weight 2.9kg
Max pumping depth 2.2m
Max pumping height 2.2m
Hz 50Hz

Pump Performance / Flow Chart

Lift Flow rates lph Flow rates lph
2.0 meters - 100 lph
1.5 meters - 400 lph
1.0 meters 300 lph 550 lph
0.5 meters 520 lph 800 lph
0.0 meters 700 lph 872 lph



Flow is given as optimum rate.

The Minipond pump should be located on a firm and level base in the pond/water feature in a depth of at least 10cm, but no more than 1.25m (700) 2m (900).

It is advisable to keep the pump off the bottom of the pond to avoid silt entering the pump causing excessive wear and increasing pre-filter cleaning.



Minipond 2000

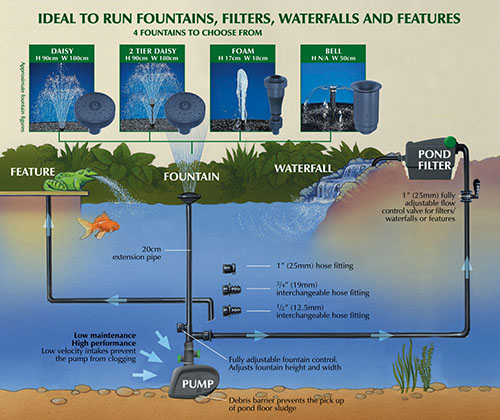

Minipond 2000 is Ideal to run fountains, waterfalls, filters and features.

Icon Label Type Size Download
pdf Minipond 700 & 900 Instructions pdf 1.7 MB Download
pdf Minipond 2000 Instructions pdf 4 MB Download
