Blagdon PowerSafe Switchbox

Blagdon PowerSafe Switchbox
Grouped product items
Product Name SKU MPN Price Stock
No options of this product are available.

In-stock orders dispatched:14:00

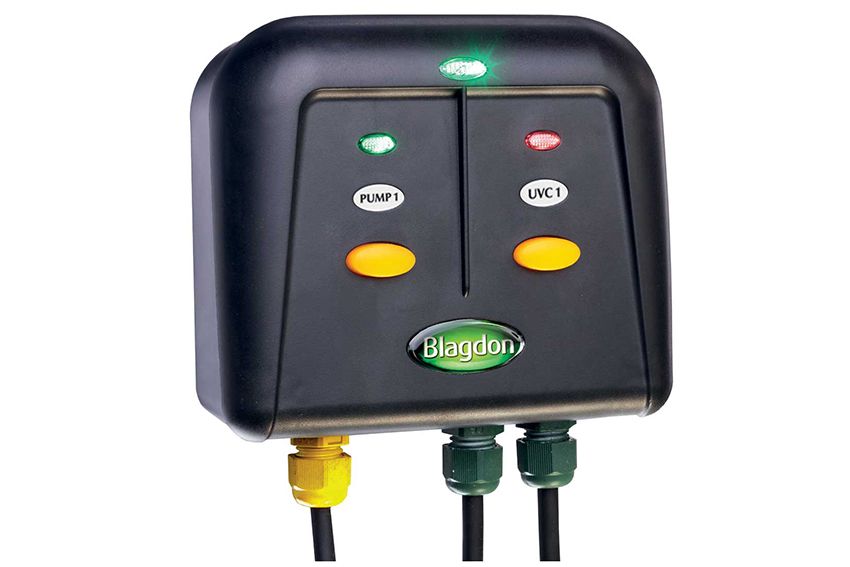

Quick and easy to install, the Powersafe range features an extra-large housing with removable circuit board to simplify wiring. Once wired, the Powersafe switchbox can be wall or post mounted using the easy to locate integrated mounting bracket. A range of power usage stickers for each switch are included to aid identification without the need to trace cables across your pond or garden.

Each switch features the unique, at-a-glance power status indication system, which enables quick identification of power on, power on standby and power failure due to a blown fuse. Each switch has an individual fuse to provide overload protection ensuring that even if one or more items of equipment fail, the other essential pond equipment is still able to function.

  • Designed for safe pond-side and garden electrical connections
  • At-a-glance power on, power standby and power off indicator lights
  • Weather-proof for outdoor use
  • Simple to install - integrated wall or post mounting bracket

Two way outlet - 2 individually fused power outlets for up to 1 x 1000W, plus 1 x 300W total unit capacity
Three way outlet - 2 individually fused power outlets for up to 1 x 1000W, plus 2 x 300W total unit capacity
Four way outlet - 2 individually fused power outlets for up to 1 x 1000W, plus 3 x 300W total unit capacity

Two way Oulet - Weight: 0.52kg , Voltage: 220/240V , Hz: 50/60
Three Way Outlet - Weight: 0.57kg , Voltage: 220/240V , Hz: 50/60
Four Way Outlet - Weight: 0.7kg , Voltage: 220/240V , Hz: 50/60

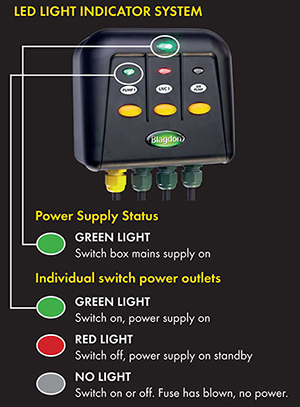

LED Indicator

Powersafe 2 Outlet Switchbox Includes:

  • Small flathead screwdriver
  • Set of 4 fixing bracket screws and plugs
  • 1.5 amp fuse
  • 5 amp fuse
  • Cable gland rubber plug
  • Set of identity labels



Powersafe 3 Outlet Switchbox Includes:

  • Small flathead screwdriver
  • Set of 4 fixing bracket screws and plugs
  • 1.5 amp fuse
  • 5 amp fuse
  • Cable gland rubber plug
  • Set of identity labels



Powersafe 4 Outlet Switchbox Includes:

  • Small flathead screwdriver
  • Set of 4 fixing bracket screws and plugs
  • 1.5 amp fuse
  • 5 amp fuse
  • Cable gland rubber plug
  • Set of identity labels
Icon Label Type Size Download
pdf Switchbox 2,3,4 Instruction pdf 631.7 KB Download
pdf Switchbox 2,3,4 Parts Diagram pdf 2.2 MB Download
