Certidos Closed Probe Systems

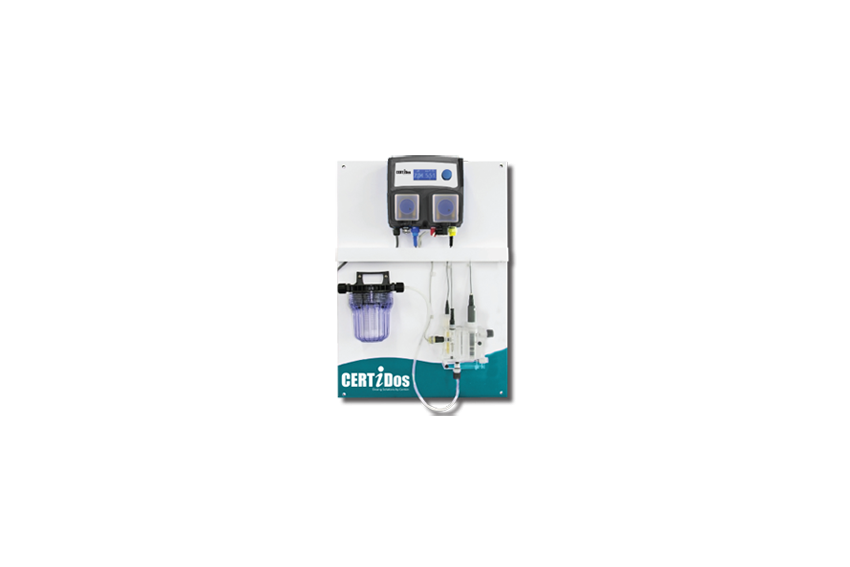

CertiDos WPCP

1. Controller with integral peristaltic pump
2. Pre-Filter
3. pH Electrode
4. Closed Amperometric Chlorine Probe
5. Flow Sensor
6. Probe Holder

Closed amperometric chlorine probe systems offer the most accurate free chlorine residual measurement available (displayed in ppm). The probe has an ion selective membrane which only allows the hypochlorus acid and hypochlorite ion to enter the probe sensor area making the probe pH independent. The WCP features a pH/Chlorine controller with integrated peristaltic dosing pumps to balance pH and sanitiser levels. As with open cells, closed probes are suitable for 24/7 use.

Board dimensions: 600mm x 800mm

Note: sample line must run at low pressure (max 0.5 bar) for all closed amperometric probes.

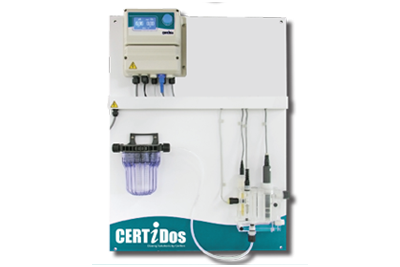

CertiDos LCP

1. Controller
2. Pre-Filter
3. pH Electrode
4. Closed Amperometric Chlorine Probe
5. Flow Sensor
6. Probe Holder

The LCP features a standalone controller which has a number of pump output options. External dosing pumps, mounted on tanks for example, can be connected to the controller for on/off or proportional control of pH and sanitiser levels. The probe has an ion selective membrane which only allows the hypochlorus acid and hypochlorite ion to enter the probe sensor area making the probe pH independent. As with open cells, closed probes are suitable for use for 24/7 use.

Board dimensions: 600mm x 800mm

Note: sample line must run at low pressure (max 0.5 bar) for all closed amperometric probes.
