SKU
G2849

Certikin 6" Liner Main Drain New Style

Starting at £67.67 £56.39

Certikin 6" Liner Main Drain
Grouped product items
Product Name SKU MPN Price Qty Stock

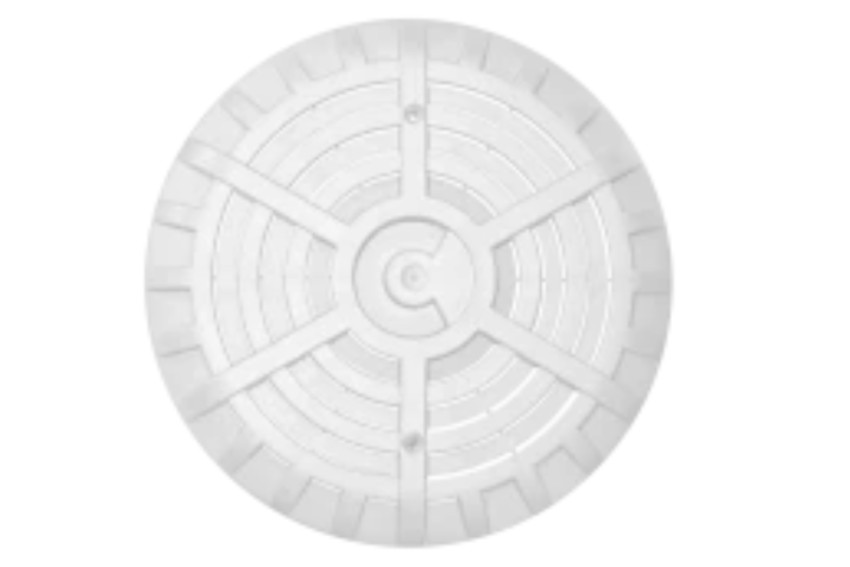

Certikin 6" Liner Main Drain New Style Certikin 6" Liner Main Drain New Style 3940 HD33LT
£67.67 £56.39
- +
Available for
Back Order

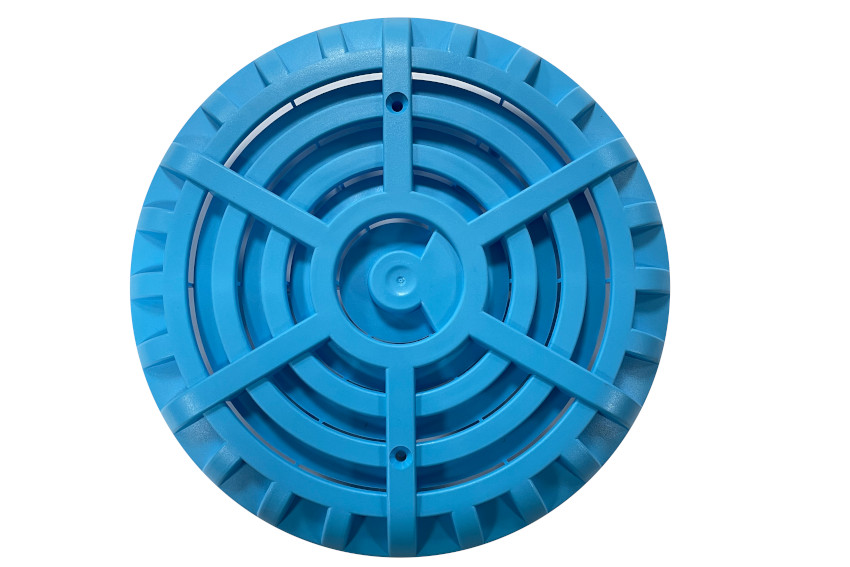

Certikin 6" Main Drain With Anti Vortex Grille - Mid Blue Certikin 6" Main Drain With Anti Vortex Grille - Mid Blue 50042 HD33L+MB
£115.99 £96.66
- +
Available for
Back Order
Certikin Main Drain C/W plug, bush & nipple - Mid Blue Certikin Main Drain C/W plug, bush & nipple - Mid Blue 50043 ZZ0352+MB
£125.12 £104.27
- +
Available for
Back Order
Certikin Main Drain C/W Hydro Relief Valve, Collection Tube, bush & nipple - Mid Blue Certikin Main Drain C/W Hydro Relief Valve, Collection Tube, bush & nipple - Mid Blue 50044 ZZ0353P+MB
£143.20 £119.33
- +
Available for
Back Order
Certikin 6" Main Drain With Anti Vortex Grille - Dark Blue Certikin 6" Main Drain With Anti Vortex Grille - Dark Blue 50045 HD33L+DB
£115.99 £96.66
- +
Available for
Back Order
Certikin Main Drain C/W plug, bush & nipple - Dark Blue Certikin Main Drain C/W plug, bush & nipple - Dark Blue 50046 ZZ0352+DB
£125.12 £104.27
- +
Available for
Back Order

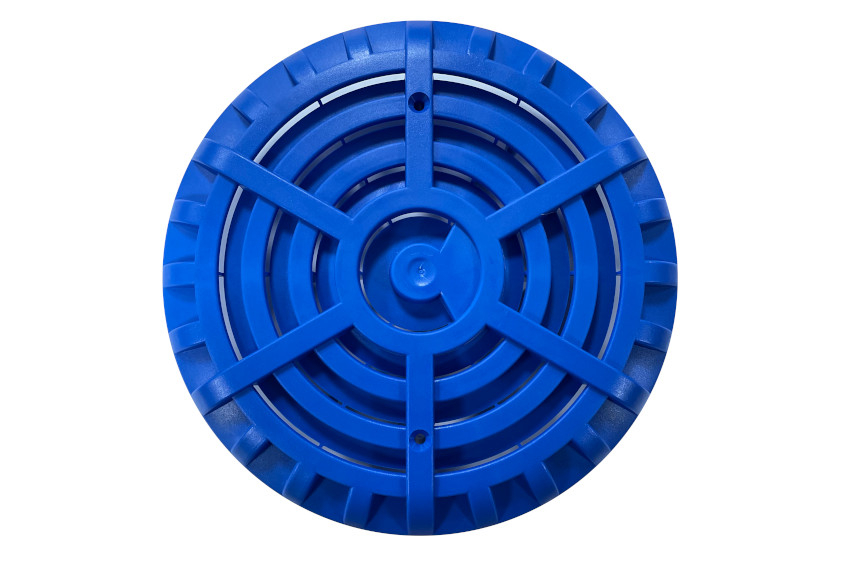

Certikin Main Drain C/W Hydro Relief Valve, Collection Tube, bush & nipple - Dark Blue Certikin Main Drain C/W Hydro Relief Valve, Collection Tube, bush & nipple - Dark Blue 50047 ZZ0353P+DB
£143.92 £119.93
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

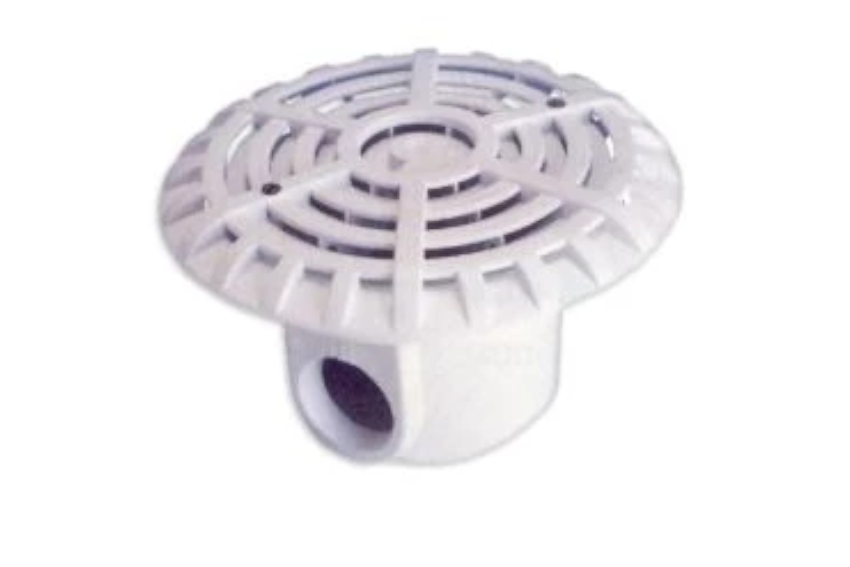

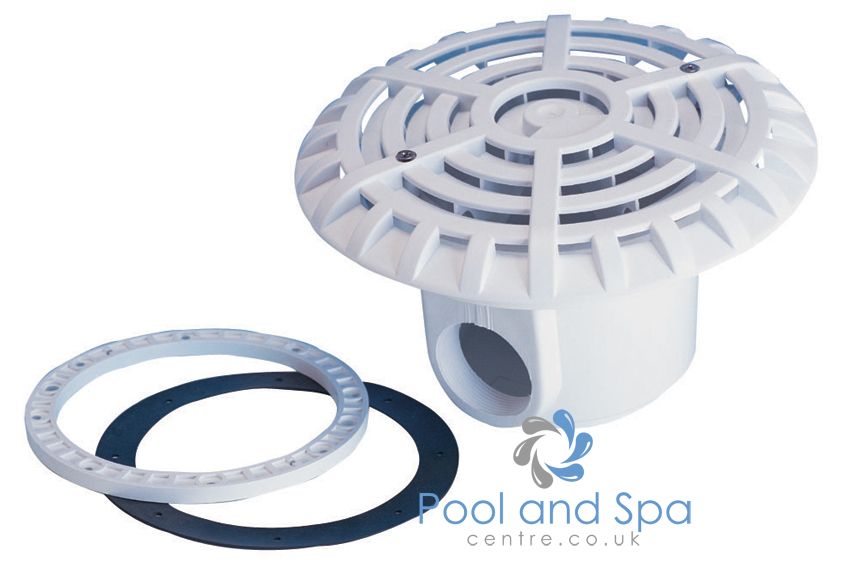

Certikin D3L 6" Liner Main Drain with anti vortex grille.

  • With a brand new mould and taking advantage of improvements in technology since 1968 (when the original Certikin Main Drain was first made) the new Certikin Main Drain has the same consistent quality as the other Certikin ABS white goods.
  • Current recommendations state that every pool should have at least two Main Drains. Therefore, at least one Main Drain on every pool will need the bottom port sealed off - that’s why the new Certikin Main Drain body has a knock-out blanking plate in the bottom port to save you time and money on site.
  • On commercial or shallow pool applications stainless steel main drain grilles must be used. Recommendation - Main drains must be arranged so that there is no risk of bathers being drawn towards them or trapped there. It is recommended that on all installations a minimum of 2 main drains are installed 2 metres apart.

Certikin Stainless Steel Main Drain Grille Kit To be added on pools where direct foot contact is made eg: Paddling Pools, Learner pools, Plunge pools.

Main Drain Selection
When choosing sump (main drain) size always assume that total flow may be directed to the plant room via the sump(s) - sump size should be chosen accordingly. In normal conditions flow will be divided between surface draw-off and sump(s) in ratio: 70% Surface/30% sump for Skimmer type pools or 50% Surface/50% sump for Deck Level pools.

Important - On commercial or shallow pool applications stainless steel main drain grilles must be used.

Recommendation - Main drains must be arranged so that there is no risk of bathers being drawn towards them or trapped there. It is recommended that on all installations, including domestic, a minimum of 2 x main drains are installed 2 metres apart.

Icon Label Type Size Download
pdf HD33 Installatiion pdf 6 MB Download
pdf Certikin Main Drain Brochure pdf 1.3 MB Download
pdf HD33 CAD pdf 73 KB Download
