SKU
G9676

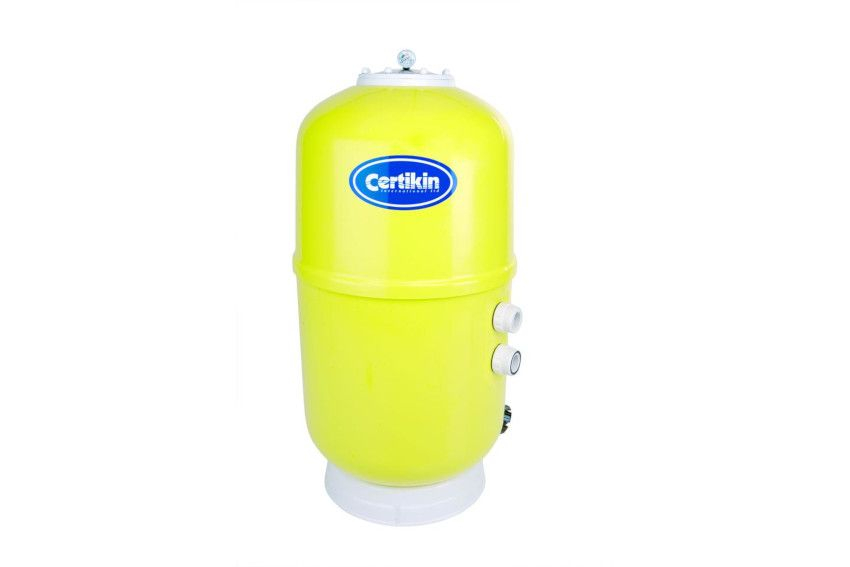

Certikin Deep Bed Filters C/W Multiport Valve
Certikin Deep Bed Filters C/W Multiport Valve
In-stock orders dispatched: on Monday
A deeper sand bed means more contact time between the filter media and pool water providing enhanced in depth filtration and increased dirt capacity, resulting in a better standard of filtration.
Filter Media Advice:
- Your attention is drawn to the advice being offered by the manufacturers of Triton & Tagelus filters in the use of a graded bed of gravel 3.5mm and filter sand 0.35 - 0.5mm.
- The use of the graded bed is an established practice to assist filtration and back washing cycle.
- Sand is still the most widely used medium for effective filtration in swimming pool treatment.
- Our technical department will be only too pleased to assist in providing guidance on this subject.
Model (mm) | Diameter | Connections | Filtration Area | Flow Rate | Media | Max Working Pressure |
---|---|---|---|---|---|---|
FDB500 | 500mm | 1.5" | 0.19m² | 9.5m³/h | 195kg | 2.5kg/cm² |
FDB600 | 600mm | 1.5" | 0.30m² | 15m³/h | 280kg | 2.5kg/cm² |
FDB750 | 750mm | 2" | 0.44m² | 22m³/h | 518kg | 2.5kg/cm² |
Model (mm) | Q | H | N | M |
---|---|---|---|---|
FDB500 | 500 | 1365 | 480 | 605 |
FDB600 | 600 | 1370 | 480 | 605 |
FDB750 | 750 | 1434 | 435 | 665 |
