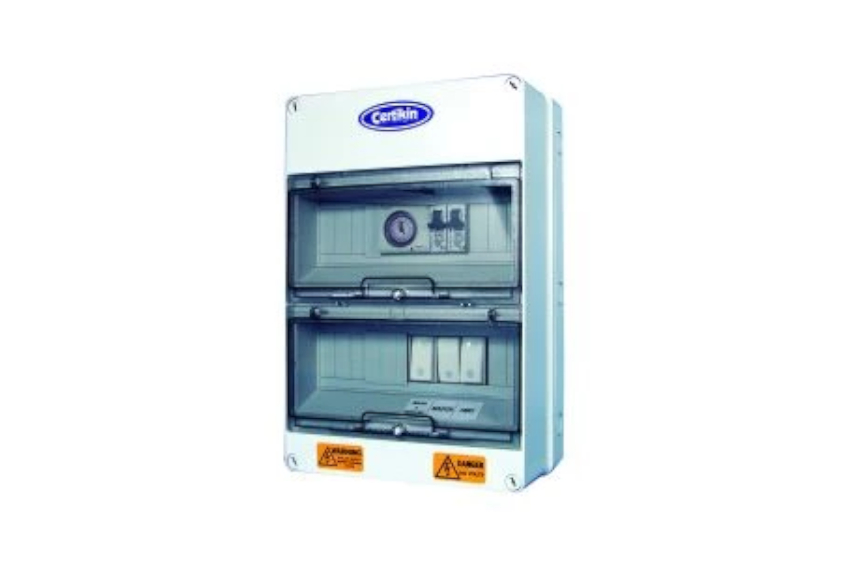

Certikin Electric Control Panels

Universal Control Panel For Gas, Oil & Genie Heaters:

The CCP01 pool control panel has been specifically designed as a universal control panel for all gas and oil pool heaters.

• Control panelrated to IP55.
• Two timed electrically protected outlets of 6Amps and 16Amps.
• Timed control of heater, with isolating switch.
• Timed control of pump with isolating switch.
• Timed control of a single volt free circuit.
• 230V 50Hz 1 phase, pump load 16Amps(2HP).
• Maximum load not including pump 6Amps.

Universal Control Panel For Electric Heaters - Up To 16kw:

The CCP03 pool control panel has been specifically designed as a universal control panel for all Electric pool heaters.

• Control panelrated to IP55.
• Three timed electrically protected outlets of 6Amps, 16Amps and 45Amps.
• Timed control of heater, with isolating switch.
• Timed control of pump with isolating switch.
• Timed control of a single volt free circuit.
• 230V 50Hz 1 phase, pump load 16Amps(2HP).
• Maximum load (not including pump and heater) 6Amps.
• Heaterload maximum 45Amps.
• 3 metres of conduited control cable complete with gland plate.
• Cable conduitrated to IP65.
• 3 metres of armoured pump cable.
