SKU
G10392

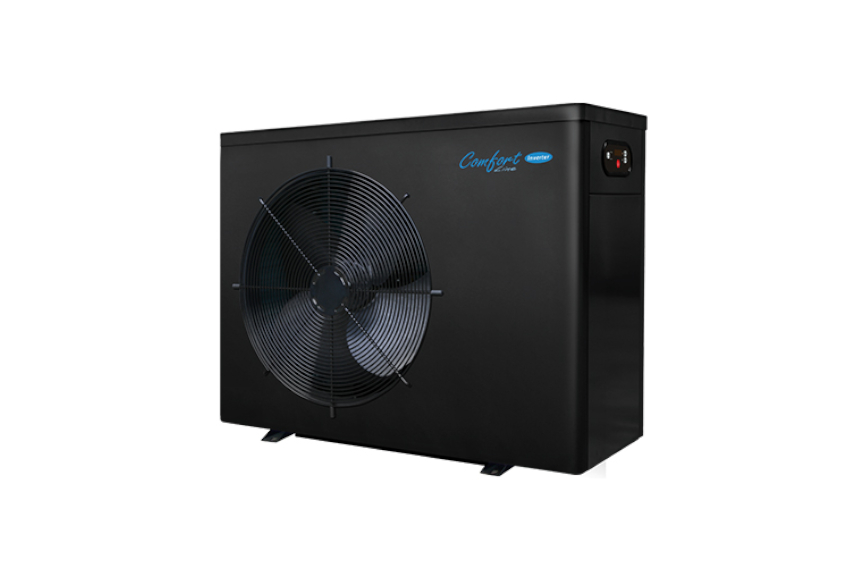

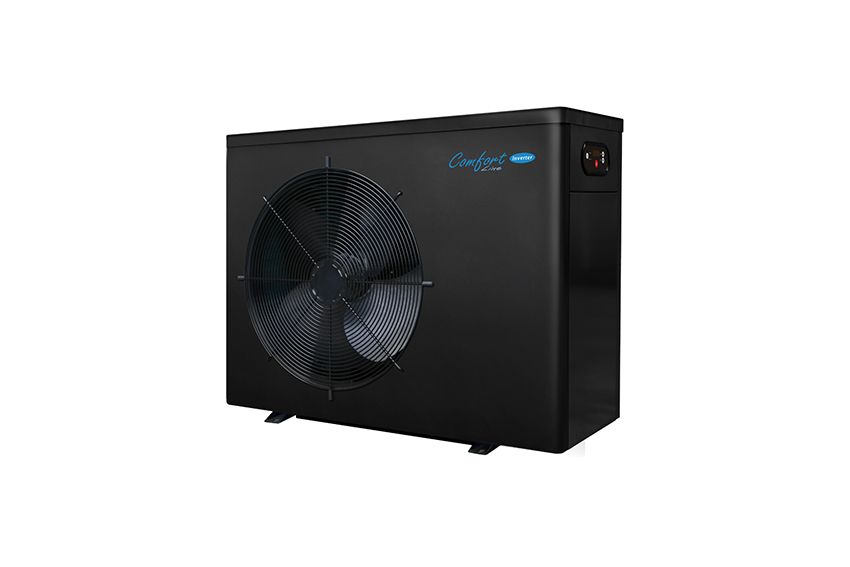

Comfortline Inverter Heat Pump

This heat pump gives a performance that is usually found on pumps at much higher price points.

Grouped product items
Product Name SKU MPN Price Qty Stock
Comfortline Inverter 6kW 230V Comfortline Inverter 6kW 230V 43246 3096030011
£1,040.76 £867.30
- +
3 In stock
Comfortline Inverter 12,5kW 230V Comfortline Inverter 12,5kW 230V 43249 3096030014
£2,020.60 £1,683.83
- +
2 In stock
Comfortline Inverter 16,5kW 230V Comfortline Inverter 16,5kW 230V 43250 3096030015
£2,451.31 £2,042.76
- +
3 In stock
Add to Wishlist

In-stock orders dispatched:14:00

The Comfortline Inverter

The Comfortline Inverter is powered by an inverter compressor, it can adjust heating capacity from 20% to 100% intelligently according to different heating demands.
When the season starts and heating demand is high, the Comfortline Inverter runs at 100% compressor & fan speed for fast heating. it performs and is packed with technology usually found on pumps at much higher price points. Don’t confuse this with inferior pumps at similar prices this is an inverted pump with HP technology giving 20% better COP performance than other on-off systems. If you are on a budget and have a small to medium-sized pool and want to heat it for the season this is worth a look..

  • Spiral Titanium Heat Exchanger - Enlarge 30% Heat Exchanging Surface
  • HP-Booster Technology - Enable COP 20% Higher Than On/Off HP In The Market.
  • Saginomiya 4-Way Valve - Fast Defrosting.

When maintaining the pool temperature, the Comfortline Inverter runs at low speed for energy saving with a higher COP (efficiency rating).



Average COP of 9

Comfortline Inverter Average COP is 9 at Air 26°C / Water 26°C / Humidity 80%, which means 1kW electricity consumption can provide up to 9kW heat in return.

Model BPN06 BPN08 BPN09 BPN13 BPN17
20% Capacity 10.0 9.5 10.0 11.0 10.5
Average 50% Capacity 8.8 8.2 8.6 9.5 9.1
100% Capacity 5.8 5.6 5.7 5.9 5.7
Model BPN06 BPN08 BPN09 BPN13 BPN17
Advised Pool Volume (m³) 15~30 20~40 25~45 30~60 40~75
Performance Condition: Air 26°C / Water 26°C / Humidity 80%
Heating Capacity (kW) 6.5 8.0 9.2 12.5 16.5
COP 10.0~5.8 9.5~5.6 10.0~5.7 11.0~5.9 10.5~5.7
COP at 50% Capacity 8.8 8.2 8.6 9.5 9.1
Performance Condition: Air 15°C / Water 26°C / Humidity 70%
Nominal Heating Capacity (kW) 4.5 6.0 7.0 9.0 11.5
COP 6.1~4.25 6.1~4.1 6.2~4.3 6.1~4.2 6.2~4.2
COP at 50% Capacity 6.0 6.1 5.8 6.0 6.2
Sound Pressure at 1m dB(A) 39.8~51.2 40.8~51.1 40.6~52.5 42.9~53.0 45.2~56.3
Sound Pressure of 50% Capacity at 1m dB(A) 43.8 43.9 45.8 48.5 48.7
Sound Pressure at 10m dB(A) 19.8~31.2 20.8~31.1 20.6~32.5 22.9~33.0 25.2~36.3
Rated Input Power at Air 15°C (kW) 0.35~1.0 0.34~1.4 0.34~1.6 0.36~2.0 0.56~2.7
Rated Input Current at Air 15°C (A) 1.52~4.4 1.48~6.0 1.48~7.0 1.57~8.7 2.43~11.7
Max Input Current (A) 6.5 8.0 9.5 12.5 15.0
Circuit Breaker (A) 16 16 16 16 20
Power Cord (mm²) 3x1.5 3x1.5 3x1.5 3x2.5 3x4
Power Supply 230V Ph/50Hz 230V Ph/50Hz 230V Ph/50Hz 230V Ph/50Hz 230V Ph/50Hz
Advised Water Flux (m³/h) 2~4 2~4 3~4 4~6 6~8
Water Pipe In-Out Size (mm) 50 50 50 50 50
Net Dimension LxWxH (mm) 744x349x648 864x394x648 864x349x648 864x349x648 954x349x648
Net Weight (kg) 42 46 47 49 60

The Specified pool volumes are only valid under the following conditions: Swimming pool should be covered during the night. Circulation pump runs at least 15 hours a day.

Heating from 1 May to 15 September. If these conditions are not met, please choose a larger model.
