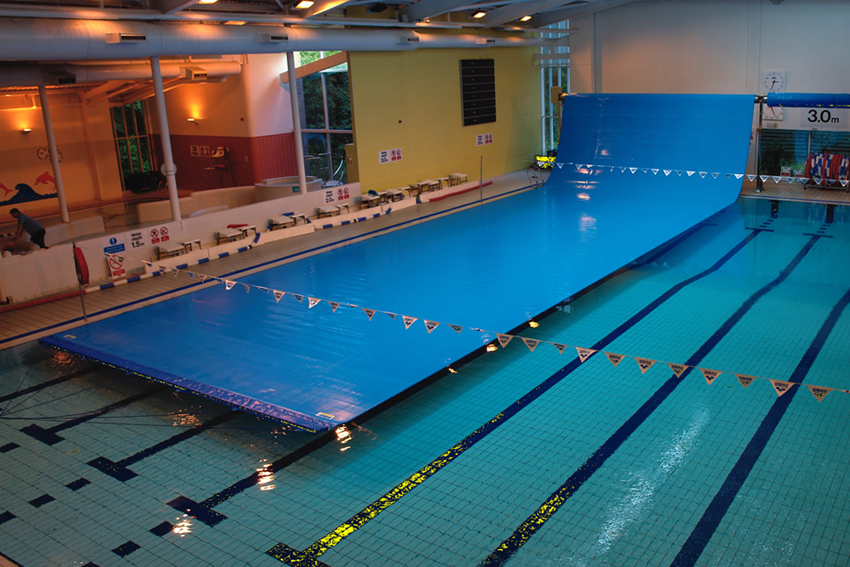

Over the last few years the need to reduce carbon emissions has become greater than ever. Most establishments are looking for new ways to reduce their carbon footprint and minimise impact on climate change.
It is now widely accepted that installing a heat retention cover is the single most effective means of reducing swimming pool energy consumption. Fit the right cover on your pool and you will see a reduction in energy bills of up to £18,000 per annum (figures based on a 25m x 12m pool at 2016 prices). Depending on the type of reel system you opt for, a payback period as short as 12 months can be expected.
It is not just the reduced energy bills that make for such a strong argument for covering your pool. The vast majority of heat loss is through evaporation. With your pool cover in place, evaporation is virtually eliminated. You will also benefit from reduced humidity and condensation in the pool building.
Installation & Repair Services Available - Request a Quote Above.

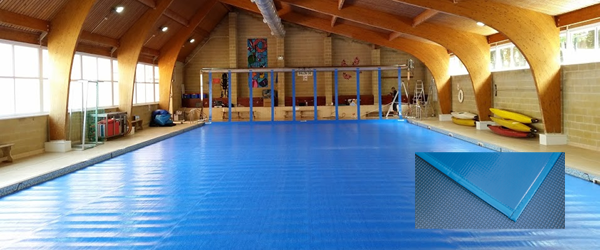

5mm Supercover

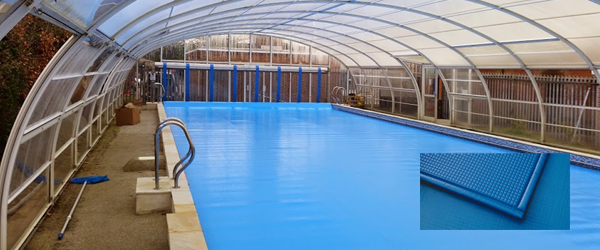

8mm Supercover

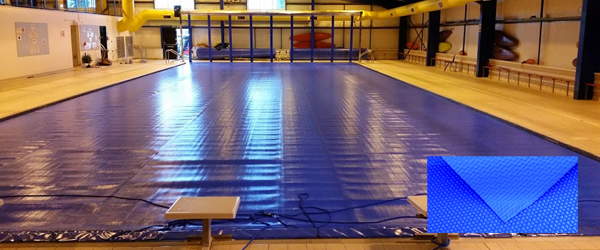

Polyweave Cover

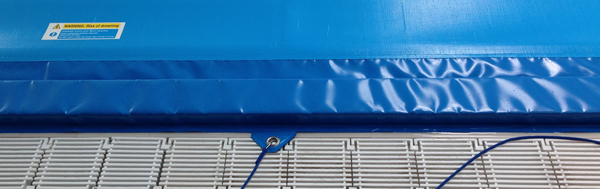

Leading edge and Re-inforcing
Our Reel Sytems
Motorised Reel Systems
Fully automated cover and reel systems are increasingly popular. The benefits of fast and efficient cover operations include time savings and reduced manual handling for poolside staff. For ease of use, the system can be operated via a key switch or remote control.
Motorised systems include safety features and ultra quiet motors with soft start and stop electronics to prolong the life of the cover

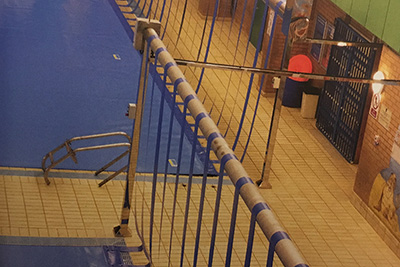

Light Commercial Motorised

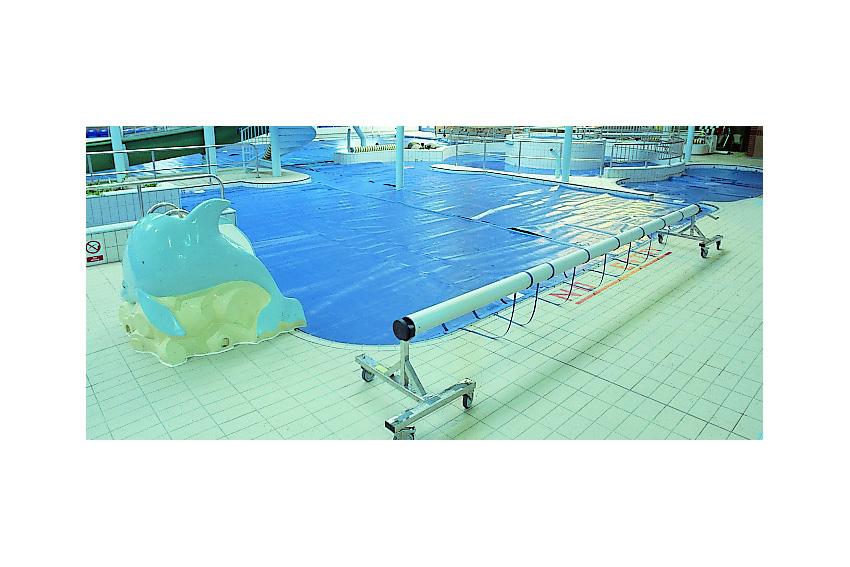

Mobile Reel Systems
This system is ideal for smaller commercial swimming pools and is similar to the Commercial Piggyback Reel but with one tube/axis.
The tubes are manufactured using 127mm (5") aluminium tube with nylon end bosses, high grade polished stainless steel end stands on 127mm (5") stainless steel and braked castors
Use of a 6:1 reduction gearbox is advised for covers over 140 sqm per tube (1500 sq ft)

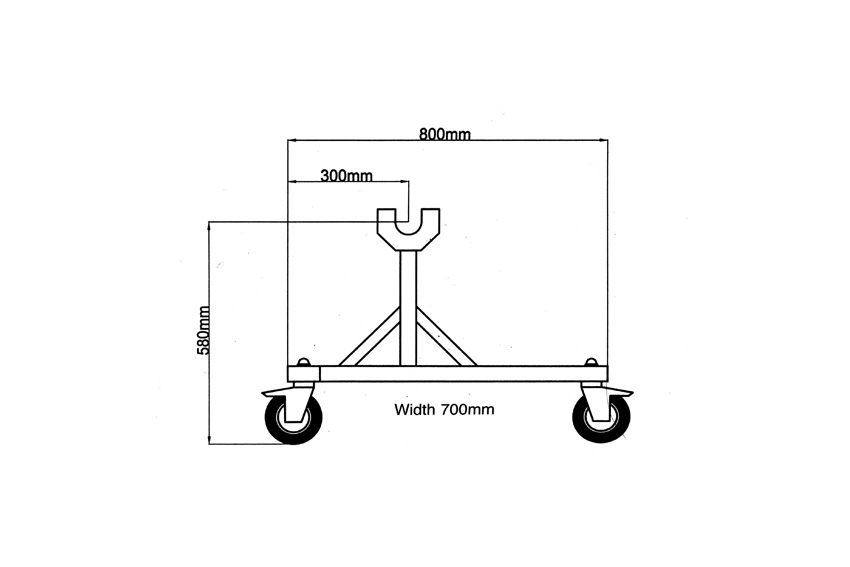

Mobile Reel Dimensions

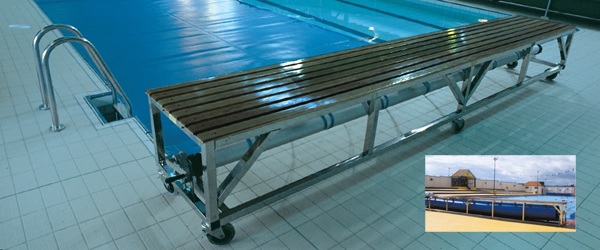

Slatted Reel Systems
ideal for larger swimming pools with lots of activity.
The Commercial Slatted Reel System has a framework made from polished high-grade stainless steel with Rotproof structural styrene slats. It can be positioned using it's 150mm (6") stainless steel castors or fixed to the deck close to the pool.
This reel syste provides a solid, hardwearing and attractive surround for your cover and is available in sizes up to 10.4m (34') in length. The majority of reel systems up to 9.1m (30') are produced with a 127mm (5") diameter aluminium tube. Reel systems over this size are produced with a 152mm (6") or a 304mm (12") diameter stainless steel tube. A 6:1 reduction gearbox is fitted as standard for ease of use, alternatively, this system can be motorised.

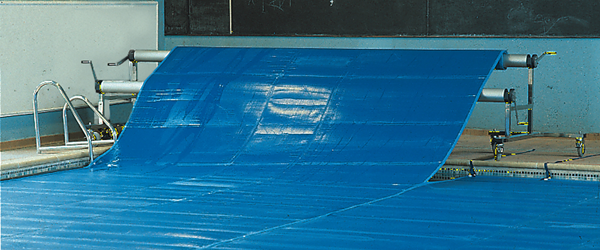

Piggyback Mobile Reel System
The dual tubes allow one reel system to cover a pool almost twice its width with ease.
The system has proved popular with schools and local authorities
The end stands are manufactured from a high-grade polished stainless steel. The 150mm (6") stainless steel braked castors allow the reel system to be repositioned for rolling covers on and off the pool.
Cover straps attach to two 127mm diameter aluminium tubes. Simply attach the straps to the tube and roll the first cover onto the reel system. Move the reel across and repeat the process to remove the second cover from the pool. The reel system can then be removed from the pool edge and stored when not in use.
Use of a 6:1 reduction gearbox is advised for covers over 140 sqm per tube (1500 sq ft).
Easy to OperateCover straps attach to two 127mm diameter aluminium tubes. Simply attach the straps to the tube and roll the first cover onto the reel system. Move the reel across and repeat the process to remove the second cover from the pool. The reel system can then be removed from the pool edge and stored when not in use.

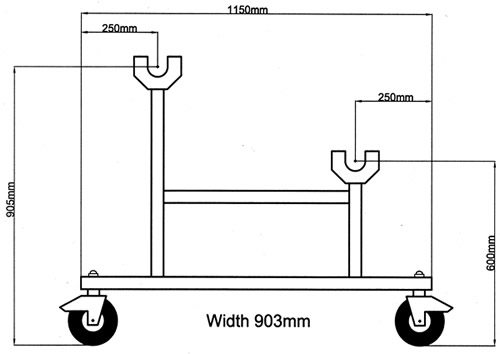

Piggy Back Dimensions
Fixed Reel Dimensions
