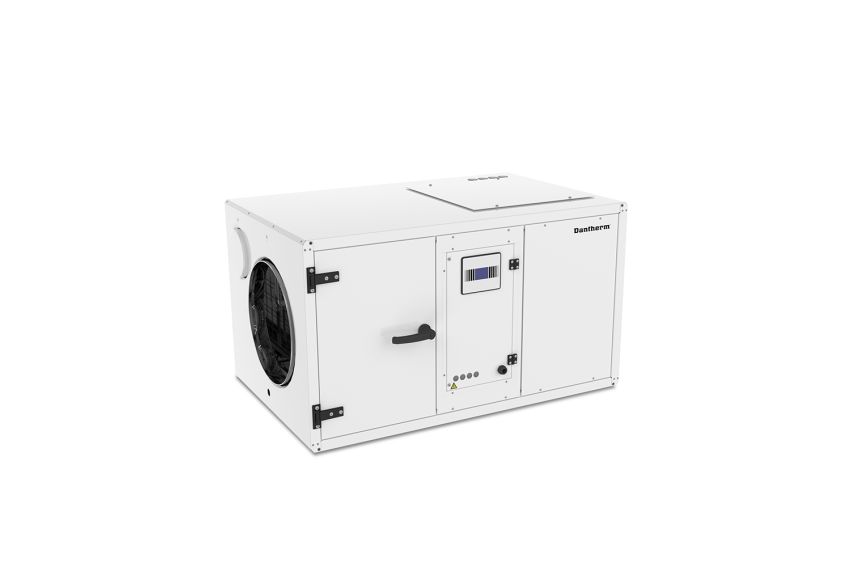

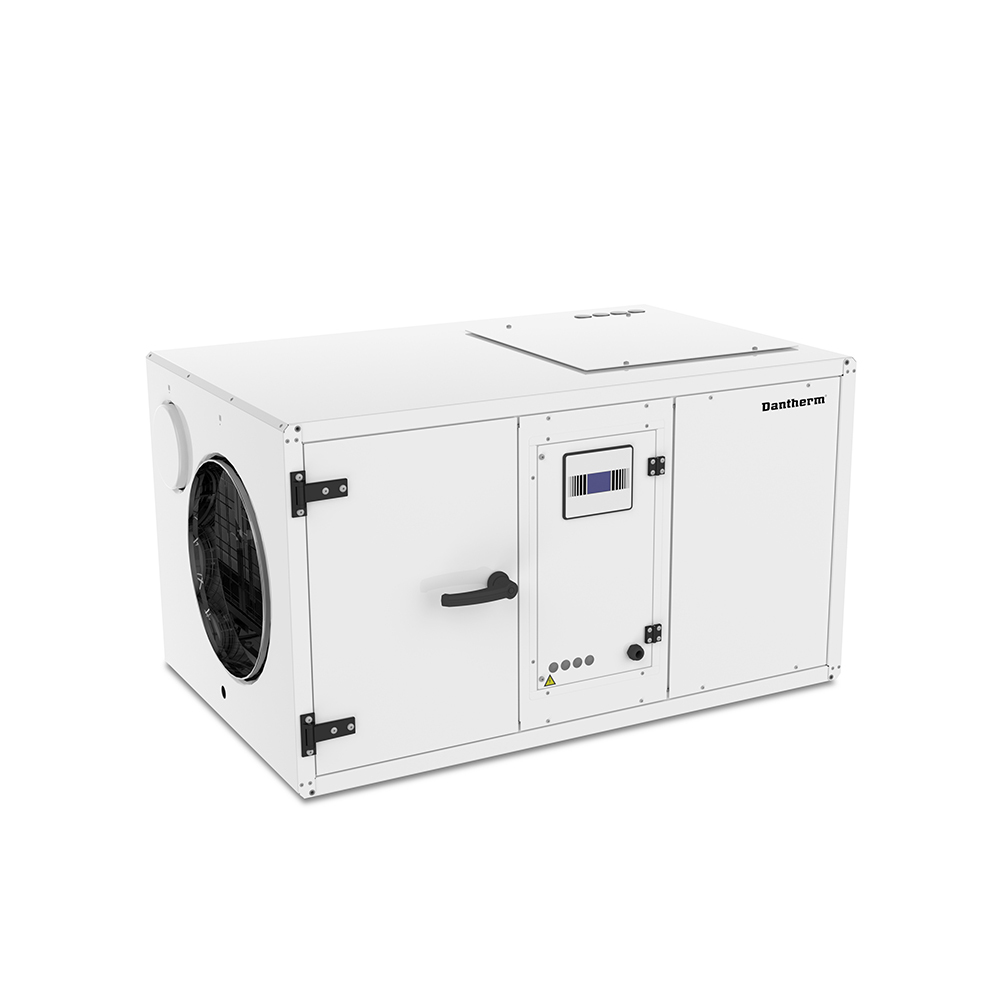

Dantherm CDP 85 – Ducted Swimming Pool and Commercial Dehumidifiers

Grouped product items
Product Name SKU MPN Price Qty Stock
CDP85 Ducted Air to Air Dehumidifier +10.3KW LPHW Air Heater CDP85 Ducted Air to Air Dehumidifier +10.3KW LPHW Air Heater 51116
£11,484.00 £9,570.00
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

High capacity ducted swimming pool and commercial dehumidifiers

The CDP 85 ducted condensation dehumidifiers are specifically designed for hotel, private, and therapy swimming pool hall dehumidification. They offer a great moisture removal per kWh, high durability, and efficient self-regulation. They are ideal for installation in an adjacent technical room.

All metal parts and internal surfaces are powder coated before assembly and evaporator and condenser coils are made of epoxycoated aluminium. The corrosion protection is in accordance with EN/ISO 12944-2, class C4.

The range is equipped with the Dantherm CC6 controller which comes with an integrated 2.4” touch screen for easy user customisation of setpoints and visualisation of operational variables.

View other swimming pool dehumidifiers or see our full range of commercial and industrial dehumidifiers suitable for multiple applications.

Key Features

  • EC centrifugal constant flow fan
  • User specified low and high air volume
  • R454C refrigerant with GWP of 148
  • Movable inspection access
  • Outdoor air inlet possibility (15%) through duct connection
  • Supply air duct either horizontally or vertically connected
  • Microchannel condenser
  • Integrated control of exhaust fan and/or outdoor air damper
  • Heat- and cooling demand regulation
  • Datalogging and software update via supplied microSD card
  • Compact unit designed to suit any plant room configuration
  • Sandwich cover panels with 45mm insulation
  • Optional water-cooled condenser
  • Three setpoint specified control modes – relative, absolute, or dew point
  • Modbus RTU (RS485)

Specifications  CDP 85

  • Operating temperature range: 15-38 °C
  • Operating humidity range: 40-95 %RH
  • Air flow, nominal: 1,500 m³/h
  • Air flow, range: 550-1,500 m³/h
  • Dehumidification capacity @ 30°C/60% RH: 88 l/24h
  • Dehumidification capacity @ 20°C/60% RH: 56 l/24h
  • Dehumidification capacity @ 30°C/60% RH: 126 l/24h
  • Specific Energy Consumption (SEC): 0.38 kWh/l
  • Specific Energy Consumption (SEC): 0.58 kWh/l
  • Max. external pressure loss: 300 Pa
  • R454C gas weight/CO₂ equivalent: 1.2/0.18 kg/t
  • Power supply: 230/1ph/50 V/Hz
  • Power consumption, nominal air flow: 1.9 kW
  • Current, max: 8.8 A
  • @ 20°C/60%: 1.3 kW
  • @ 30°C/60%: 1.4 kW
  • Maximum: 1.9 kW
  • Product size (w x d x h): 1155 x 725 x 650 mm
  • Weight (w/o water-cooled condenser): 140 kg
  • Colour: RAL 9016

Suitable for:

Agriculture

Archives and preservation

Classic car storage

Commercial buildings

Food and beverage

Industrial, factories and production

Leisure and recreation

Museums and galleries

Swimming pools

Warehouses and storage

Waterworks

Icon Label Type Size Download
pdf CDP85 Spec Brochure pdf 3.7 MB Download
pdf CDP 85 Manual pdf 1.4 MB Download
