Drain valve for LX LP/WP, DXD and RWA pump Face Plates

Pump drain valves available in two variations.

• An 11mm thread usually marked with an 'M'. This will fit DXD, RWA and pre 2019 LX LP and WP pump face plates.


• A 13mm thread usually marked with an 'N' to fit post 2019 LX LP and WP pump face plates.



To check which variation you require, please measure your existing valve thread size.

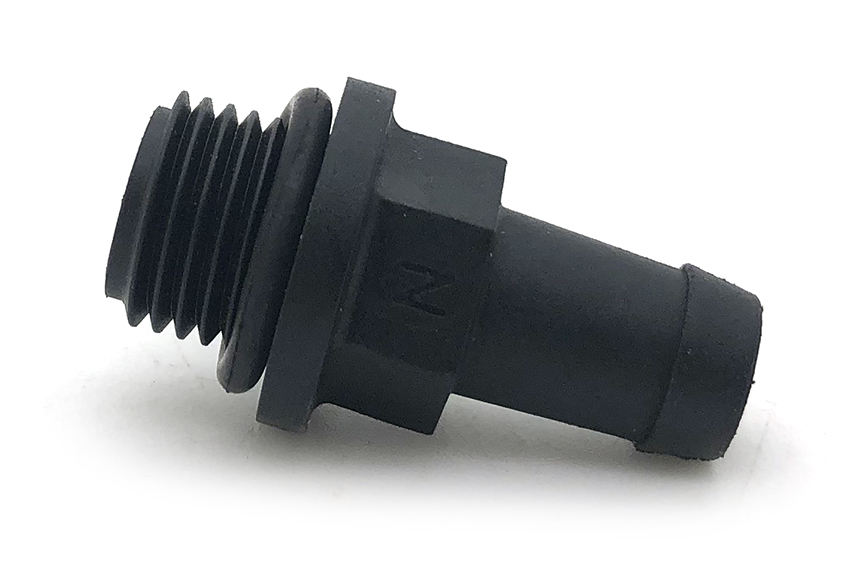

Post 2019 - Newer Models
Marked with an 'N'
Length: 35mm
Thread OD: 13mm
Barb OD:10mm

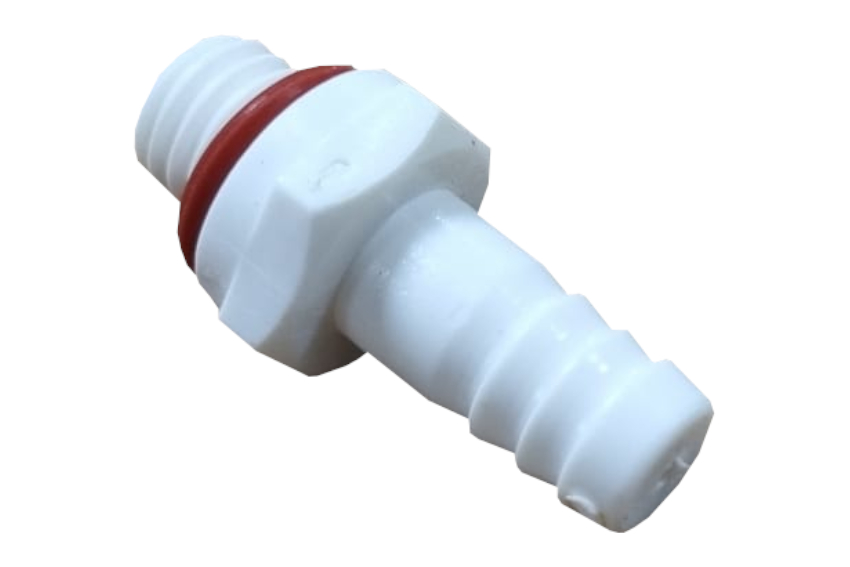

Pre 2019 - Older Models
Marked with an 'M'
Length: 35mm
Thread OD: 11mm
Barb OD:10mm

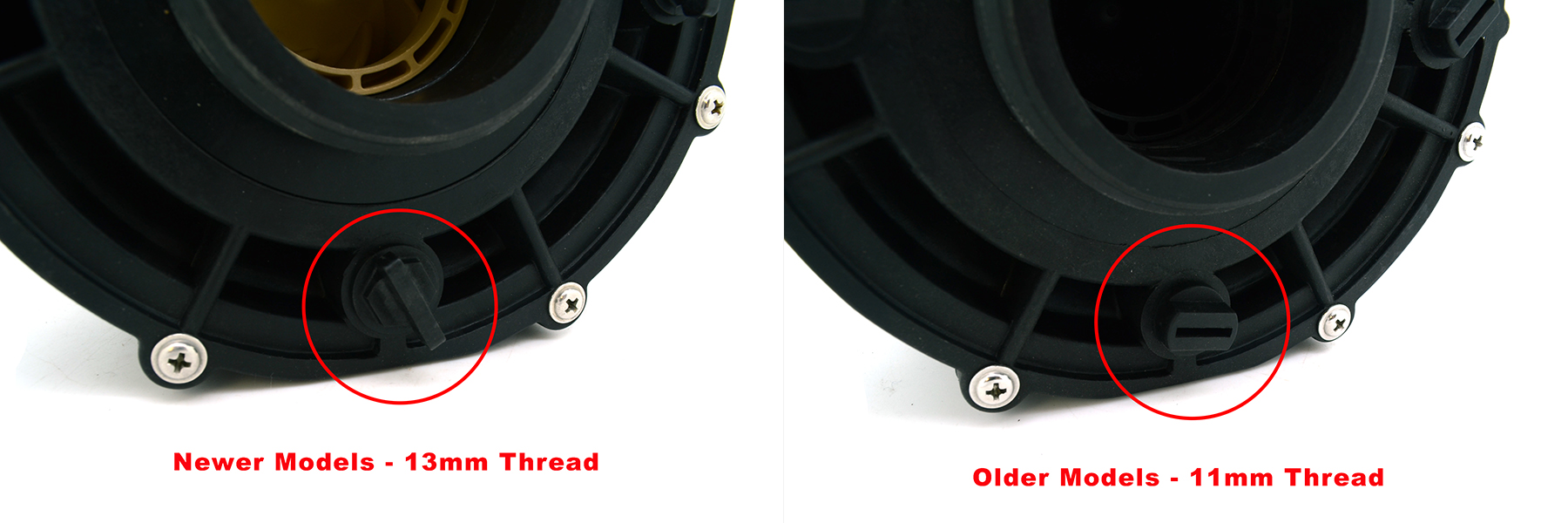

Another way is to differentiate between the older and newer drain valves is to look at the design of existing drain plugs on the faceplate. Please see below.
