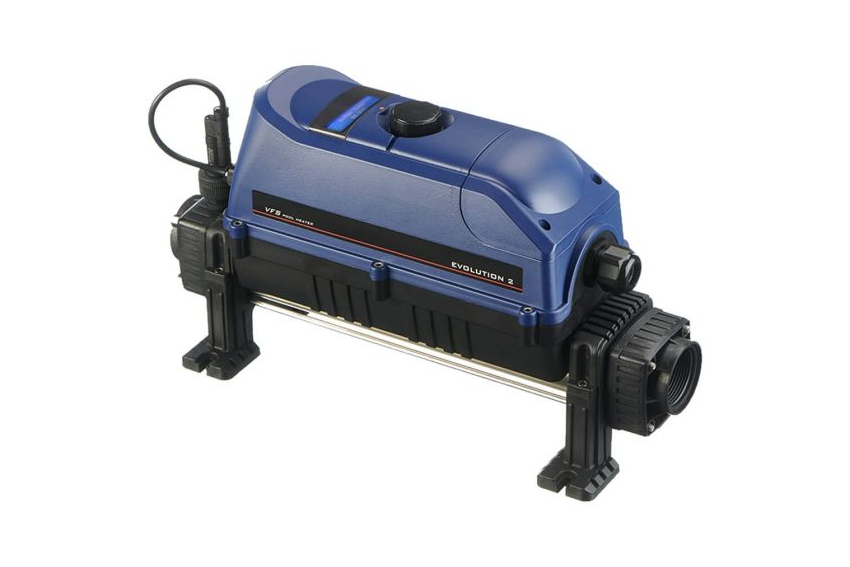

Elecro Evolution 2 Heater with Titanium Elements

The Elecro Evolution 2 Heater Single & Three Phase with Titanium Elements are available from 4.5kW to 24kW.

• Heating Elements: Titanium
• Flow Tube: Titanium
• Flow Switch: Gold tipped reed switch with titanium fulcrum pin
• Flow Requirements: Minimum Flow - 2kW to 6kW = 1m³/hr , 9kW to 24kW = 4m³/hr / Maximum Flow - 17m³/hr
• Safety Thermal Cut Out: 60°C (manual reset)
• Contactors: Siemens 3RT2023 or 3RT2027
• Control Thermostat: Analogue 0 to 45°C (1.2°C differential)
• Water Connections: 1.5" BSP supplied with 1.5" to 50mm ABS unions and 1.5"/1.25" hosetails
