Elecro Nano Heater Range
In-stock orders dispatched: on Monday

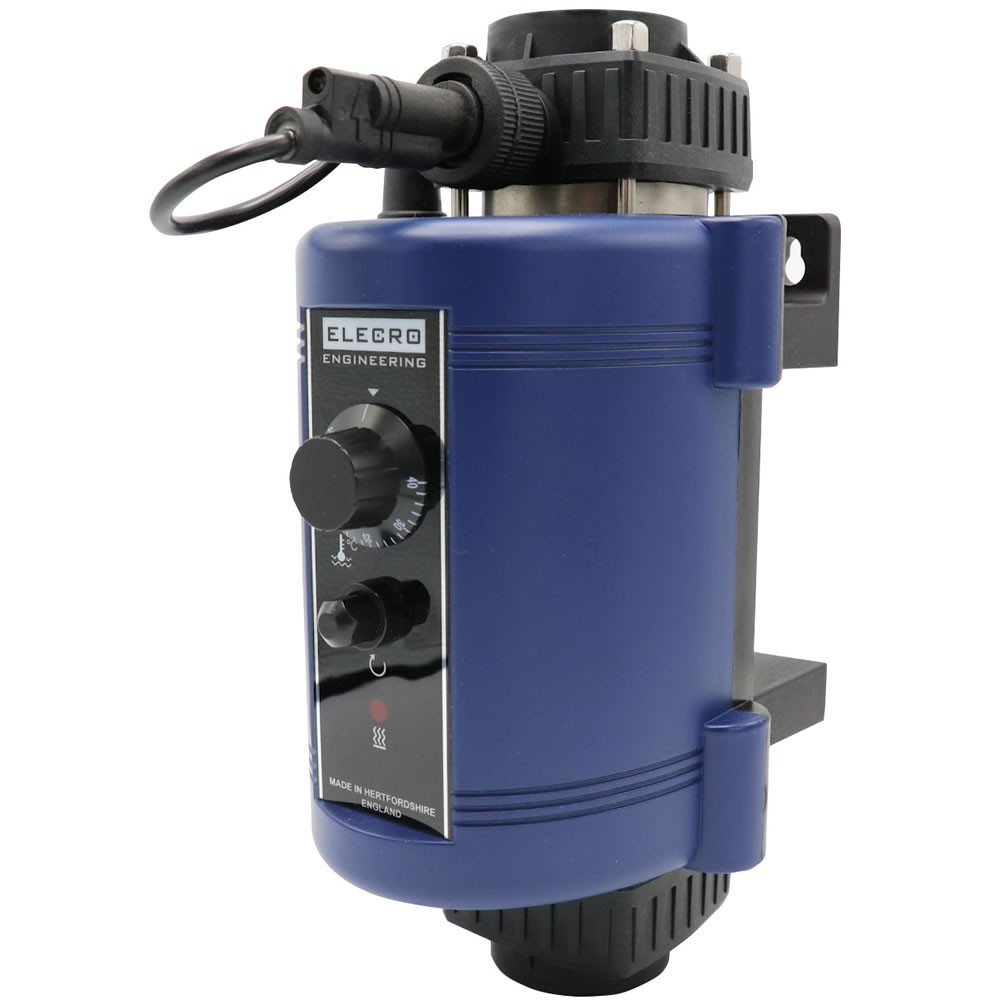

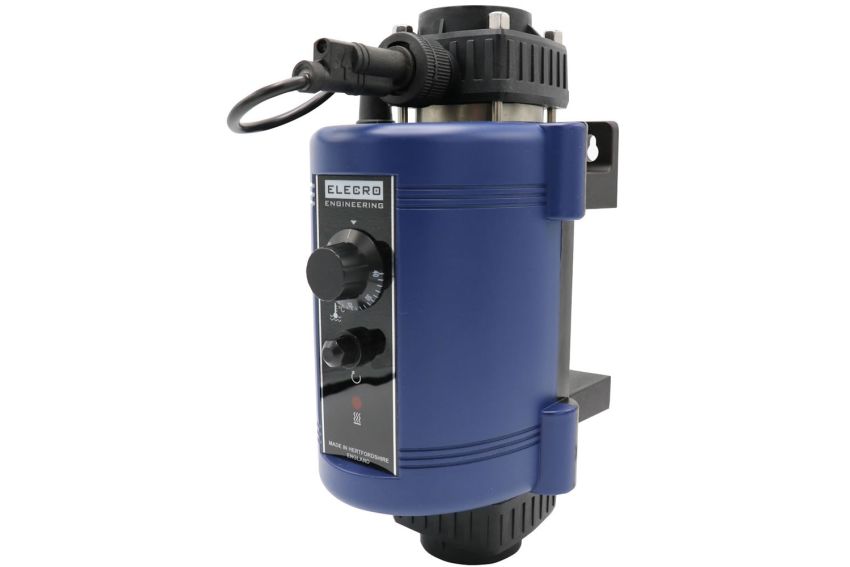

The Elecro heater consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material.
The outlet moulding accommodates a reversible flow switch with a gold tipped reed, and Titanium fulcrum pin.
The heater is supported on two feet, this permits either vertical wall or floor mounting.
The heater control components are positioned on the top face of the casing.
Screw fit adapters are supplied to allow connection to standard above ground pool flexible pipe work.
The water inlet and outlet fittings can facilitate connection to either metric or imperial standard pipe.
The inlet moulding has been designed to ensure full immersion of the elements, greatly reducing the risks of air locking.
- Designed For Above Ground & Splasher Pools.
- Ideal Heat Pump Top Up / Back Up Heater.
- 3-kW Power Output.
- Complete With Power Lead.
- Analogue Control Thermostat.
- Reversible Flow Switch.
- Robust, durable construction.
- Fully Equipped.
- Easy Installation.
- Titanium or Incoloy 825 heating element.
- 316 Stainless Steel flow tube.
- Ultra-reliable flow switch allows safe operation as low as 1m³/hour.
- Control thermostat 0-40°C (1°C differential).
- Safety thermal cut our 60°C (manual reset).
- Supplied with hose tails for connections to 1¼" or 1½" flexible pipe.
Data Table: | |
---|---|
Minimum Flow Requirement | 1m_ (1,000-litres) per hour |
Maximum Flow Velocity | 17m_ (17,000-litres) per hour |
Heating Element | Incoloy 825 (Yellow Enclosure) or Titanium (White Enclosure) |
Flow Tube | BS 316 Stainless Steel |
Control Thermostat | 0ºC > 40ºC (1.0ºC Differential) |
Safety Thermal cut-out | 55ºC (Manual reset) |
Flow Switch | Gold tipped reed switch with Titanium fulcrum pin |
Wiring | High temperature, silicone sheathed, multi-strand copper conductors |
Seals | High temperature special formula polymer |
Working Pressure | 4 bar maximum |
Water Connections | 1_" BSP female thread |
Supplied Hosetails | For 1_" / 1_" flexible pipe |
Mounting | Floor or wall mountable |
-
