SKU
G10944

EPS Easy Build In-Pool Corner Steps

EPS Easy Build In-Pool Corner Steps

Grouped product items
Product Name SKU MPN Price Qty Stock
EPS Corner Step 1386 x 720mm 90° EPS Corner Step 1386 x 720mm 90° 45332
£1,419.84 £1,183.20
- +
Available for
Back Order
EPS Corner Step 1386 x 720mm 6" Radius EPS Corner Step 1386 x 720mm 6" Radius 45333
£1,419.84 £1,183.20
- +
Available for
Back Order
EPS Corner Step 1575 x 900mm 90° EPS Corner Step 1575 x 900mm 90° 45334
£1,910.52 £1,592.10
- +
Available for
Back Order
EPS Corner Step 1575 x 900mm 6" Radius EPS Corner Step 1575 x 900mm 6" Radius 45335
£1,910.52 £1,592.10
- +
Available for
Back Order
EPS Corner Step 1575 x 1200mm 90° EPS Corner Step 1575 x 1200mm 90° 45336
£2,503.51 £2,086.26
- +
Available for
Back Order
EPS Corner Step 1575 x 1200mm 6" Radius EPS Corner Step 1575 x 1200mm 6" Radius 45337
£2,503.51 £2,086.26
- +
Available for
Back Order
EPS Corner Step 2000 x 1200mm 90° EPS Corner Step 2000 x 1200mm 90° 45338
£2,703.96 £2,253.30
- +
Available for
Back Order
EPS Corner Step 2000 x 1200mm 6" Radius EPS Corner Step 2000 x 1200mm 6" Radius 45339
£2,703.96 £2,253.30
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

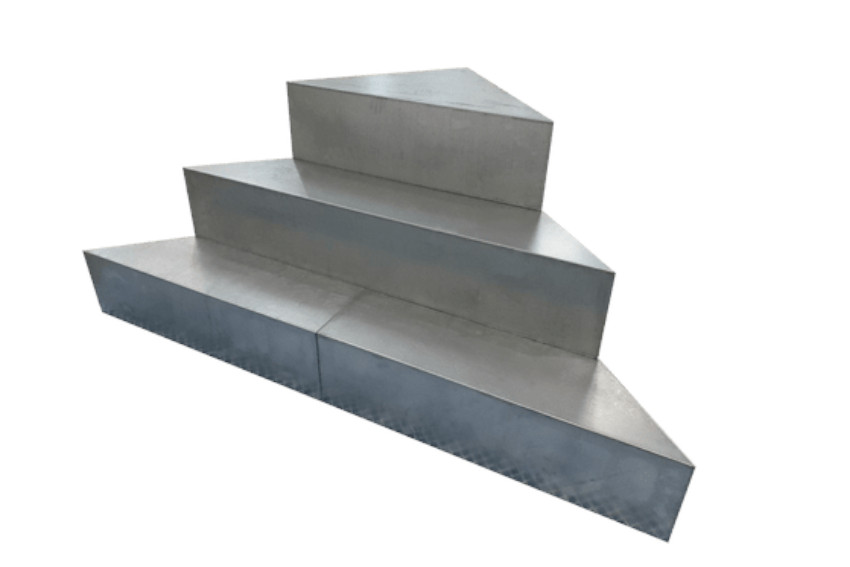

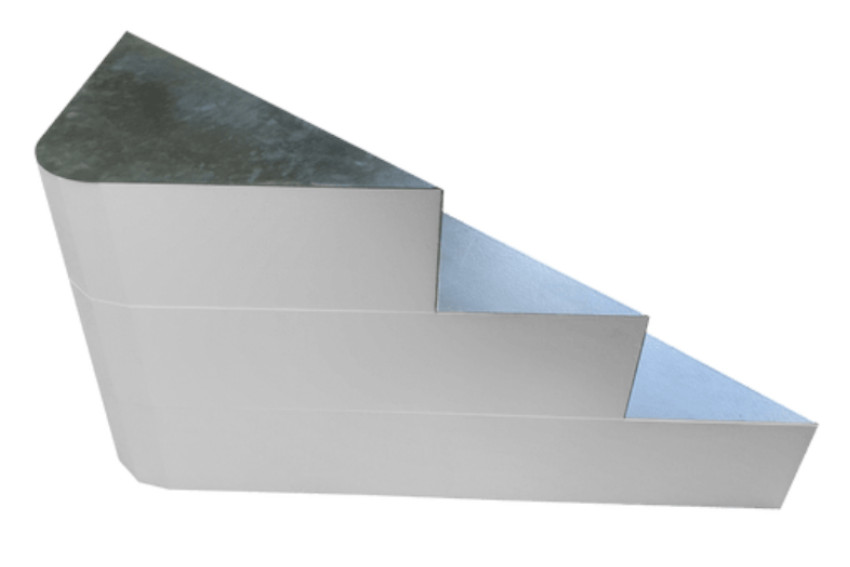

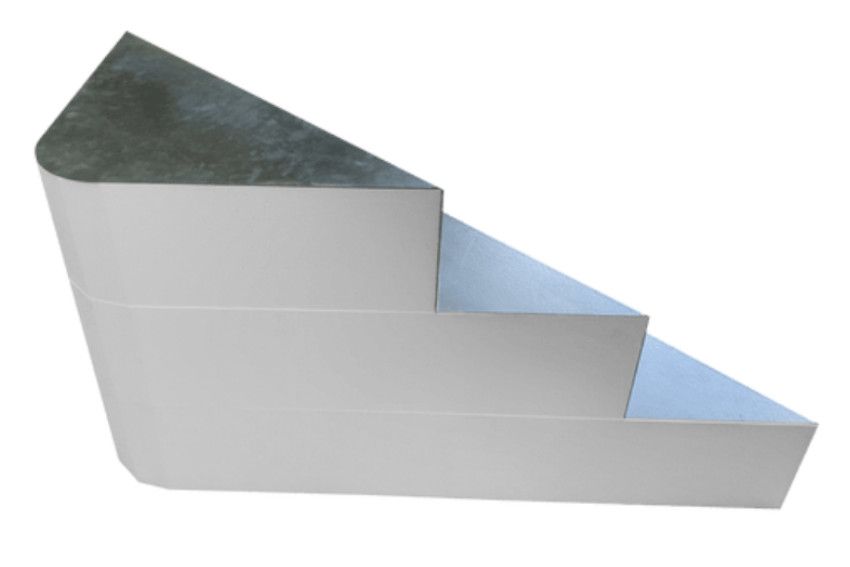

EPS Easy Build In-pool Corner Steps | Suitable for liner pools

An increased product range with new features added

Following on from the launch of our EPS easy build steps we are pleased to announce the addition of a new size to the product range. In addition to the existing 3 sizes, we are now able to offer a 3 tread step to suit 1020mm (3′4′′) depth pools.

Made from a 25kg/m³ density EPS block which is covered in shaped non-corrosive Magnelis steel sheeting, the units are lightweight and easy to handle. No concreting or rendering is needed, and with adhesives included and no specialist tools required the build time is approximately one hour.



A Product Range To Suit Most Liner Pools

The EPS easy build step is available to suit pool wall depths of 1020, 1200 and 1500mm with a variety of options to suit most liner pools applications.

  • No concreting or rendering required
  • No specialist tools needed
  • Quick and easy to assemble – 1hour approximate build time
  • Includes the required contact adhesive and liner protection tape
  • Lightweight and easy to handle
  • Delivered on a single pallet
  • Suitable for factory made and site applied vinyl linings
  • 4 different size options available
  • Available to suit pools between 1020 and 1500mm wall depth
  • All sizes of step are suitable for 90° and 6” radius corner pools
  Step Height Suit Pool Wall Depth Min Water Depth
ECS1386720 3 x 240mm 1020mm 870mm
ECS1386720R 3 x 240mm 1020mm 870mm
ECS1575900 3 x 300mm 1200mm 1050mm
ECS157590R 3 x 300mm 1200mm 1050mm
ECS15751200 2 x 300 + 1 x 600mm 1500mm 1350mm
ECS15751200R 2 x 300 + 1 x 600mm 1500mm 1350mm
ECS20001200R 4 x 300mm 1500mm 1350mm
ECS20001200R 4 x 300mm 1500mm 1350mm

Please note: Presence of water behind the pool liner can cause the EPS step to lift or move following installation - adequate under pool drainage, designed to suit the ground conditions, should be put in place in order to keep the pool shell dry. If used in conjunction with a bag style liner, there should be a minimum of 150mm of water above the top tread.

Icon Label Type Size Download
pdf ESP Corner Steps pdf 6.1 MB Download
pdf ESP Corner Step Instructions pdf 3.3 MB Download
