Gecko IN.YJ-3 Control Box

£298.38 £248.65
Out of stock. Available for back order.
Gecko IN.YJ-3 Control Box - please see inside for topside and system compatibility.
0612-221040-430
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

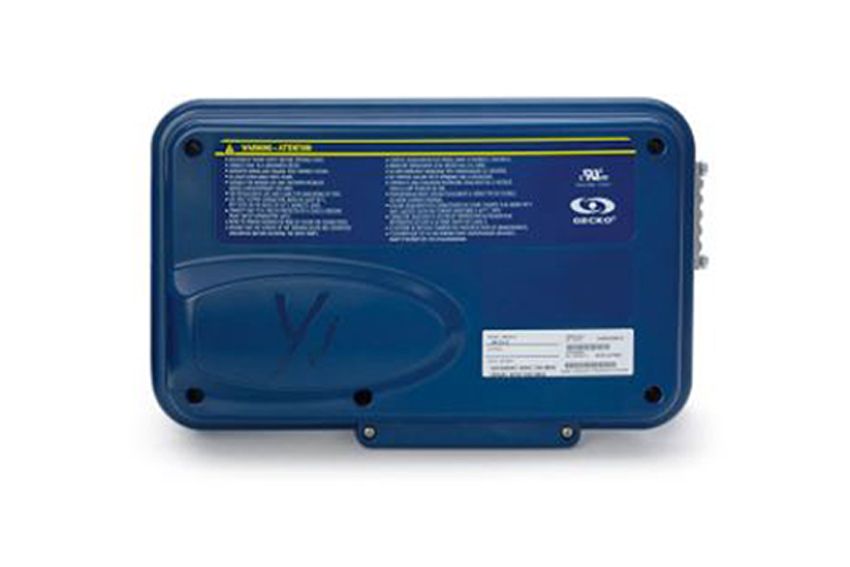

This is a Gecko IN.YJ-3 Aeware Control Box. The ideal choice for smaller spas as its compact size offers flexibility to be installed in any small spa without loosing the functionality and options that the other Y range control systems provide.

It supports 3 configurable outputs, dual speed pumps use 2 outputs.

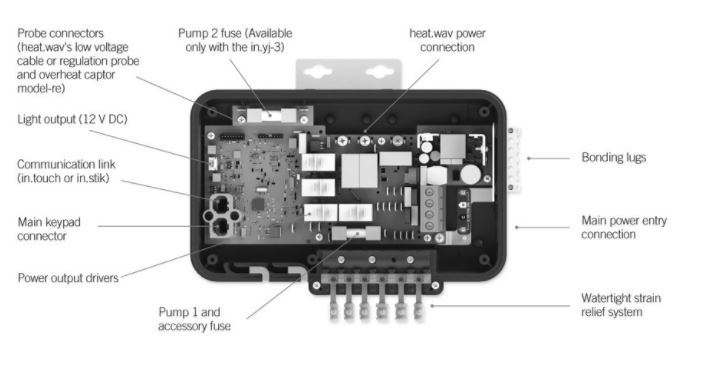

This is version 3 which replaces all previous versions. The in.yj-3-V3 retains the same main features as its predecessors, but more configurations are possible, LED indicators have been added on the board for troubleshooting and the in.mix system (light management) is integrated.



  • IPX5 rated waterproof
  • Easy installation
  • Compact design
  • Flexible
  • Quick Connect connections available
  • In.Touch wireless remote compatible
  • Supports single phase input power
  • Integrated temperature probe

Dimensions: (W x H x D) 12.08" x 7.38" x 3.74" (307 x 187 x 95 mm)
Weight: 3.1 lb (1.41 kg)

system

The Control Box Supports:

3 Outputs
Heater not included see ideal for
12V Light
Keypad

The configuration of this pack is done via the keyboard by choosing one of the options available to you. Please contact you tech team if you have any questions regarding this

It connects to a heat.wav.yj heater.

It supports 3 configurable outputs (three 230V relays) (equipped with 3 relays, hence the number 3 in its YJ-3)

A two-speed pump counts as two outputs

Therefore the most popular configurations for these three relays are:

  • A two-speed pump and a single-speed pump or a blower
  • A circulation pump and a two-speed pump
  • One circulation pump and two single-speed pumps
  • A circulation pump, a single-speed pump and a blower

A circulation pump can be used with three single-speed pumps (or two single-speed pumps and a blower) but, only if it is of the 24-hour type.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for a like-for-like replacement only.

Please ensure this is the correct box and this item is non refundable

Icon Label Type Size Download
pdf Yseries Brochure pdf 2.9 MB Download
pdf Quick Start up IN.YJ pdf 268.7 KB Download
pdf YJTechbook pdf 2.6 MB Download
pdf Gecko IN.YJ-3 Quick Start Card #430 pdf 507.5 KB Download
