SKU
28020
0611-221027-349

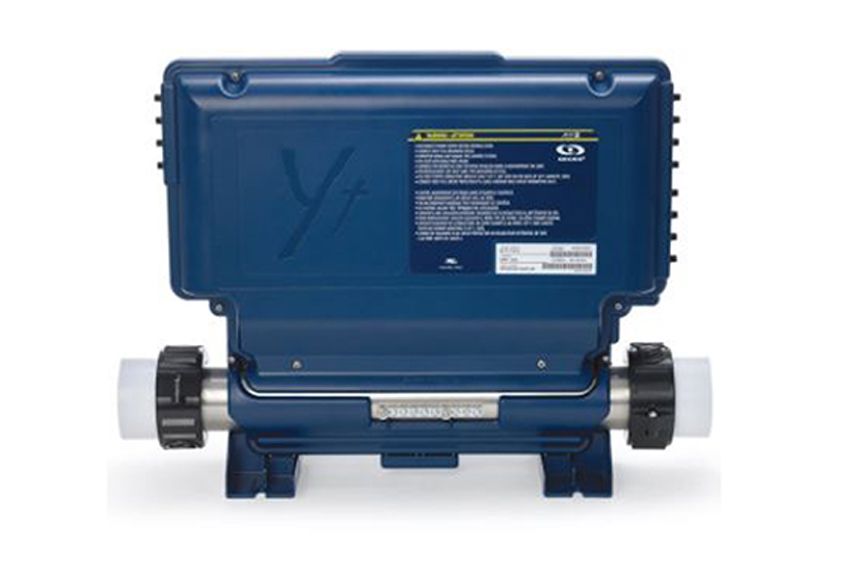

Gecko IN.YT-7 Control Box

£431.86 £359.88
2 In stock
Gecko IN.YT-7 Control Box - please see inside for topside and system compatibility.
0611-221027-349
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

This is a Gecko IN.YT-7 Control Box with a 4kW heater and standard 12V light. The ideal choice when looking for a simple, easy to understand, multi-application control system.

It is fully compatible with all types of spas including larger sized spas. All spa configurations are supported including a variety of add-ons.

It supports 7 configurable outputs (equipped with 7 relays, hence the number 7 in its YT-7)

Therefore manage up to 7 pumps and/or blowers, knowing that a two-speed pump needs 2 relays / outputs. 29 different configurations are possible, up to:

  • 3 dual-speed pumps, or 1 dual-speed pump and 4 single-speed pumps, or 5 single-speed pumps
  • a circulation pump
  • a blower
  • an ozonator
  • a lighting system
  • an audio system

This high quality, long lasting control box takes into account future compatibility to add-ons, accessories and is constructed with an IPX5 waterproof design and corrosion free enclosure. Quick and easy to install with pre-loaded configuration and in.touch WiFi module compatibility.

  • Solid state water flow detection
  • IPX5 Rated Waterproof
  • Easy Installation
  • Wi-Fi module Compatible
  • Supports 1,2,3 phase input power
  • Integrated temperature probe
  • Protection against overheating
  • Self-Diagnostic
  • Programmable filter cycles
  • AMP, Quick Connect, JJM adaptor connections available

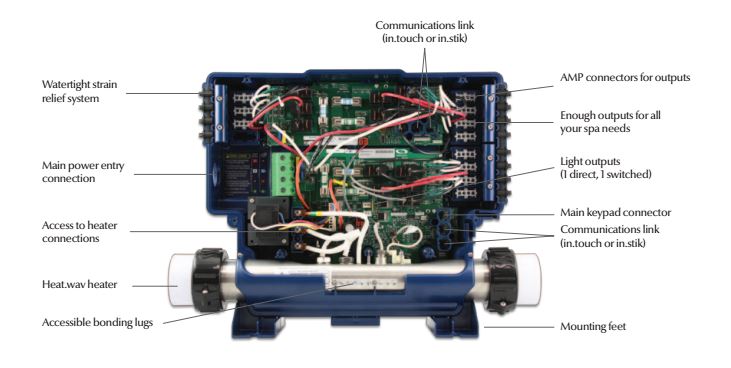

system

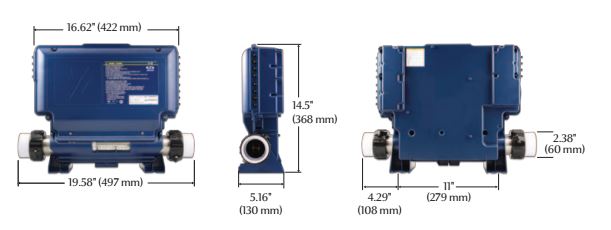

dimensions

It is also compatible with Gecko IN.Grid / Gecko In.Touch 2 Kit & Gecko In.Stream 2 Audio System which allows you introduce a third party heat source such as an air source heat pump. Please contact our tech team for further details!

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable

Icon Label Type Size Download
pdf Yseries Techbook pdf 4.3 MB Download
pdf Yseries Brochure pdf 2.9 MB Download
pdf YT-7 Start Up Guide pdf 268.6 KB Download
pdf Y series and in.xe Start up guide pdf 1.2 MB Download
pdf Y series and in.xe Troubleshooting guid pdf 4.2 MB Download
