SKU
G10388

Hayward Easy Temp Heater

An extended season heat pump with Mitsubishi inverter internals. A lot of pump for the money!
Grouped product items
Product Name SKU MPN Price Qty Stock
Hayward Easy Temp - 7.3kW Hayward Easy Temp - 7.3kW 43229 HAY-150-0196
£2,347.27 £1,956.06
- +
Available for
Back Order
Hayward Easy Temp - 8.9kW Hayward Easy Temp - 8.9kW 43230 HAY-150-0197
£2,610.04 £2,175.03
- +
Available for
Back Order
Hayward Easy Temp - 16.6kW Hayward Easy Temp - 16.6kW 43231 HAY-150-0198
£2,969.46 £2,474.55
- +
Available for
Back Order
Hayward Easy Temp - 17kW Hayward Easy Temp - 17kW 43232 HAY-150-0199
£5,002.19 £4,168.49
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

With over 16 years experience, we select our air source heat pumps (irrespective of price) from reputable manufacturers, chosen for their quality, performance and service backup ensuring you have a product fit for purpose for years to come.

Recent years has seen an influx of inferior models that promise a great deal at a very low cost. The old adage rings true that 'If it sounds too good to be true, it probably is'

Buy Once / Buy Well - It is worth having a read of these links to assist you in making an informed choice.

Air Source Heat Pump Guide.
Installing your Air Source Heat Pump.
Pros and Cons Of Buying an Air Source Heat Pump.
Heating and Ventilation Form, which can be found in the Associated Documents tab, Please complete and return to us and we can tell you which is best for your situation.

Please ring us to help you choose the best suited unit for your application.

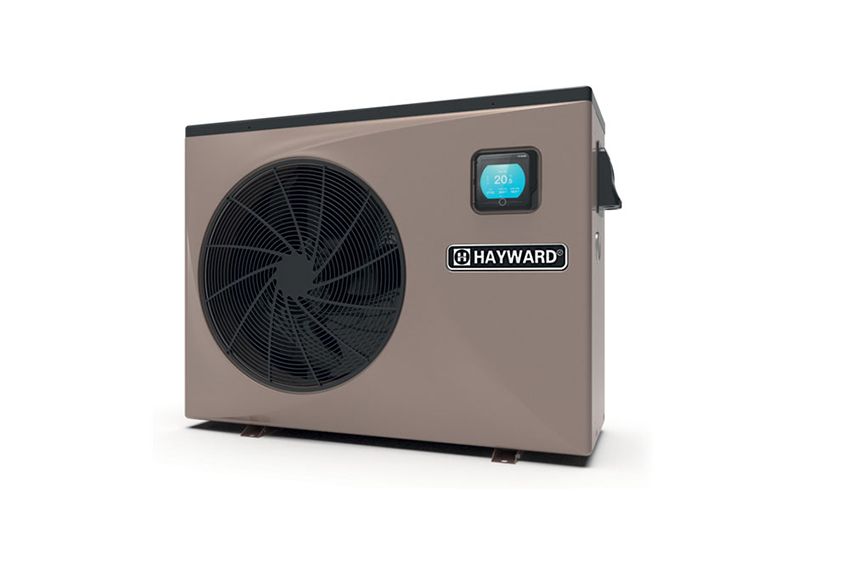

The Hayward Easy Temp Heater

The Hayward Easy Temp Heater is available i 5 models up to: -7°C / COP > 5 / 75 m³.

Hayward a well-known maker of quality pumps and filters have made a heat pump, this extended season (to-5oC) offers inverter technology with the well-earned reputation of Hayward this is a good mid-range pump that's simple to operate and has great build quality. With Mitsubishi inverter internals a lot of pump for the money.

  • The IN-Tech Technology, 100% Inverter for high performance
  • Rapid rise and precise stability of the required temperature
  • Intuitive usage like a smartphone, readable LED screen
  • Quietness: +/-20 dB in regulation mode
  • Remote control with the Smart Temp® as an option
Reference Unit ECPI15MA ECPI20MA ECPI30MA ECPI40MA
Power Supply   220V-240V ~/1ph/50hz 220V-240V ~/1ph/50hz 220V-240V ~/1ph/50hz 220V-240V ~/1ph/50hz
Refrigerant Fluid / R32 R32 R32 R32
Global Warning Potential / 675 675 675 675
Mass of Refrigerant kg 0,350 0,430 0,480 0,72
Mass in tCO2eq / 0,236 0,290 0,324 0,486
Heating Capacity Range(1)
Air 27°C - RH 78% - Water 26°C
kW 1,62- -7,33 2,18- -8,97 1,97- -11,66 2,85- -17,06
Electrical Power Input(1) kW 0,15- -1,17 0,17- -1,54 0,16- -1,99 0,26- -3,13
Input Current(1) A 1,15- -5,32 1,27- -6,91 1,08- -8,96 1,41- -13,96
COP(1) / 11,04- -6,30 12,77- -5,81 12,57- -5,84 11,08- -5,45
Average Heating Capacity(1)
Air 27°C - Hr 78% - Water 26%
kW 5,50 6,02 6,34 9,95
COP(1) / 8,02 8,61 8,79 8,00
Heating Capacity Range(2)
Air 15°C - Hr 71% - Water 26°C
kW 1,44- -5,36 1,58- -6,94 1,79- -8,62 2,74- -13,08
Electric Power Input(2) kW 0,24- -1,14 0,27- -1,53 0,290- -1,90 0,428- -2,97
COP(2) / 5,98- -4,69 5,82- -4,53 6,17- -4,52 6,40- -4,40
Average Heating Capacity (2)
Air 15°C - Hr 71% - Water 26°C
kW 3,72 4,62 4,90 7,40
COP(2) / 5,23 5,51 6,01 5,87
Nominal Flow Rate m³/h 3,10 3,80 4,90 7,30
Hydraulic Connection Supplied mm 50 50 50 50
Sound Pressure Level @1m dB(A) 35 43 43 46
Sound Pressure Level @10m dB(A) 18 25 25 29
Type of Fans   DC Inverter DC Inverter DC Inverter DC Inverter
Number of Fans   1 1 1 1
Type of Compressor   Mitsubishi TWIN ROTARY
DC Inverter
Mitsubishi TWIN ROTARY
DC Inverter
Mitsubishi TWIN ROTARY
DC Inverter
Highly ROTARY DC Inverter
Reversible Heat Pump   Yes Yes Yes Yes
Defrost Mode   Reverse Cycle Reverse Cycle Reverse Cycle Reverse Cycle
Silent Mode   Yes Yes Yes Yes
Winter Cover   Yes Yes Yes Yes
Heating Priority Function   Yes Yes Yes Yes
Anti-Vibration Pads   Yes Yes Yes Yes
User Control Box   Led One Touch 2,75" Led One Touch 2,75" Led One Touch 2,75" Led One Touch 2,75"
Net Dimensions of Entire Unit mm 1040X425X615 1040X425X615 1040X425X615 1130X460X780
Weight kg 42 45 46 60
Recommended Pool Volume* 25 35 50 70
