SKU
G10407

HeatSeeker Inverter Heat Pumps

The new 2020 HSI Range made with the same level of reliability and support associated with Plastica.
Grouped product items
Product Name SKU MPN Price Qty Stock

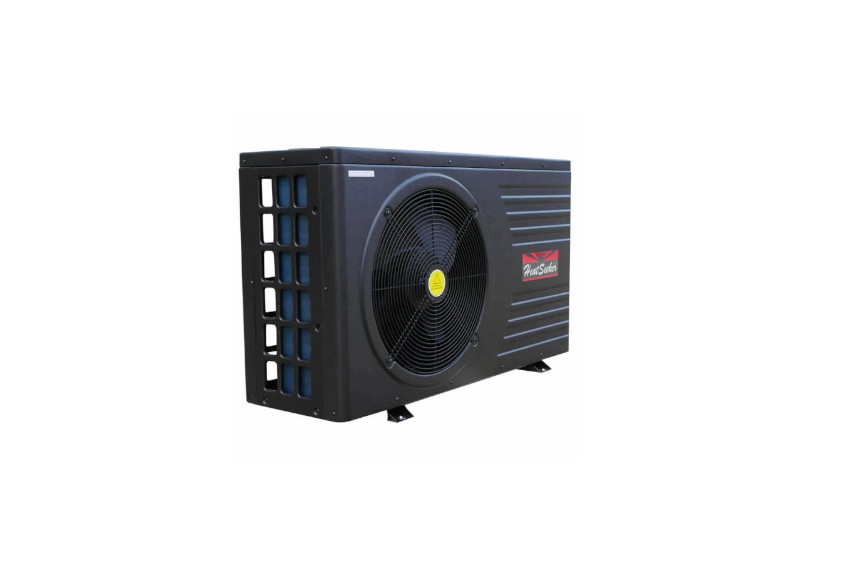

12.5kW Inverter Heat Pump 12.5kW Inverter Heat Pump 43308 HSI125
£2,447.58 £2,039.65
- +
Available for
Back Order

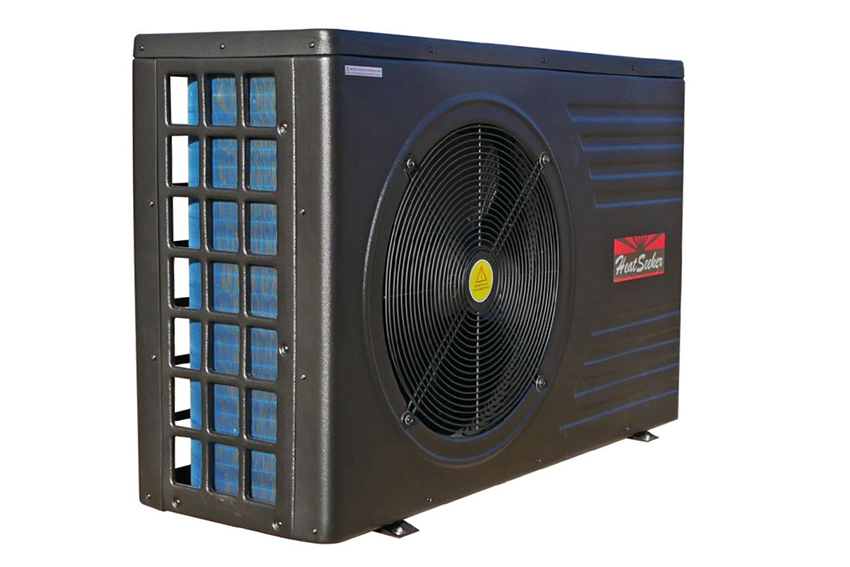

17kW Inverter Heat Pump 17kW Inverter Heat Pump 43309 HSI170
£3,691.12 £3,075.93
- +
Available for
Back Order

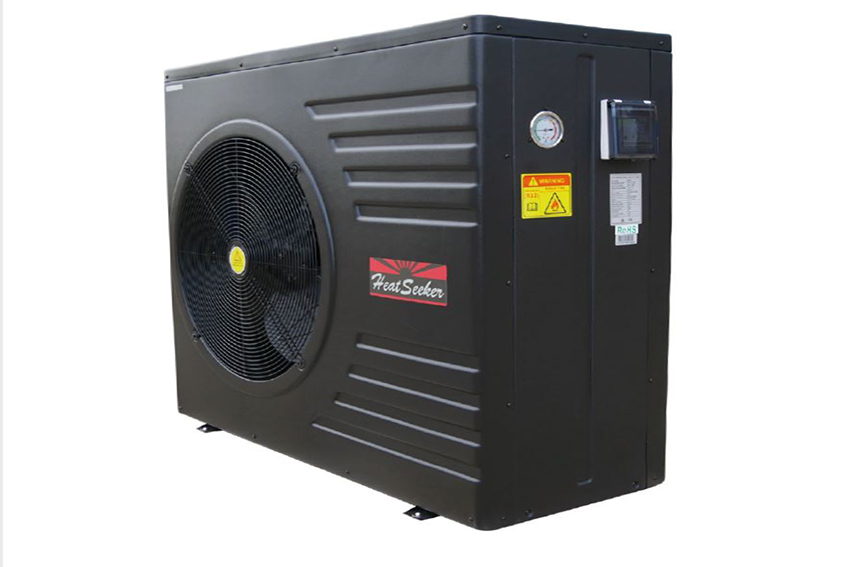

21kW Inverter Heat Pump 21kW Inverter Heat Pump 43310 HSI210
£4,883.22 £4,069.35
- +
1 In stock

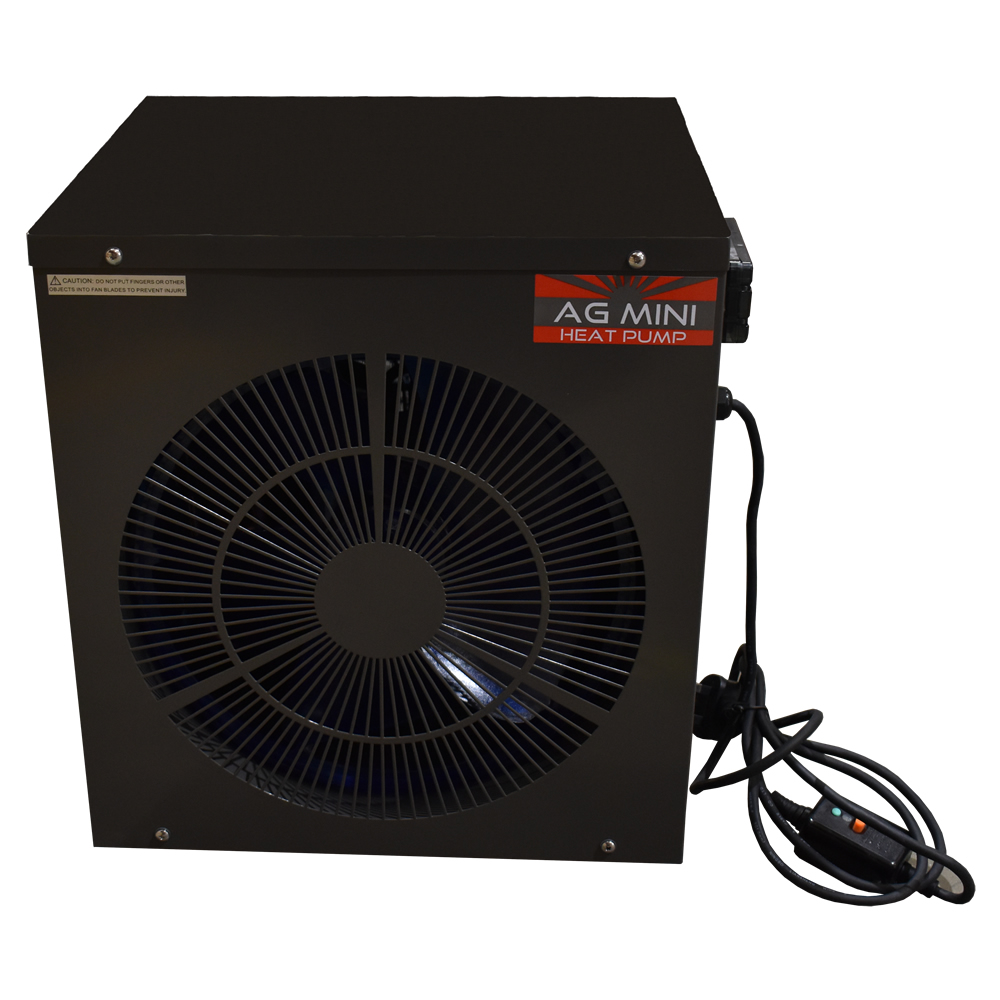

HeatSeeker AG Mini Heat Pump Ideal for Above Ground Pools HeatSeeker AG Mini Heat Pump Ideal for Above Ground Pools 51056
£480.00 £400.00
- +
23 In stock
Add to Wishlist

In-stock orders dispatched:14:00

With over 16 years experience, we select our air source heat pumps (irrespective of price) from reputable manufacturers, chosen for their quality, performance and service backup ensuring you have a product fit for purpose for years to come.

Recent years has seen an influx of inferior models that promise a great deal at a very low cost. The old adage rings true that 'If it sounds too good to be true, it probably is'

Buy Once / Buy Well - It is worth having a read of these links to assist you in making an informed choice.

Air Source Heat Pump Guide.
Installing your Air Source Heat Pump.
Pros and Cons Of Buying an Air Source Heat Pump.
Heating and Ventilation Form, which can be found in the Associated Documents tab, Please complete and return to us and we can tell you which is best for your situation.

Please ring us to help you choose the best suited unit for your application.

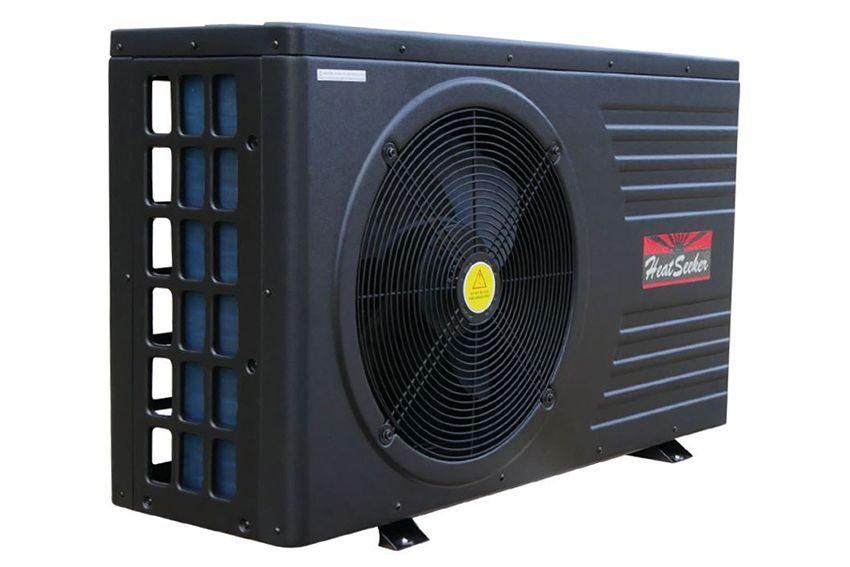

Heatseeker

The new 2020 HSI range of Heatseeker heat pump have been developed to complete at the top end of the heat pump market.

From the same manufacture as the original ''Heatseeker'' you can expect the same level of reliability and support associated with Plastica's well established brand/range.

  • Durable ABS Shell
  • R32 Refrigerant
  • Low start up current
  • No soft start required
  • Ultra quiet operation
  • Simple to use digital controller
  • Quick and easy operation
  • Fully programmable
  • Titanium Heat exchanger
  • HSI078 - 585 Height , 990 (with controller) Width , 320 Depth
  • HSI125 - 620 Height , 1035 (with controller) Width , 330 Depth
  • HSI170 - 715 Height , 1100 (with controller) Width , 380 Depth
  • HSI210 - 955 Height , 1100 (with controller) Width , 420 Depth



Model Voltage Fuse(A) Running Current Noise Net Weight Optimum Flow Rated Heating Capacities Maximum Pool Volume
HSI078 220-240 (1ph) 13 5.5 - 2.6a 52-50-46dB 48kg 3.4m³/h 8.02 - 4.09kW 25m³
HSI125 220-240 (1ph) 16 11.18 - 4.99a 58-47dB 49kg 5.4m³/h 12.64 - 7.86kW 50m³
HSI170 220-240 (1ph) 25 15.41 - 5.15a 58-52dB 64kg 7.3m³/h 16.4 - 7.54kW 70m³
HSI210 220-240 (1ph) 32 17.82 - 7.5a 58-52dB 89kg 9.0m³/h 23.48 - 13.28kW 85m³

The inverter technology increases efficiency, whilst drastically reducing start up current, and will no longer require an additional soft start fitted.



Recommended maximum pool volume for Heatseekers:

The sizing chart assumes that a pool is being heated from May to September, the desired pool temperature is 29°C, the ambient air temperature is not less than 15°C and a heat retention cover is used. Although the HSI Range remains efficient down to 7°C.

Icon Label Type Size Download
pdf Pool Heating and Ventilation Form pdf 89.4 KB Download
